SKU: 45362.1
|
MPN: T3RC6000-LF
New
Teledyne LeCroy T3RC6000-LF AC Current Probe, 6,000A, 1mV/A, .055Hz LF, 6.5MHz HF, 4m, T3RC Series
Regular price
€2.482,63
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.

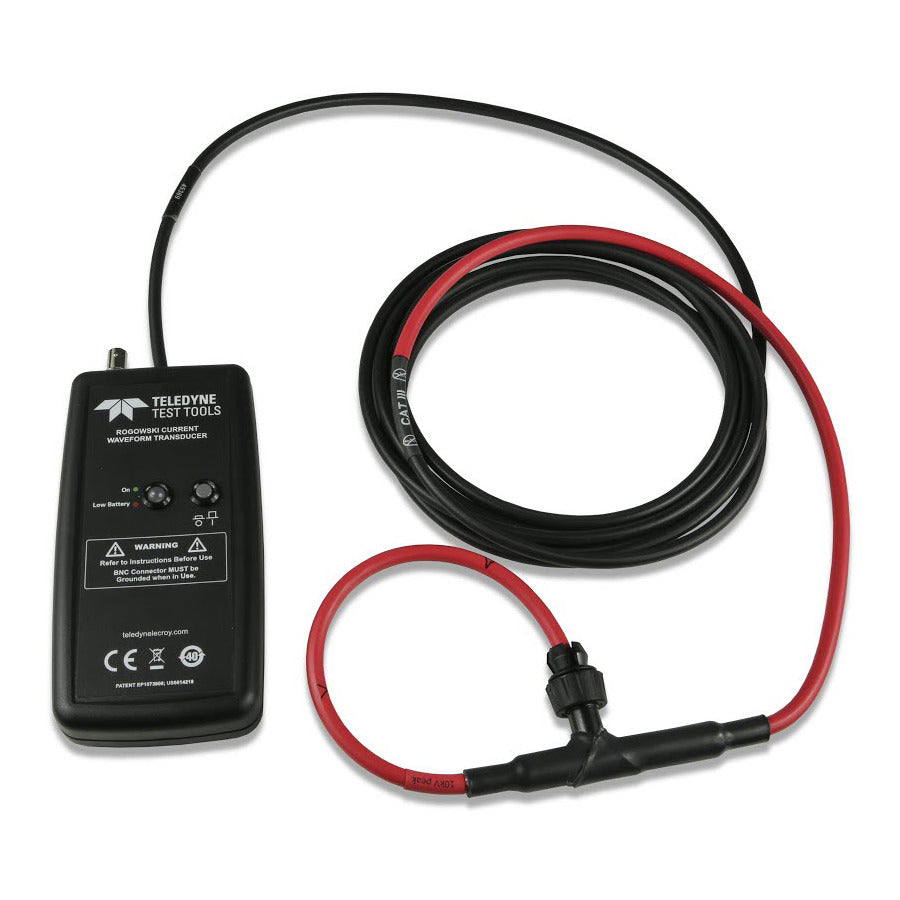

Teledyne LeCroy T3RC6000-LF AC Current Oscilloscope Probe
Features and Specifications- Current: Up to 6000 Amps
- Bandwidth LF: 0.055 Hz
- Bandwidth HF: 6.5 MHz
- Simple to use with flexible probe coils
- Use with batteries or plug in power adaptor
- Low loading of the circuit under test
The T3RC6000-LF Rogowski probe offers an extended low frequency performance down to less than 1 Hz. The low frequency performance means that the maximum droop on low frequency pulses is typically 0.1% / ms or less, whilst offering our highest level of peak insulation of 10 kV and wide operating temperature range of -20
- Set of Batteries
- Power Line Adapter
- BNC Cable
- Storage Box
