SKU: 45358.1
|
MPN: T3RC0300-UM
New

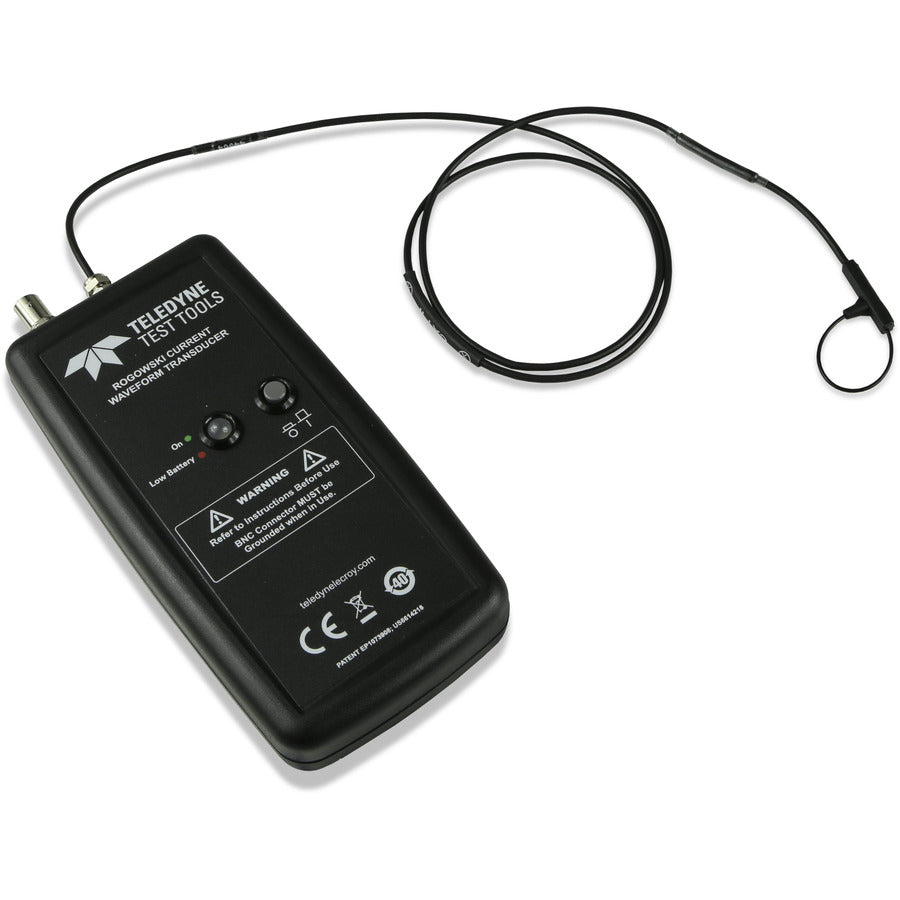

Teledyne LeCroy T3RC0300-UM AC Current Probe, 300A, 20mV/A, 9.2Hz LF, 30MHz HF, 1m, T3RC Series
Regular price
€2.724,84
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.
Teledyne LeCroy T3RC0300-UM AC Current Oscilloscope Probe
Features and Specifications- Current: Up to 300 Amps
- Bandwidth LF: 9.2 Hz
- Bandwidth HF: 30 MHz
- Simple to use with flexible probe coils
- Use with batteries or plug in power adaptor
- Low loading of the circuit under test
The T3RC0300-UM features our smallest cross section sense coil at only 1.7 mm. This ideally lends itself to embedded power applications where it’s necessary to probe around the leg of power components such as inductors, capacitors or small switching devices as small as a TO220 MOSFET.
What's in the Box- Set of Batteries
- Power Line Adapter
- BNC Cable
- Storage Box
