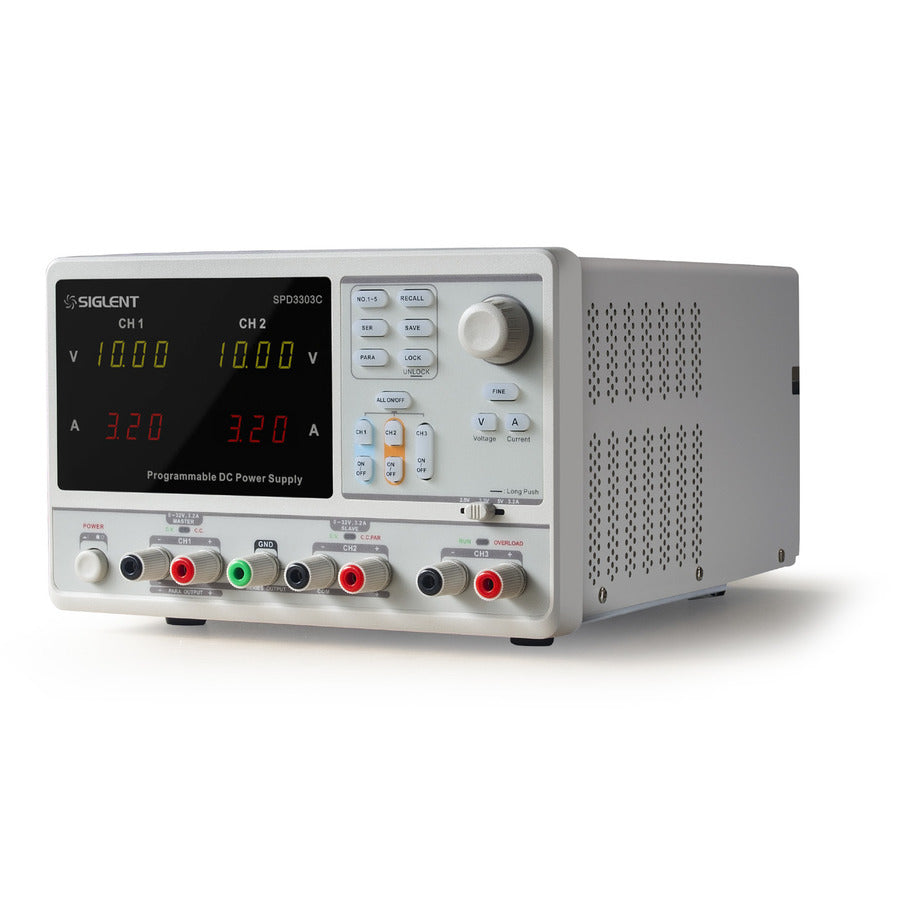

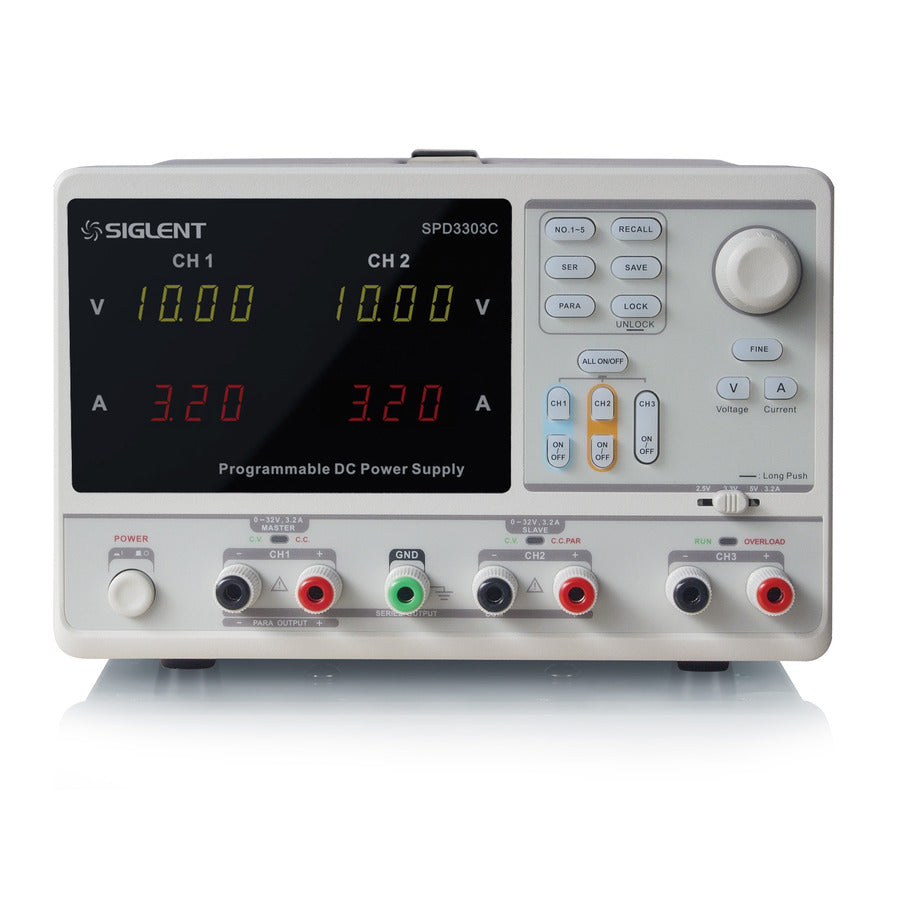

Siglent SPD3303C DC Power Supply, Triple Output, 2x 32V/3.2A, 2.5-5V/3.2A, SPD3303C Series

SPD3303C Programmable DC Power Supply

Features:

• 3 independent controlled and isolated output: 32 V/3.2 A×2, 2.5 V/3.3 V/5 V/3.2 A×1, total power 220W
• 3 output modes: independent, series and parallel
• Resolution: 10 mV/10 mA
• Setting accuracy: Voltage ±(0.5% of reading + 2 digits) Current ±(0.5% of reading + 2 digits)
• Readback accuracy: Voltage ±(0.5% of reading + 2 digits) Current ±(0.5% of reading + 2 digits)
• Supports panel timing output functions
• LED display; 32 V full scale, 4 digits; 3.2 A full scale, 3 digits
• 100 V/120 V/220 V/230 V compatible & meets needs of different power grids
• Intelligent fan for temperature control, reduces noise
• 5 groups of internal system parameter storage. Supports data storage space expansion.
• Supports SCPI commands & USB device interface. Includes PC software.

Standard Accessories:

• USB Cable -1
• Quick Start -1
• Power cord -1
• Certificate of Calibration -1

The SPD3303C is robust and stable, and can accurately simulate even small voltage or current changes, fully meeting the power requirements of the load. It has excellent setting and readback accuracy to ensure accurate and pure output along with support panel programming and timing output. The series-parallel function combines two power supplies into one power supply, which expands the output power range of a single power supply and in turn brings convenience to some applications. The three independent power supplies can individually control the output switch, and they can be turned on or off at the same time.

Applications:

• Debugging in R&D
• Production / Automatic Test
• Quality Control and Test
• Teaching / Education
