Siglent SPD1168X DC Power Supply, Single Output, 16V, 8A, 128W, USB, LAN, SPD1000X Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.

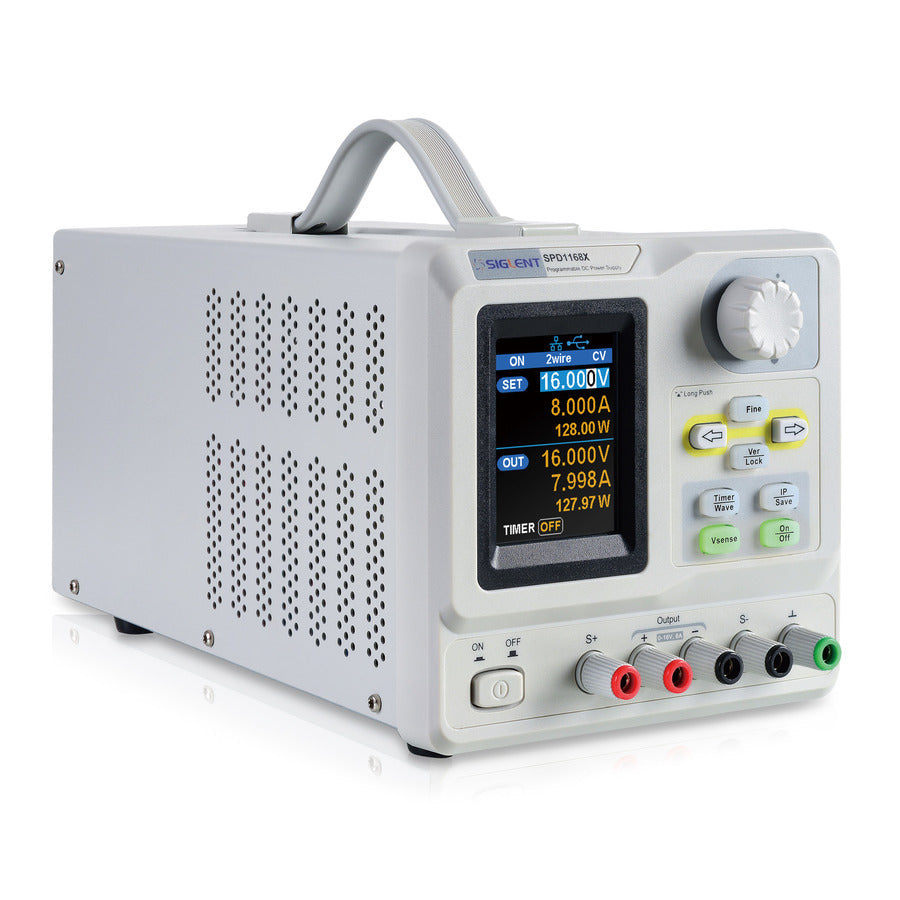

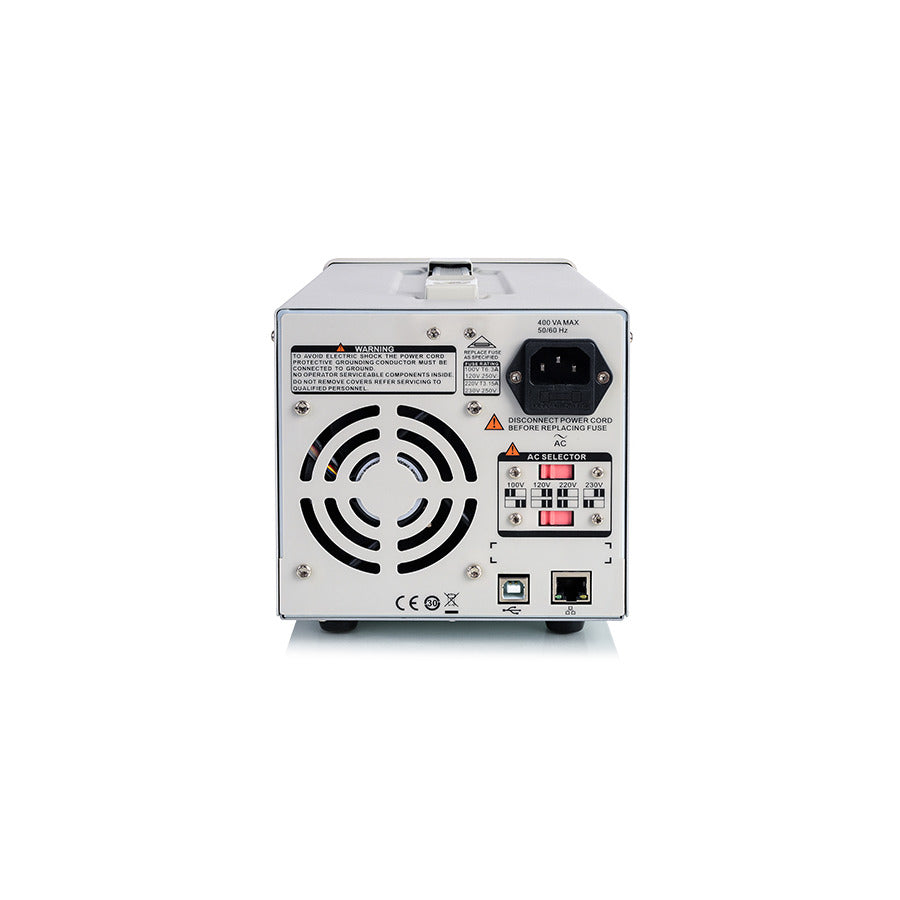

SPD1168X Programmable DC Power Supply
Features:
- 16V / 8A Channel output
- 1mV / 1mA Resolution
- Setting accuracy: Voltage:
± (0.03% of reading+10 mV) Current:± (0. 3% of reading+10 mA) - Readback accuracy: Voltage:
± (0.03% of reading+10 mV) Current:± (0. 3% of reading+10 mA) - Stable, reliable, Low ripple and noise:
≤ 350 uVrms/3 mVpp; < 2 mArms - Fast transient response time: < 50
µ s - Supports front panel timing output functions
- 100/120/220/230 V compatible & meets needs of different power grids
- Internal 5 groups of system parameter save/recall
- Intelligent temperature-controlled fan, reduces noise
- 2.8 in true color TFT-LCD display (240×320)
- USB Device, LAN interface
- PC software: Easypower, supports SCPI, LabView driver
- Locking Key
- 3-year warranty, excluding accessories
Standard Accessories:
- USB Cable -1
- Quick Start -1
- Power cord -1
- Output Test Cord -2 Sets
- Certificate of Calibration -1
SPD1000X Series Programmable Linear DC Power Supply features remote computer control capability, and real time wave display, to deliver high performance and ease of use in a small package. And, it also offers stable performance making it an ideal choice for bench power supplies. Additionally, there are output short and overload protect functions to assist in production and development applications.
