Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
The SDS1000X-E Series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with a minimum vertical input range of 500 uV/div, an digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The series also employs a 256-level intensity grading display function, color temperature display mode and supports multiple powerful triggering modes including serial bus triggering.
The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response.
200 MHz Bandwidth
2 Channels
1 GSa/s Sampling Rate: 2 channel has a single 1 GSa/s ADC
Capture rate: 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Memory depth: 14 Mpts (single-channel); 7 Mpts/CH (dual-channel)
Serial trigger and decoder: I2C, SPI, UART, CAN, LIN
Intelligent trigger
Serial trigger and decoder
Hardware-based Pass/Fail mode
Security Erase mode
USB Host, USB Device, LAN, Pass/Fail, Trigger Out
7 inch TFT–LCD (800 x 480 pixels)
True Measurement to 14 M Points
Measure all sampled data points up to 14 Mpts which ensures the accuracy of measurements while the math co-processor decreases measurement time.
1 M Point Used to Calculate the FFT
The math co-processor enables FFT analysis up to 1M samples per waveform giving a high-frequency resolution with a fast refresh rate. FFT also supports Peaks, Markers, and a variety of numbers and window functions.
Gate and Zoom Measurement
Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics.
Serial Bus Decoding Function (Standard)
Serial decoding is Free in the SDS1202X-E and includes IIC, SPI, UART, CAN, and LIN. The waveform and data can be displayed at the same time and the detailed decoding information is displayed in the form of a list, and the data can be stored and exported.
Front
User Interface
Universal Knob
Function Menus
Run / Stop
Auto Setup
Trigger Control
Horizontal Control
Channel Vertical Control
Probe Compensation
Analog Channel Inputs
USB Host
Function Menu Softkeys
Menu On / Off
Power On / Off

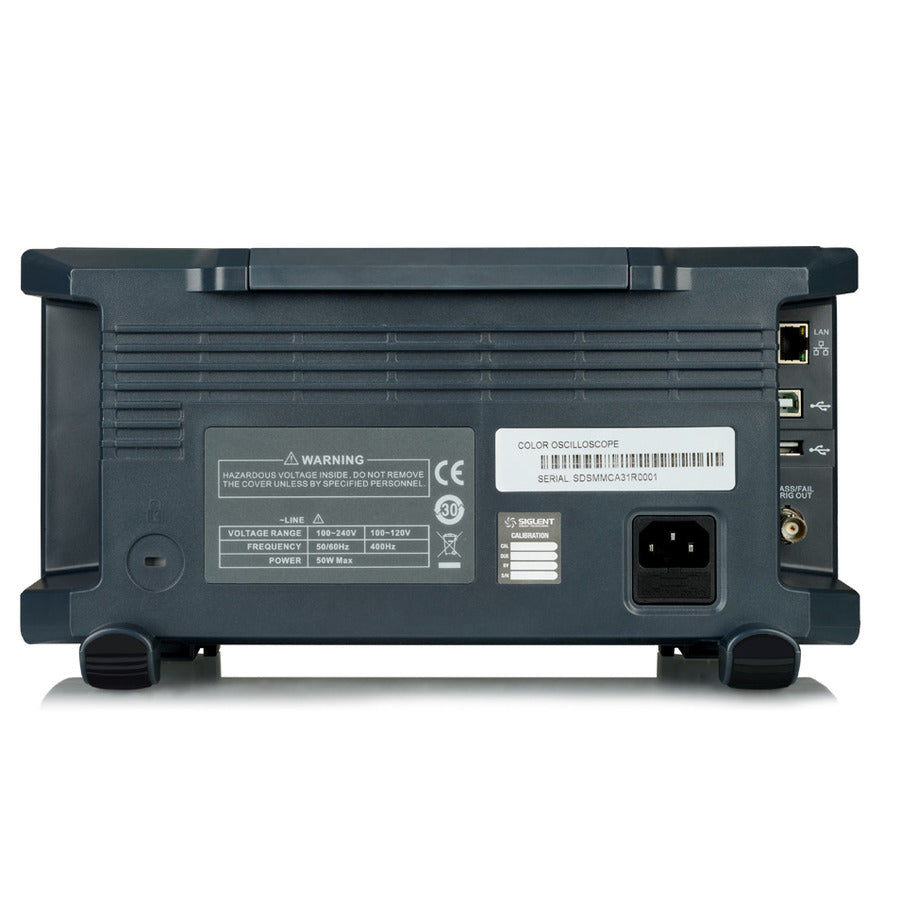

Rear
Handle
Safety Lock Hole
LAN Interface
Pass/Fail or Trig Out Output
USB Device
Feature |
SDS1104X-E |
SDS1204X -E |
SDS1202X-E |
|---|---|---|---|
Bandwidth |
100 MHz |
200 MHz |
200 MHz |
Sampling Rate (Max.) |
Two channel series have a single 1 GSa/s ADC, four channel series have two |
||
Channels |
4 |
4 |
2+EXT |
Memory Depth (Max.) |
7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
||
Waveform Capture Rate (Max.) |
100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
||
Trigger Type |
Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video |
||
Serial Trigger and decoder (Standard) |
IIC, SPI, UART, CAN, LIN |
||
I/O |
USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) |
||
16 Digital Channels |
Yes (option) |
Yes (option) |
No |
Maximum waveform capture rate up to 1 GSa/s, |
|||
USB AWG module |
Yes (option) |
Yes (option) |
No |
One channel, 25 MHz, sample rate of 125 MHz, wave length of |
|||
Bode plot |
Yes |
Yes |
No |
Minimum start frequency of 10 Hz, minimum scan bandwidth of 500 Hz, |
|||
USB WIFI adapter (TL_WN725N) |
Yes (option) |
Yes (option) |
No |
WIFI Software |
Yes (option) |
Yes (option) |
No |
Remote control via web browser |
Yes |
Yes |
No |
SDS1202X-E Oscilloscope
2 Passive Probes (PP215)
USB Cable
Quick Start Guide
Certification (not shown)
Power Cord (not shown)
