SKU: 44918.1
|
MPN: CP6030
New
Siglent CP6030 Current Probes, 50MHz, 50 A, 30 A(rms), 300V CAT1, 12V/1.2 A Adapter, CP Series
Regular price
€2.096,11
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.

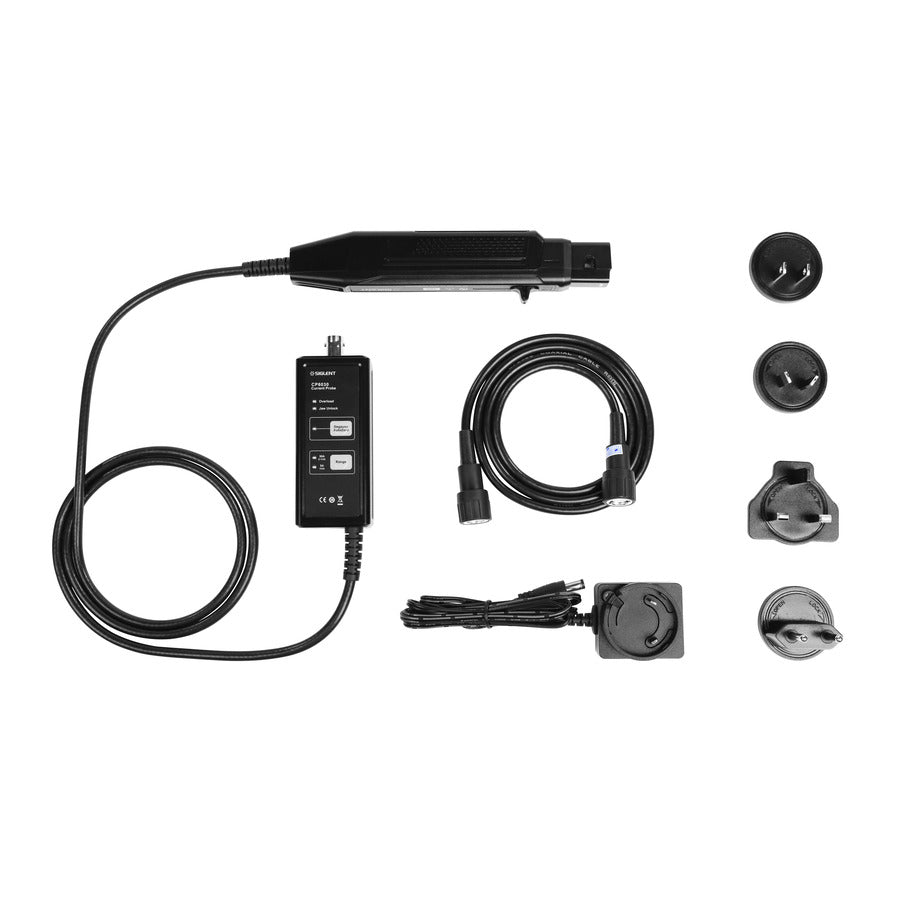

Siglent CP6030 AC/DC Current Oscilloscope Probe
Features and Specifications- Bandwidth: 50 MHz
- Maximum Continuous Current: 30 Arms
- Peak Current: 50 A
- Switching Ratio: 5 A / 30 A
- Accuracy: 5 A (
1% 1 mA); 30 A ( 1% 10 mA) - Power: Standard 12 V / 1.2 A DC Power Adapter (included)
- Over-current protection with dual indicators (buzzer and LED)
- High and low range selection
- Digital set by panel soft push keystroke for a longer service life
The CP6030 current probe is wide band width DC / AC active current probe, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance BNC input.
What's in the Box- 1.2 A DC Power Adapter
