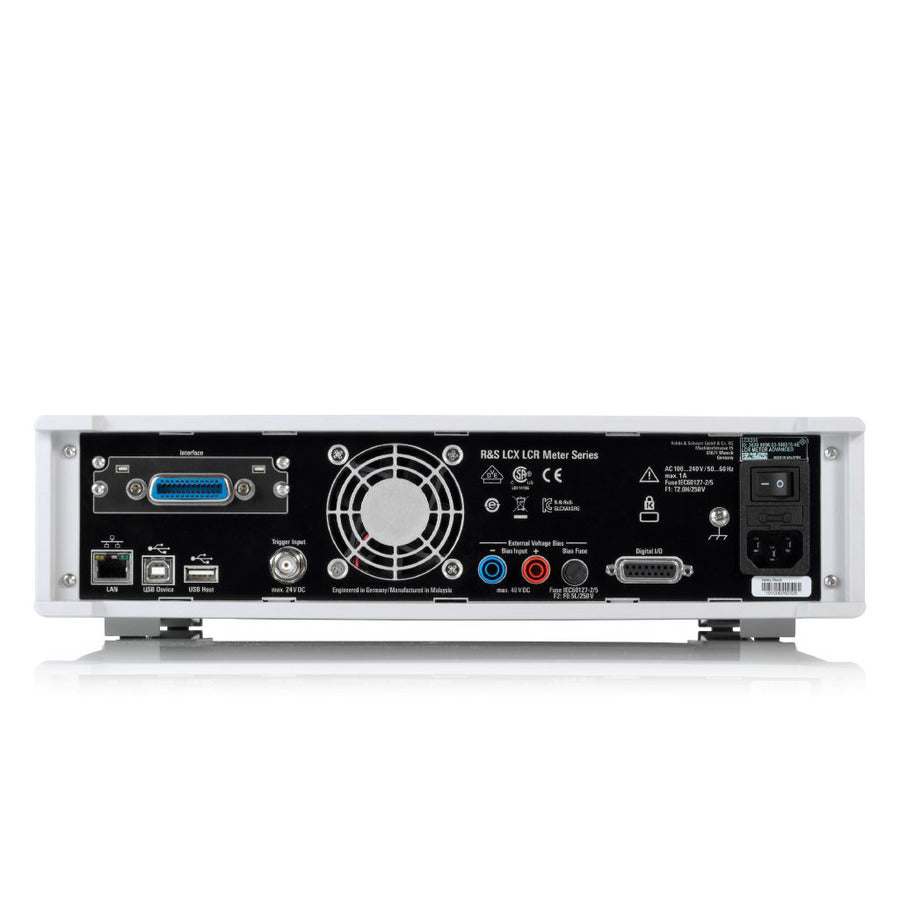

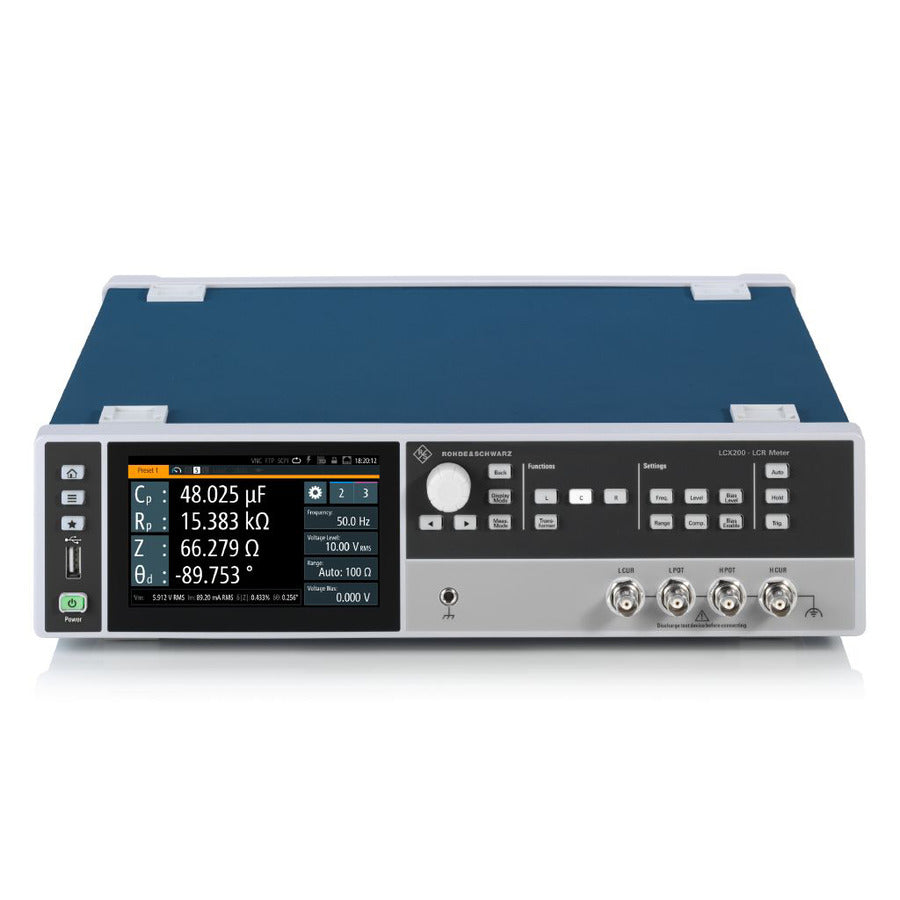

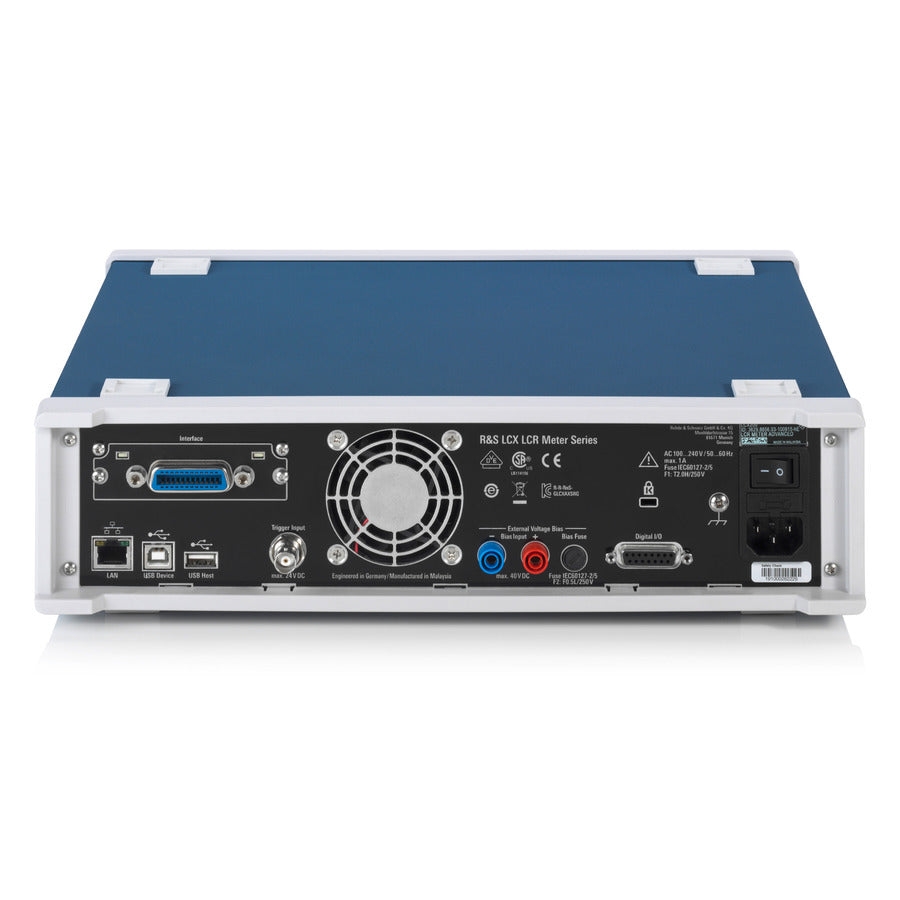

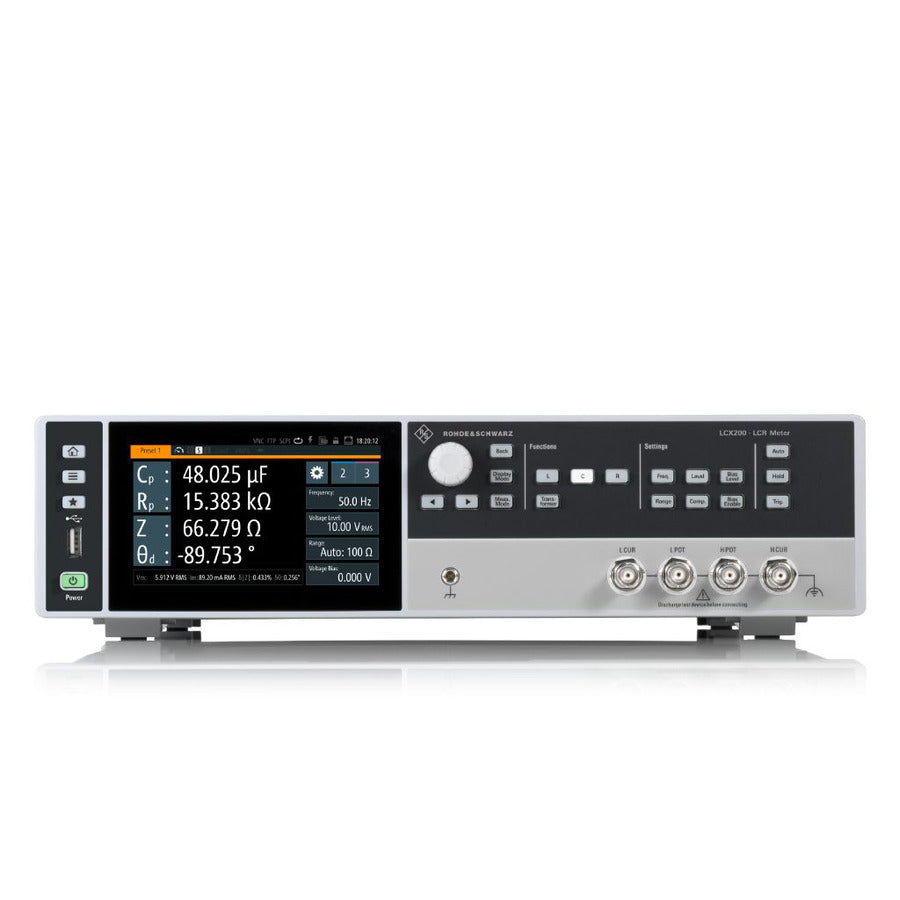

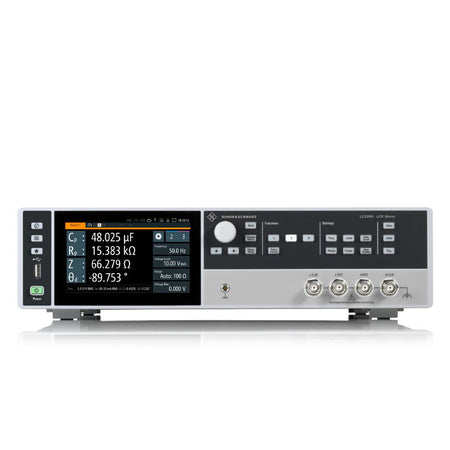

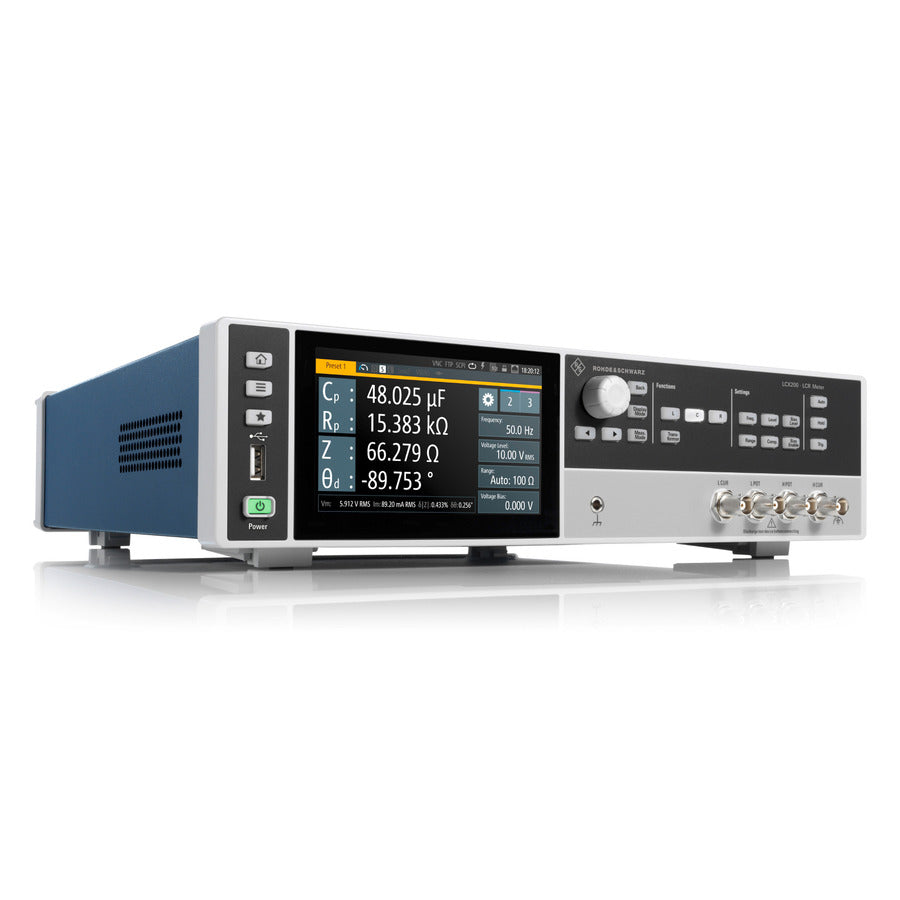

Rohde & Schwarz LCX200COM LCR Meter Pkg, 10 MHz, Advanced Analysis, Binning, Ext Bias, LCX Series
Couldn't load pickup availability
Ask an expert!
Rohde & Schwarz
Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.
LCX200COM LCR Meter Package
Includes:
- R&S LCX-K106 Advanced Analysis Option
- R&S LCX-K107 Binning Option
- R&S LCX-K108 Extended Bias Option
- R&S LCX-K210 Frequency Upgrade 10 MHZ
Features:
- Test signal frequency DC, 4 Hz to 10 MHz
- Test signal voltage, less 1 MHz: 100 mV to 10 V,
> 1 MHz: 100 mV to 2 V - DC bias voltage (internal) 0 V to +10 V
- DC bias current (internal) 0 mA to 200 mA
- External DC bias voltage, input 0 V to +40 V
- Source impedance 100 Ohms, 10 Ohms
- Measurement range 100 milliohms to 100 Megohms
- Basic accuracy for impedance measurements 0.05 %
The LCX LCR meters are versatile, extremely accurate and perform measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixtures expand the wide range of possible applications.
