NetAlly delivers handheld network testing and analysis tools for Wi-Fi, Ethernet, and enterprise connectivity troubleshooting.
The NetAlly LinkRunner AT 1500 is a next generation Ethernet AutoTester purpose built for frontline technicians who demand fast, accurate, and comprehensive validation of copper network links. With its bright 5-inch touchscreen, streamlined workflows, and powerful test automation, the LRAT1500 dramatically reduces troubleshooting time while increasing job confidence and documentation quality.
Whether you’re installing new network drops, diagnosing PoE issues, validating switch configurations, or supporting day-to-day connectivity problems, the LinkRunner AT 1500 equips teams with the essential tools needed for first time right results.
Who Is the LinkRunner AT 1500 For?
The LRAT1500 is ideal for:
If the job involves verifying network performance, validating installation work, or rapidly isolating connectivity issues, the LRAT1500 becomes an indispensable tool.
⚡ 7Second AutoTest for Fast, Repeatable Validation
Automatically verify every critical aspect of a network link, including:
Negotiated and advertised link speed (up to 1G; detects up to 10G)
Duplex settings
802.1X authentication
Switch name, slot, port, VLANs, and LLDP/CDP/EDP info
DHCP, DNS, and gateway responsiveness
PoE loading and voltage (TruePower™ test up to 90W)
Ping/TCP connectivity to user defined targets
All results can be saved, shared, or automatically uploaded to the LinkLive cloud platform.
🔍 Deep Network Visibility—Without Complexity
EZ Wired Test: Instant Link Understanding
The EZ Wired workflow gives technicians immediate visibility into:
Connected switch and port details
VLAN availability
MDI/MDIX connection
PoE voltage, wattage, and onpair power distribution
Link speed/duplex and interface characteristics
It combines the power of AutoTest with a more streamlined view for quick validation and troubleshooting.
🧰 Advanced Cable Testing Built In
The LRAT1500 includes a comprehensive cable diagnostics suite:
Length measurement and distance-to-fault
Detection of opens, shorts, miswires, and split pairs
Wire mapping via built-in port or WireView locators
Patch cable testing with pin-to-pin mapping
Cable location using:
Analog or IntelliTone™ signals
Switch port blink
LLDP/CDP/EDP port advertisement
Whether you’re validating structured cabling or tracking down a mislabeled drop, cable testing is fast and intuitive.
🔌 Reliable PoE Validation up to 90W
Using TruePower™ testing, the LRAT1500 verifies whether PO Enabled switches and injectors deliver the power they claim—under actual load conditions, not just advertised specs. This prevents surprises when deploying power hungry devices like APs, security cameras, and VoIP phones.
☁ Connected Workflows with LinkLive™
When connected to WiFi (via optional USB adapter) or wired Ethernet, the LinkRunner AT 1500 can:
Automatically upload test results
Provide job documentation and proof of performance
Synchronize profiles, comments, images, and test data
Support remote collaboration with engineers (remote control requires AllyCare Premium)
No connectivity on-site? Data buffers locally until a connection is restored.

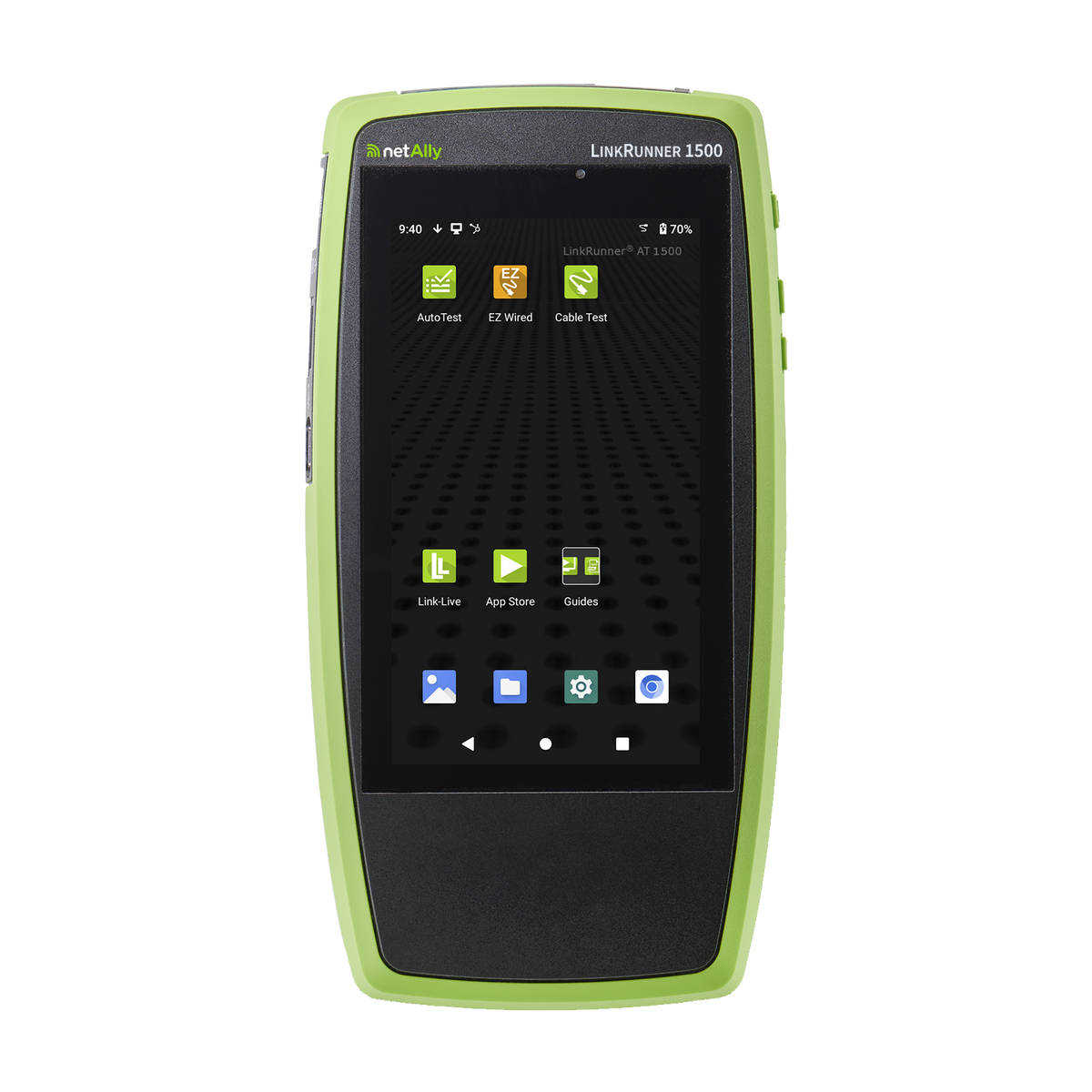

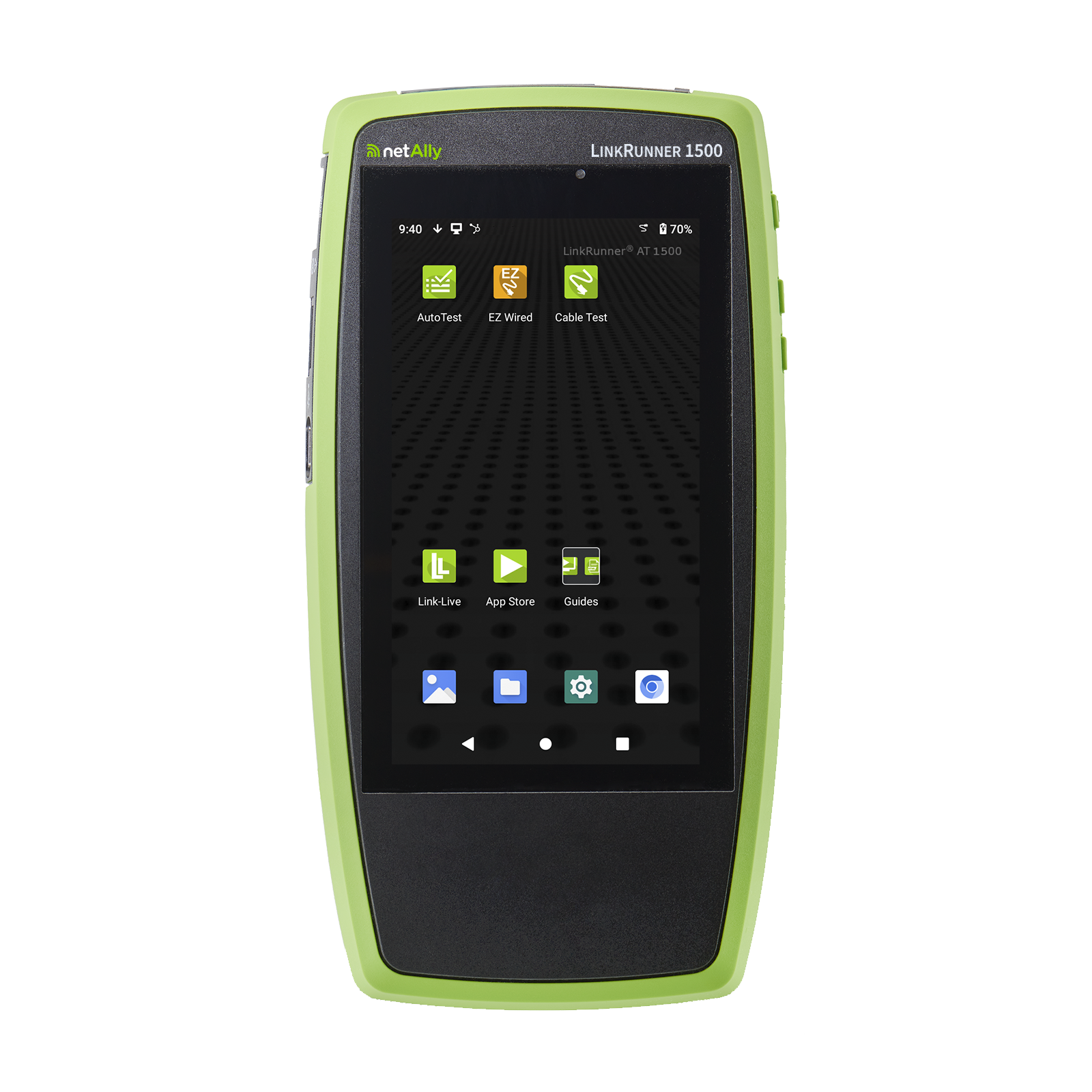

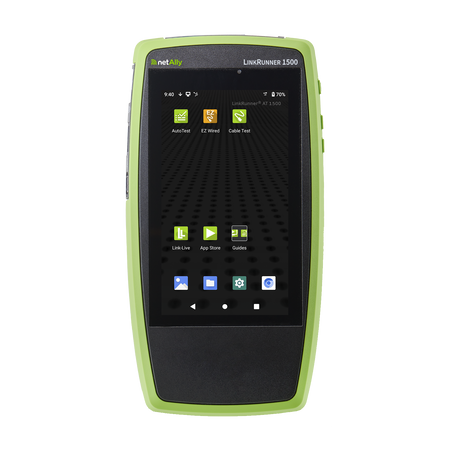

📱 Modern Touchscreen Interface & App Ecosystem
Built on the AllyWare™ platform, technicians can:
Install additional apps for workflows, documentation, browser-based access, or asset capture
Use third-party tools for scanning, labeling, and inventory management
The device behaves like a rugged, purpose-built smart tool for network professionals.
🧳 Rugged, Field Ready Hardware
5" capacitive touchscreen (720×1280)
8hour battery life
MILPRF28800F Class 3 durability
USBA and USBC ports
RJ45 test port + wiremap port
Everything about the LRAT1500 is built to withstand demanding installation environments while remaining easy to operate with one hand.
Why Choose the LRAT1500?
Fast ROI through faster troubleshooting and fewer escalations
Consistent testing across teams with AutoTest profiles
Full visibility into switch, VLAN, and PoE conditions
Strong cable diagnostics replacing multiple legacy tools
Cloud-enabled documentation for modern workflows
Rugged and trusted by network pros worldwide
