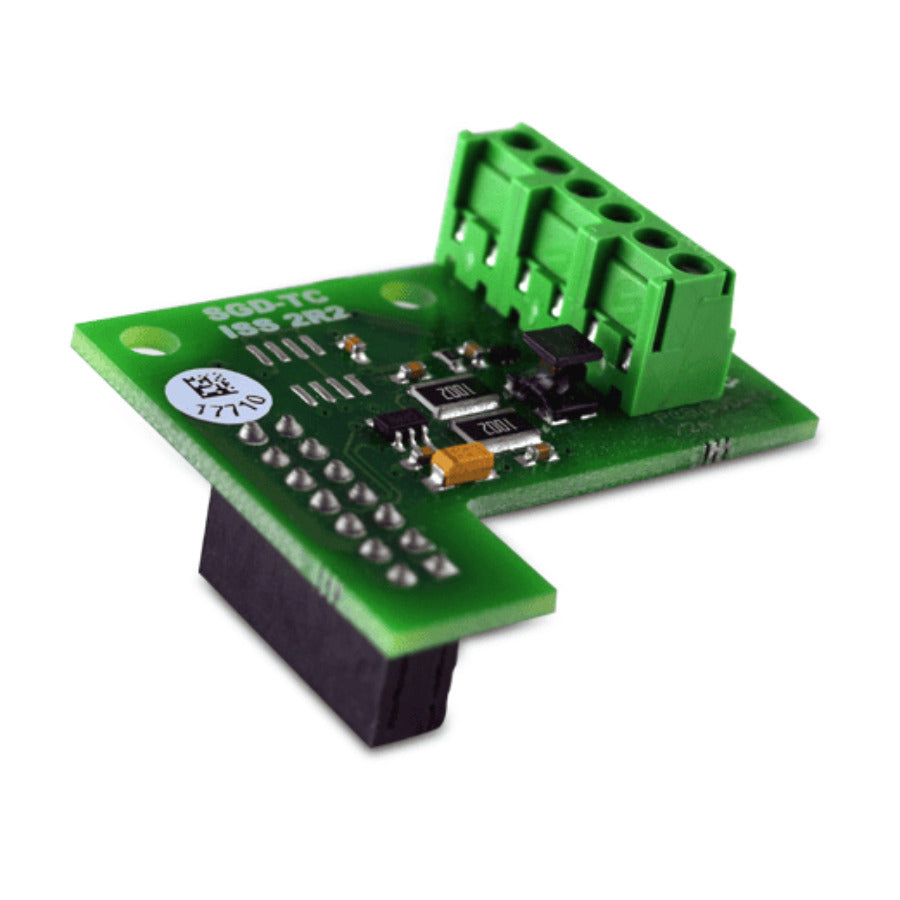

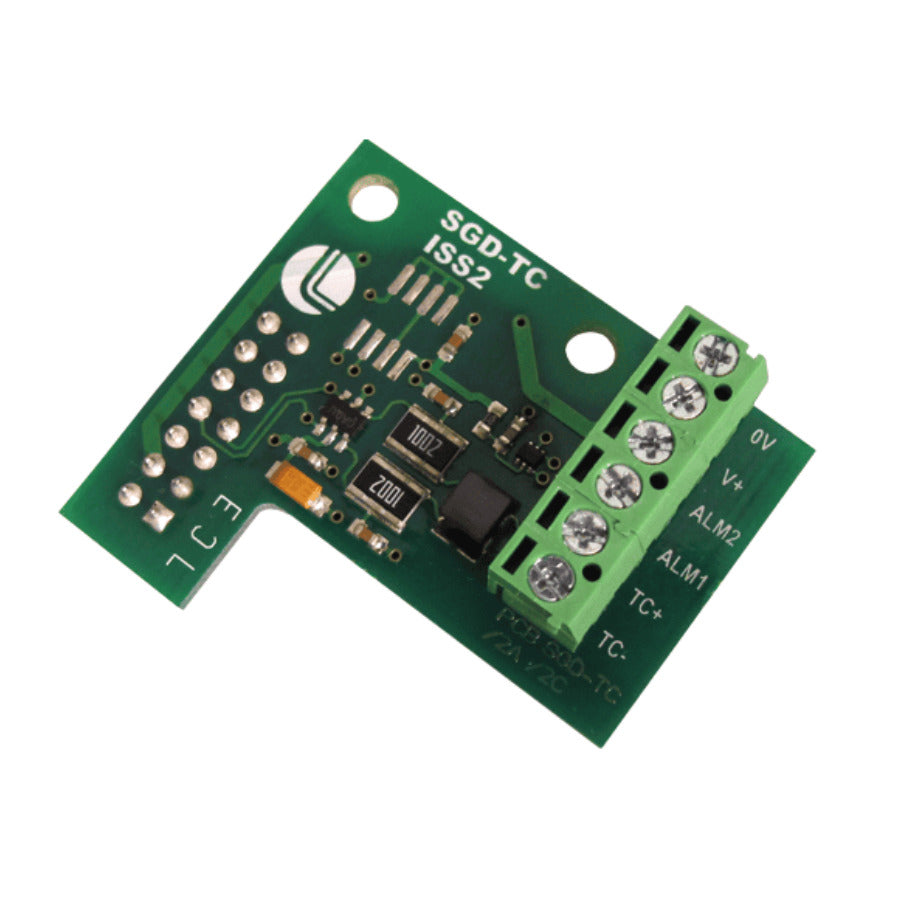

Thermocouple Add-on Board for PanelPilot M series. Supports J, K or T type. TC connection via terminal block
- K-type measurement range -200 to +1350°C (-328 to +2462°F)
- J-type measurement range -200 to +1190°C (-328 to +2174°F)
- T-type measurement range -200 to +390°C (-328 to +734°F)
- Powered from SGD meter
- Application download from PanelPilot website
- User selection of thermocouple type from PC software
- Pre-settable high and low alarms
- Display in either °C or °F

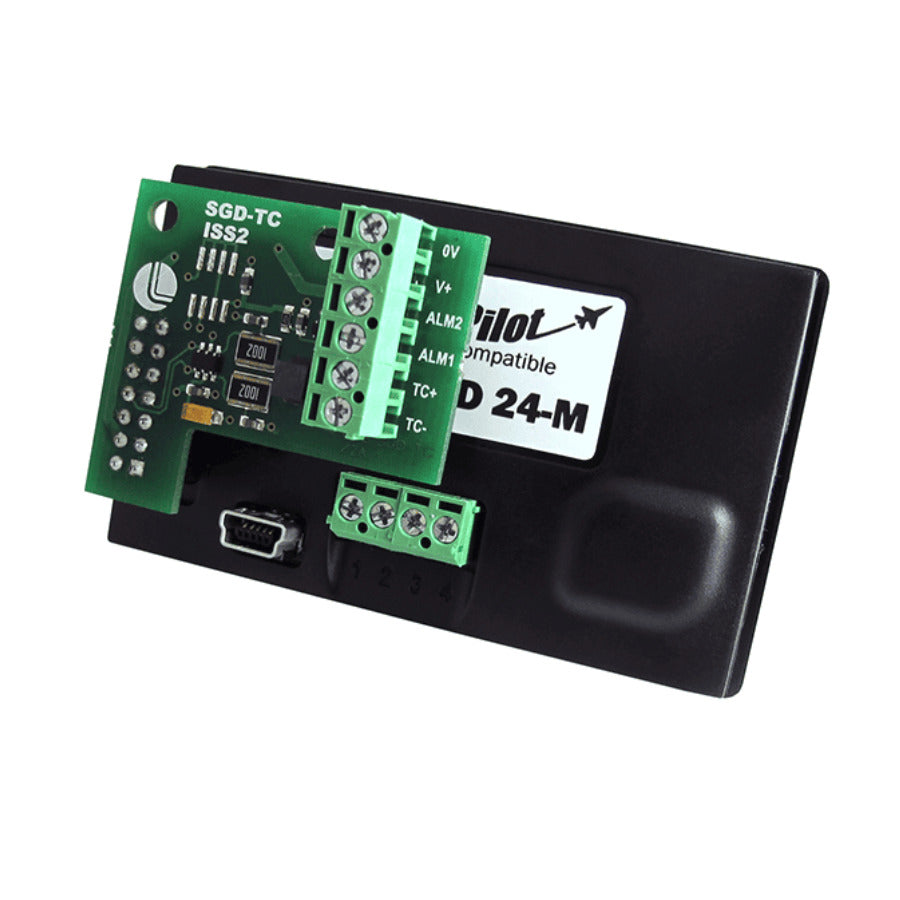

The thermocouple temperature add-on module interfaces directly with compatible PanelPilot M series displays. Any K, J or T-type thermocouple can be connected using screw terminals. It features built-in cold-junction compensation and takes its power directly from the SGD meter.
