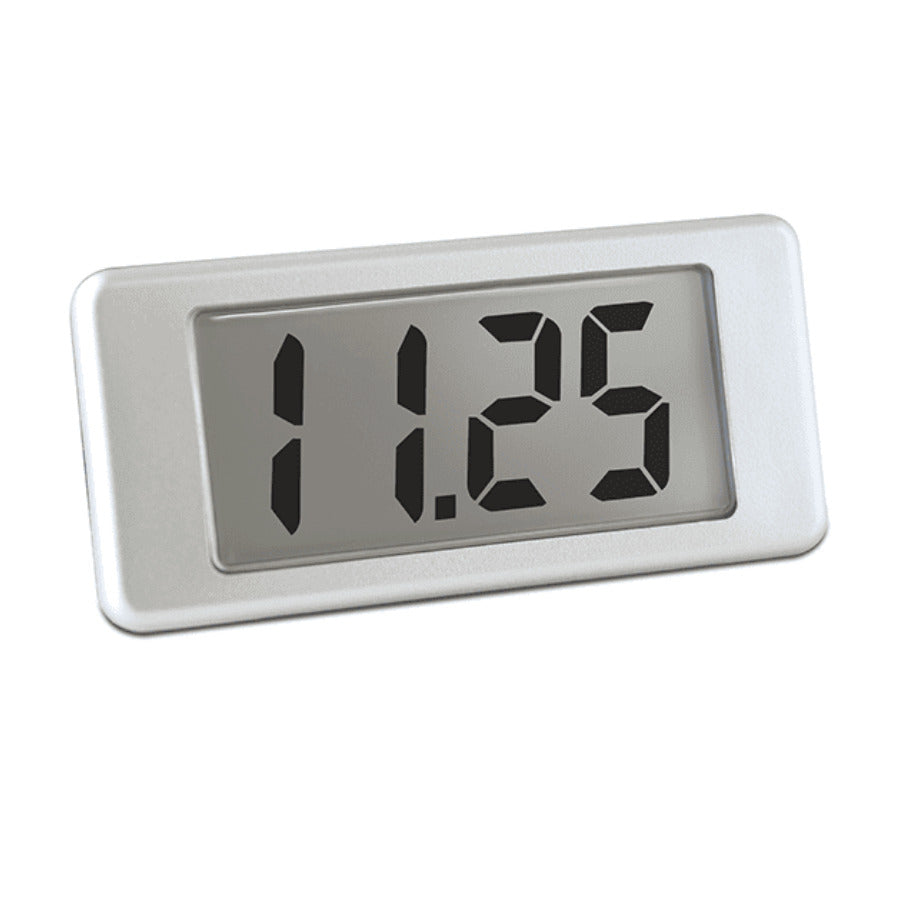

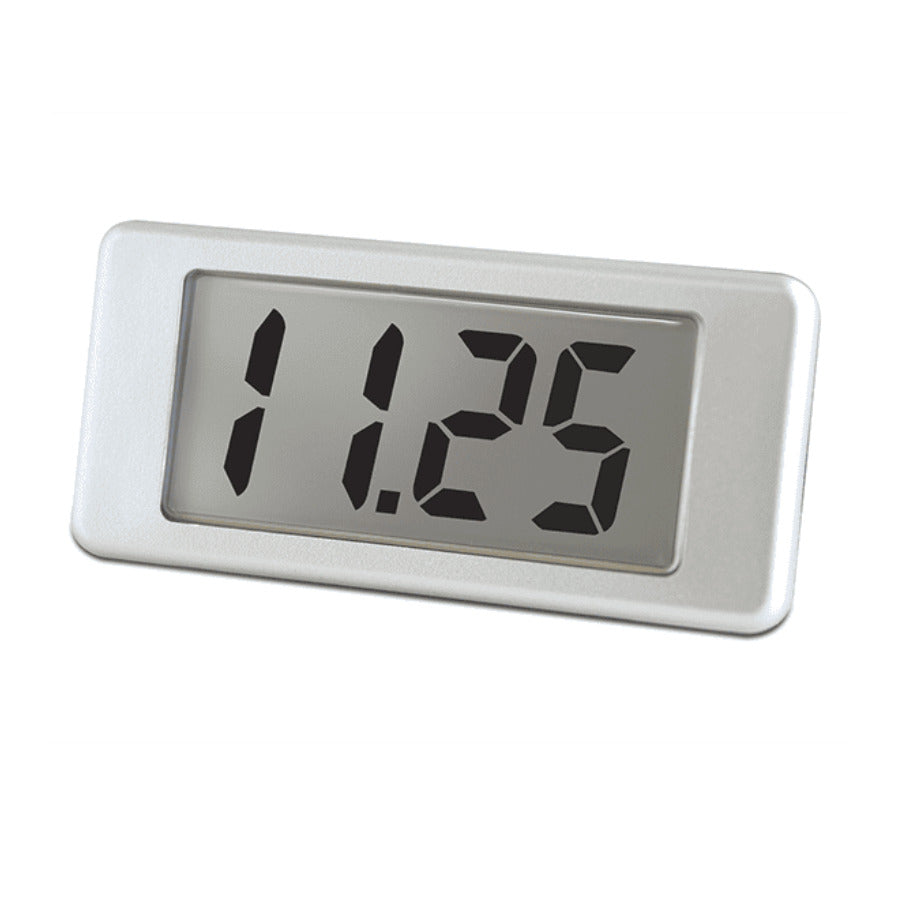

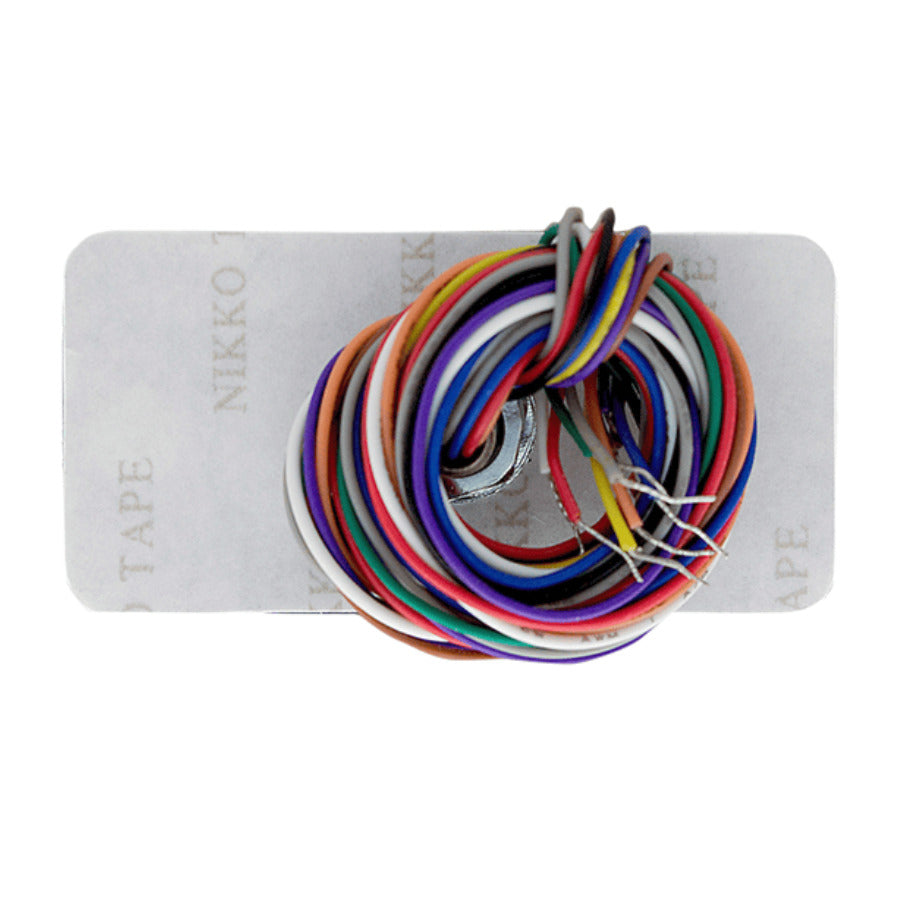

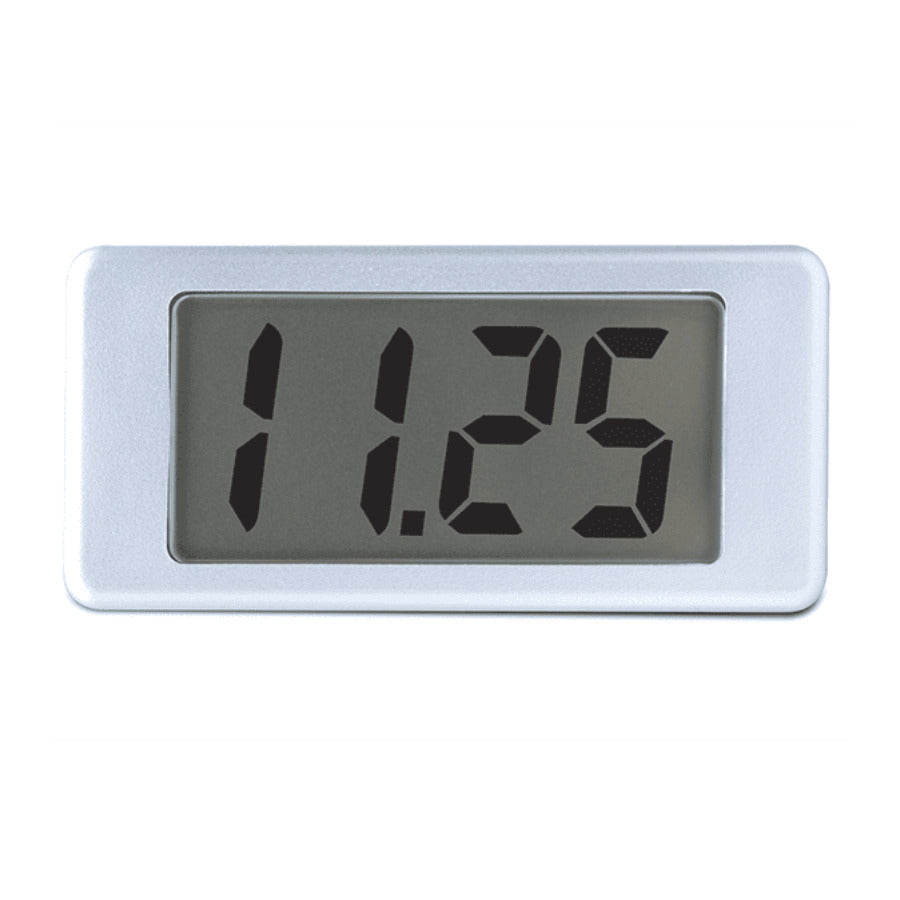

EMV 1125 is an easy to mount LCD digital panel meter. The user need only drill a single 5.5mm / hole in the panel. The module is fitted to the panel by locating its screw threaded stud through the hole, fitting the washer and tightening the nut provided. The module's 10 connecting wires pass through the hollow stud into the target application, where they can be easily soldered into place. The module features 200mV full scale input, auto-zero and auto-polarity. A separate screw terminal adaptor board (T/BLK-4) simplifies connection and calibration. A rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.
