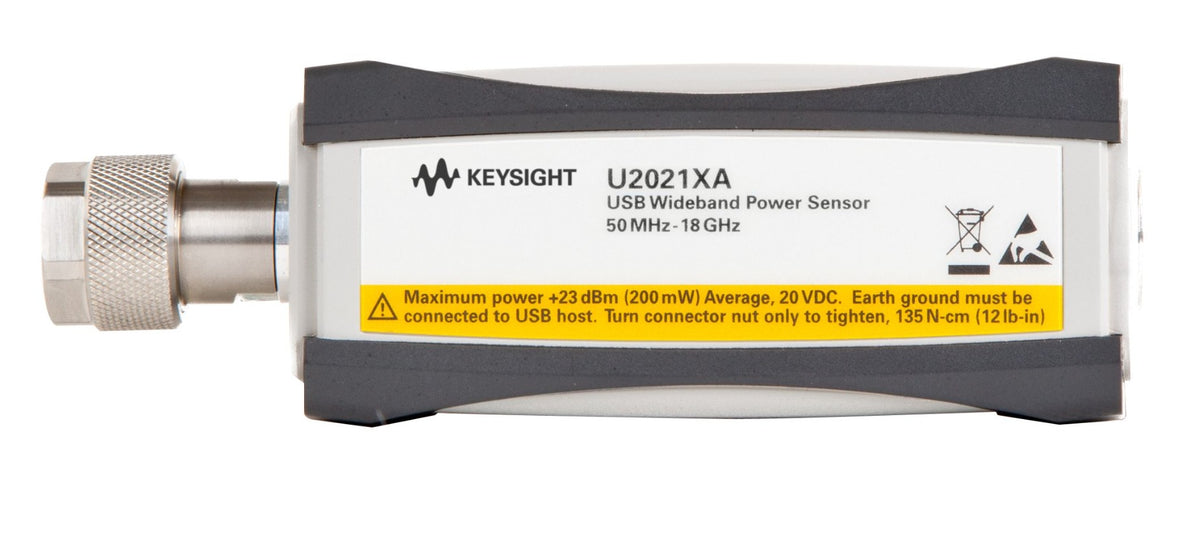

Keysight U2021XA 100 301 USB Peak and Average Power Sensor (10 MHz to 18 GHz)

Request Rental

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

Keysight U2020 X-series USB peak power sensors provide the peak and CW power measurement capability of a power meter in a compact and portable form factor.

  • Frequency range of 50 MHz to 18 GHz
  • Wide dynamic range of -30 to +20 dBm (peak/gated), -45 to +20 dBm (average only mode)
  • 30 MHz video bandwidth and single-shot real-time capture at 80 Msamples per second
  • Internal zeroing & calibration
  • High measurement speed of up to 25,000 readings/second (free run/fast buffer mode)
  • Your instrument can be controlled at no additional cost using the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). This app simplifies instrument connection and control.

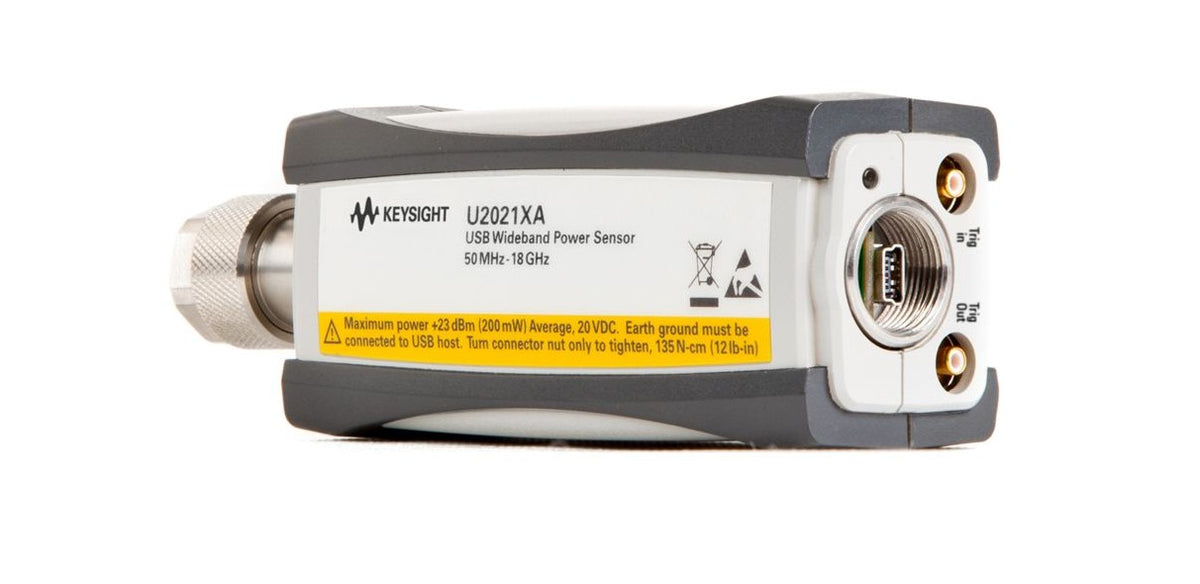

Built in external trigger in and out

An external trigger will enable accurate triggering of small signals close to the signal noise floor. With the built-in trigger in/out connection on the Keysight U2020 X-series USB peak power sensors, you can connect an external trigger signal from a signal source or the device under test directly to the USB sensor through a standard BNC to SMB cable



NOTE: Images for representation only. Instruments may vary based on configurations.
