VMA Vector Modulation Analysis X-Series Measurement Application, Multi-Touch UI
N9054EM0E for VMA digital demodulation N9054EM1E for VMA custom OFDM

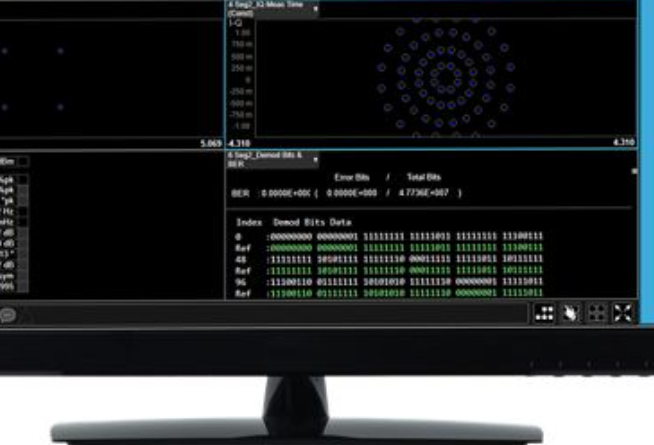

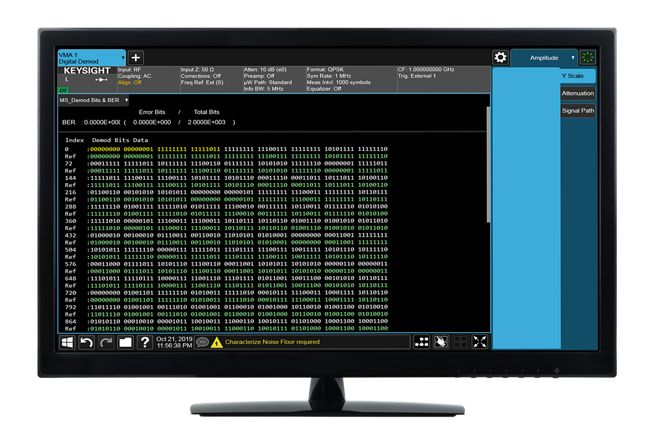

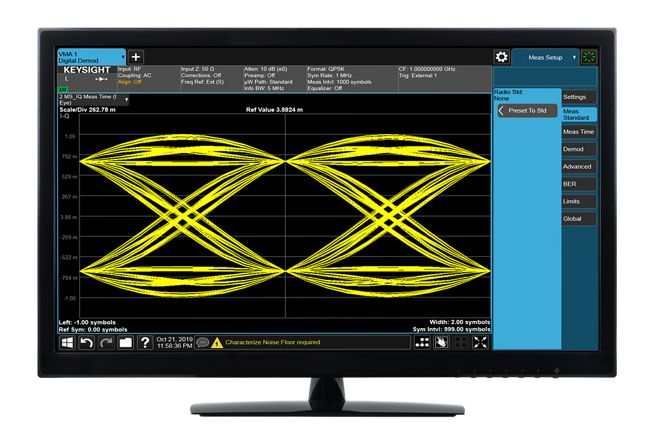

- Perform standard-based and flexible digital demodulation analysis
- Support flexible digital modulation format (2-64FSK, BPSK, QPSK, 8PSK, 16-1024QAM, MSK, ASK, APSK, VSB) with measurement filter, reference filter, symbol rate etc. settings with custom defined test limit and Pass/Fail indicator
- Convenient digital modulation presets for popular formats: NADC, EDGE, PDC, PHS, DVB (16 to 256QAM), DVB-S2/S2X(QPSK, 8PSK, 16 to 256 APSK), WLAN 802.11ay (CB1/CB2/CB3/CB4 with MCS with MCS12), WPAN 802.15.3D TETRA, APCO-25, DMR, dPMR, Wi-SUN (FSK and O-QPSK), DECT, VDL Mode 2, MIL-STD CPM, SOQPSK-TG etc.
- Support flexible custom OFDM with settings FFT size, system sample frequency, Half subcarrier shift, upper/lower subcarriers, resource mapping, equalizer & tracking, filter, and some advanced settings for synchronization
- Convenient Custom OFDM presets for popular formats: 5GTF, 3GPP LTE, WLAN 802.11, Wi-SUN OFDM, DAB (Mode 1/2/3/4), CDR (Tx Mode1 Spectrum Mode 2/9/10), DOCSIS3.1 Downstream and Upstream, DRM (Mode A/B 9K)
- Easily recall 89600 VSA setup files or xSA setup files generated by Signal Studio
- Support spectrum measurements (monitor spectrum, channel power, OBW, CCDF, ACP, SEM and spurious)
- Multi-touch interface and SCPI remote interface
- Built-in, context-sensitive help
- Flexible licensing provides the option of using perpetual or subscription licenses with one or multiple signal analyzers
