Home » All Rentals » Keysight N5242B 080 088 419 S93080B S93088B Win10 PNA-X Microwave Network Analyzer (900 Hz to 26.5 GHz)
Keysight
SKU: 17146.825 | MPN: N5242B 080 088 419 S93080B S93088B Win10
Rental

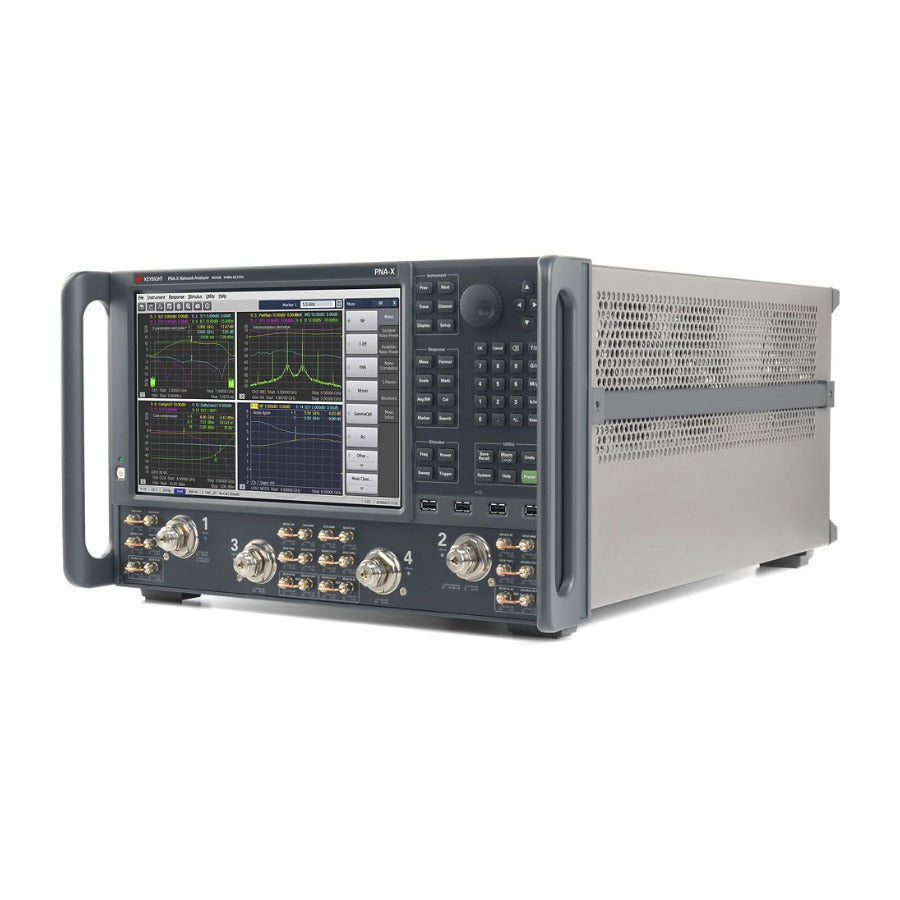

Keysight N5242B 080 088 419 S93080B S93088B Win10 PNA-X Microwave Network Analyzer (900 Hz to 26.5 GHz)

Request Rental

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

Keysight N5242B 080 088 419 S93080B S93088B Win10 Microwave Network Analyzer

Features and Specifications

  • Frequency Range: 10 MHz to 26.5 GHz
  • Display: multitouch color LCD display and intuitive user interface at 1280 (horizontal) X 800 (vertical) resolution
  • Connectivity: USB, LAN

Includes Configurations

  • 080 - Frequency Offset Mode (FOM)
  • 088 - Noise Figure Measurement
  • 419 - 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees
  • S93080B - Frequency-offset measurements
  • S93088B - Source phase control
  • Win10 - Windows 10

The PNA-X network analyzer is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. Including two internal signal sources, S-parameter and noise receivers, pulse modulators and generators, a signal combiner, and set of switches and RF access points, the PNA-X architecture supports a broad range of linear and nonlinear measurements. Replace an entire rack of equipment with a simplified testbed using one PNA-X network analyzer to test your device under test with only a single set of connections.

PNA-X Series Features

  • Three DDS sources with low spurious and very low phase noise, and 6 GHz arbitrary waveform generation
  • Sigle-connection multiple measurement
  • Built-in combiner
  • Switchable rear-panel jumpers provide the flexibility to add signal-conditioning hardware or route additional test equipment to the DUT without moving test cables
  • Phase noise, AM noise, and residual noise measurements
  • Third source for two-tone frequency converter test
  • Modulation distortion analysis: EVM, NPR, ACPR
