Keysight DP0010A Differential Active Probes, 250MHz, 42V, 1.7 Mohm 1.5 pF, DP001xA Series

The Keysight DP0010A is the 250 MHz model of the DP001xA Series differential active probes. These probes provide the superior general-purpose differential signal measurements required for many of today’s high-speed power-related measurements such as motor drives, automotive differential bus measurements, and high-speed digital system designs.

Features

• bandwidth at 250 MHz
• maximum differential measurement range (DC and AC peak): ±42 V
• ±4.2 V on 17:1 auto attenuation ranges
• ±42 V on 85:1 auto attenuation ranges
• input impedance: 1.7 MOhm / 1.5 pF
• cable length: 1.3 meters
• compatible oscilloscopes
• Keysight InfiniiVision 3000T X-, 4000 X-, and 6000 X-Series
• Keysight Infiniium EXR-, MXR-, and S-Series
• Keysight Infiniium UXR-, V-, Z-, Q-, and 90000 X-Series with the use of the Keysight N5442A adapter

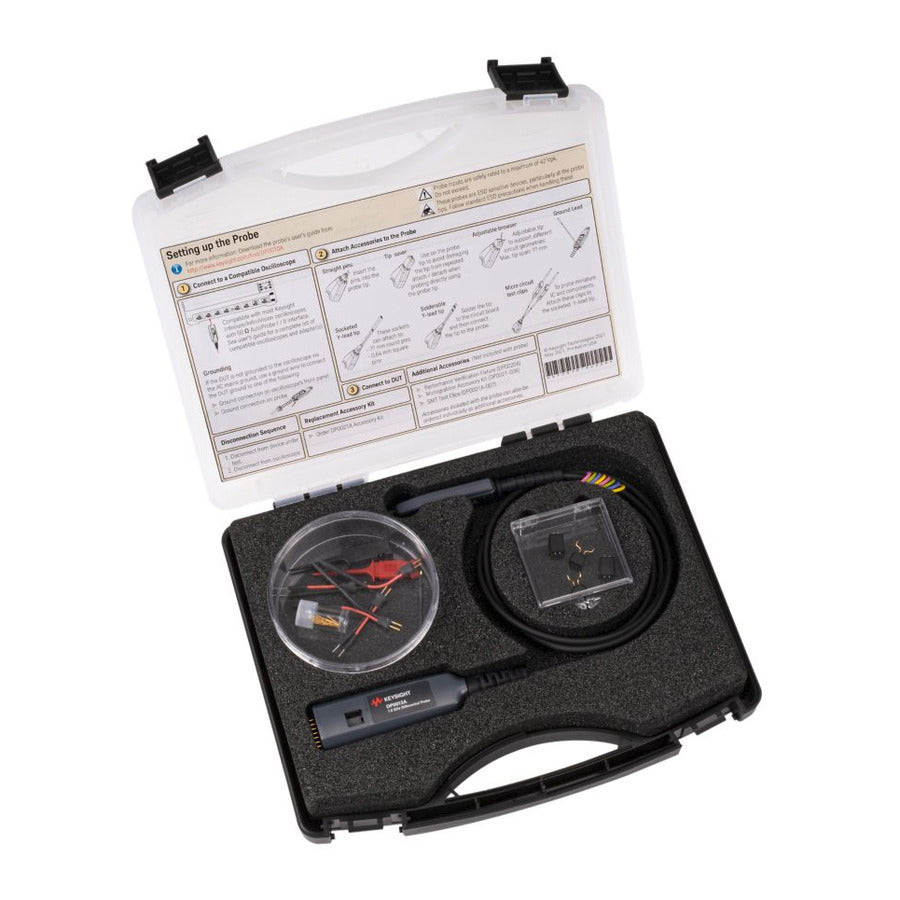

Included with each DP001xA Series differential active probe comes in a hard plastic carrying case and comes with the following standard accessories:

• socketed Y-lead pair (2 pieces)
• solder-in Y-lead pair (2 pieces)
• 90° socketed ground lead (1 piece)
• micro circuit hook test clips (2 pieces)

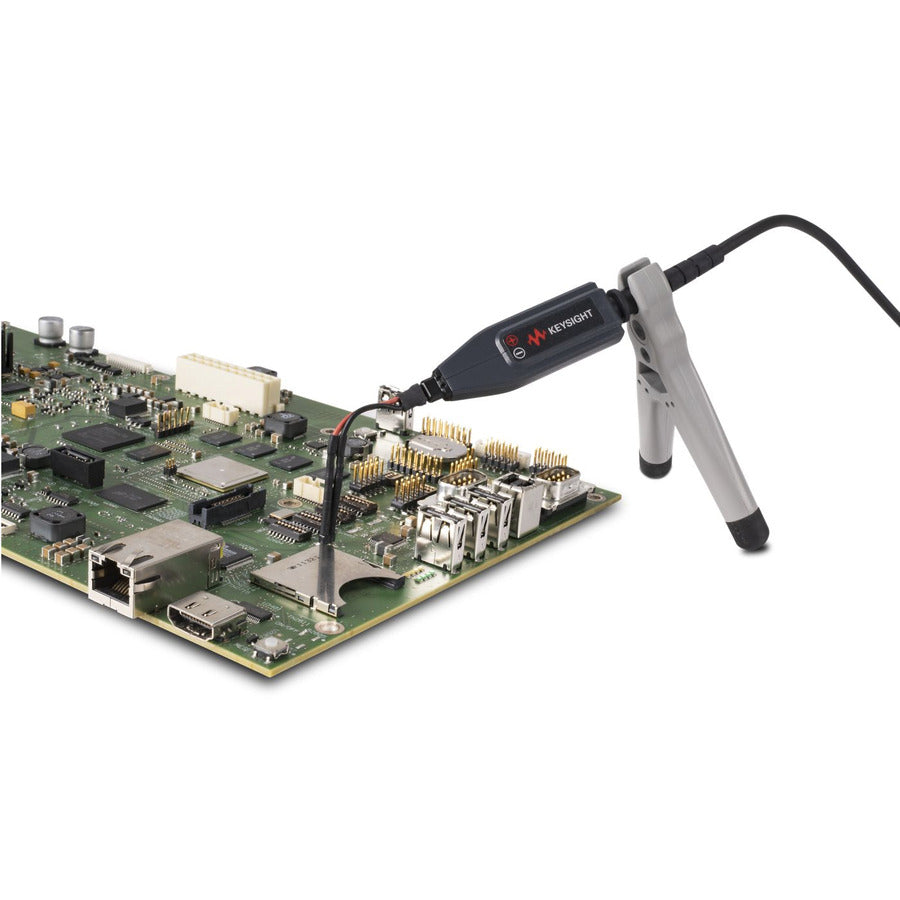

• adjustable probing browser (2 pieces)
• probe tip savers (2 pieces)
• straight pins (10 pieces)
