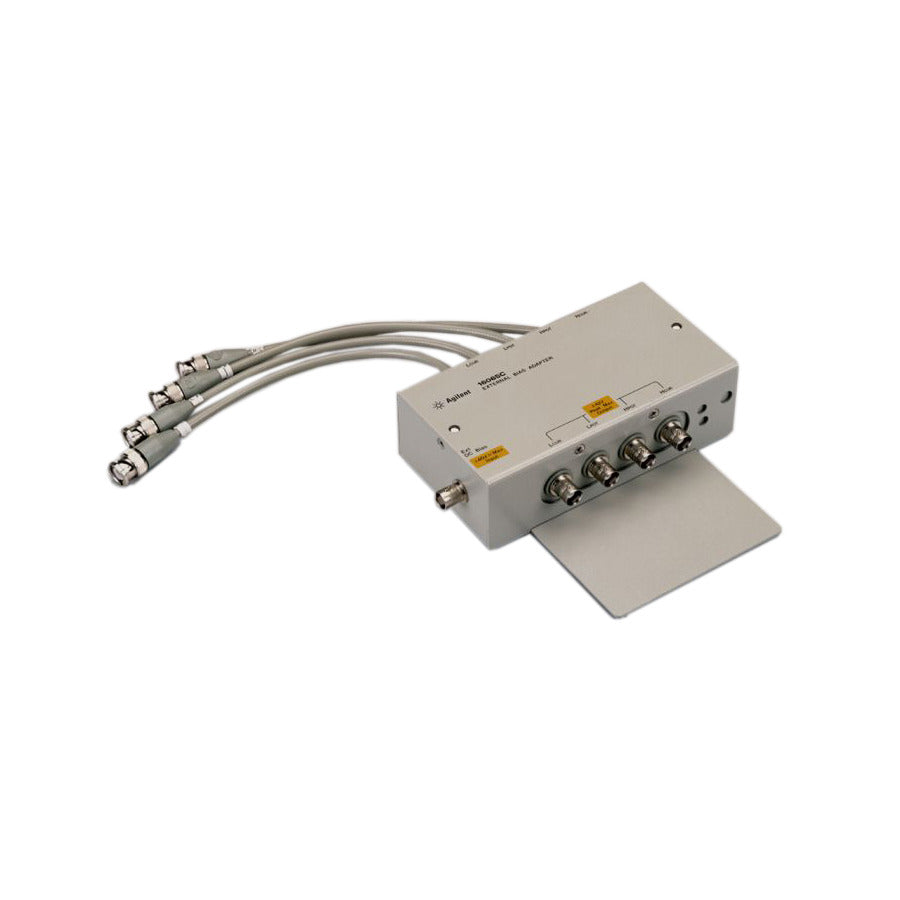

Keysight 16065C External Bias Adapter
Keysight 16065C External Bias Adapter
Keysight
SKU: 16073.1
New

Keysight 16065C External Bias Adapter, 50 Hz-1 MHz, 40V, 4 Terminal-Pair

€1.453,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

16065C 40Vdc External Bias Adapter

Specs:

  • Frequency: 50 Hz to 1 MHz
  • Maximum external dc bias: ±40 V
  • Blocking capacitor of 100 µF is connected in series with the Hc terminal
  • Measurement Instrument: 4263B, 4268A, 4278A
  • Applicable Test Fixture: 16034E/G/H, 16044A, 16047A/C/D/E, 16048A/B/D/E and 16089A/B/C/D/E
  • Operating Temperature: 0 to 55 degrees C (same as for measurement instrument)
  • Terminal Connection: 4 terminal-pair

The 16065C adapter is designed to operate specifically with the 4263A/B, 4268A and 4278A. By connecting an external DC voltage source to this adapter, a bias voltage of up to +/-40V can be supplied to a DUT. The DUT can be inserted by connecting any direct attachment 4 terminal-pair test fixture to the adapter.
