Keysight 11636B Power Divider
Keysight 11636B Power Divider
Keysight
SKU: 15106.2
New

Keysight 11636B Power Divider, DC to 26.5 GHz Frequency Range, 0.5W Max, 11600B Series

€2.323,48
Available for Backorder
Stock expected in 60 days
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight offers industry-leading test and measurement equipment for wireless, aerospace, automotive, and energy. Trusted for accuracy, speed, and innovation.

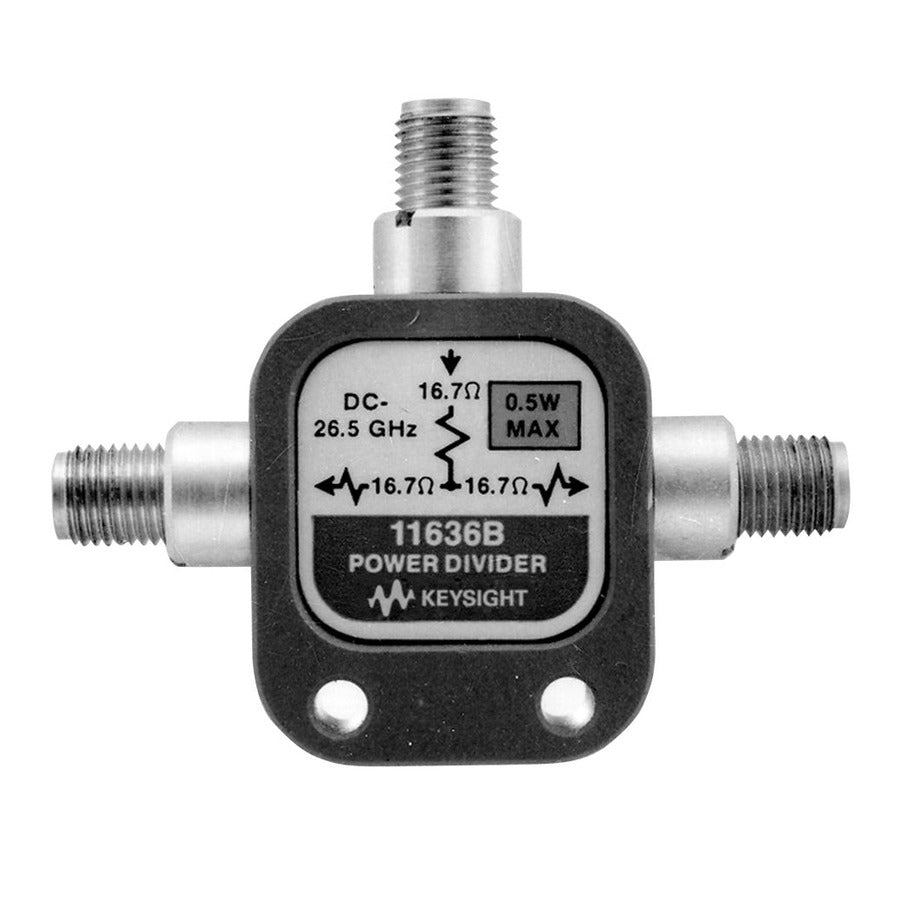

The Keysight 11636B is a dc to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing r -reflections. The Keysight 11636B power divider/combiner is recommended when making wideband comparison measurements with the Keysight 8757 scalar vector network analyzer.

Key Features & Specifications

  • Frequency range: dc to 26.5 GHz
  • Maximum SWR: 1.29
  • Insertion loss: 7.5 dB
  • Maximum amplitude tracking: 0.25 dB at 18 GHz
  • Maximum phase tracking: 2 deg typical
