Keysight 10073D Passive Probe, 500MHz, 10X, 12 pF, 500V, CAT1, CAT2, 1007xC/D Series

Keysight 10073D 10:1 500 MHz Passive Oscilloscope Probe

Features and Specifications

• Bandwidth: 500 MHz
• System risetime (calculated): < 700 ps
• Attenuation Ratio: 10:1
• Input resistance: 2.2 MΩ (when terminated into 1 MOhm)
• Input capacitance: ∼ 12 pF
• Maximum input (dc + peak ac): 500 V CAT I (mains isolated) 300 V CAT II (post receptacle mains)
• Compensation range: 6 - 15 pF

The Keysight 10073D passive probe is our most rugged 500 MHz probe. With a 10:1 attenuation ratio and high 2.2 M ohm input impedance, it is ideal as a general purpose, high bandwidth passive probe for the Keysight 300 MHz - 1 GHz 6000 series, 7000, 8000 and 9000 Series oscilloscopes. The probe identification feature automatically configures the oscilloscope for the probe attenuation.

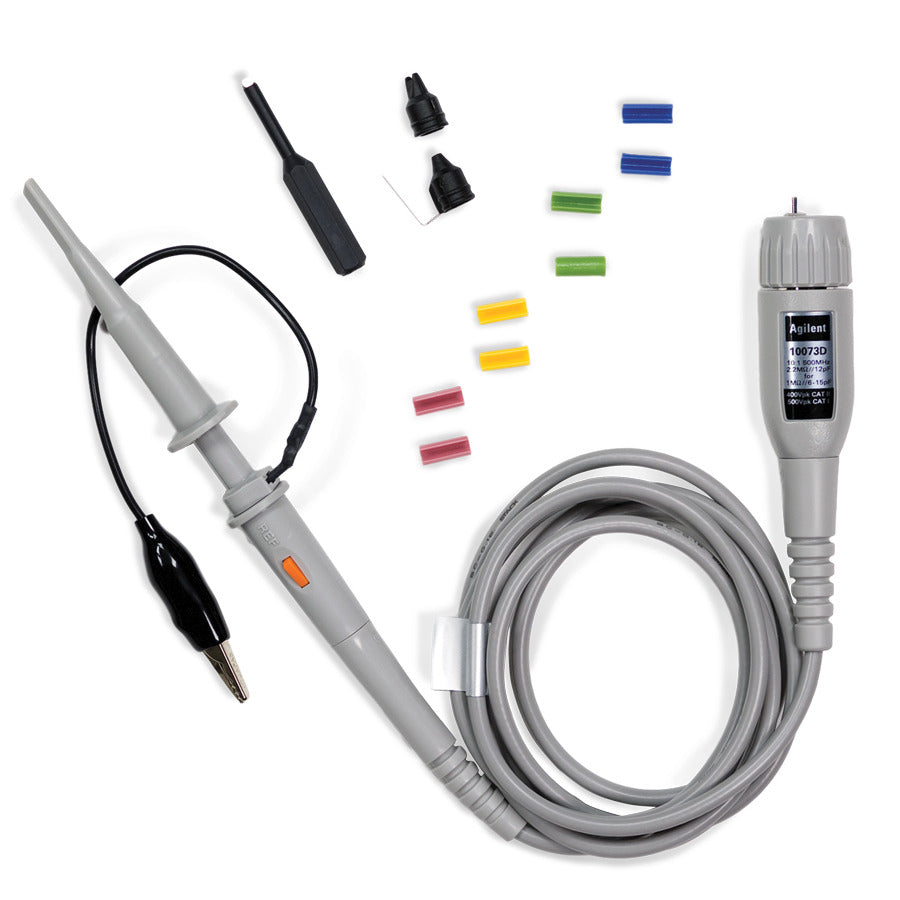

What's in the Box

• Retractable hook tip
• Orange, white, blue and green identification tags
• Ground bayonet
• IC probing tip
• Adjustment tool
• Alligator clip ground lead
