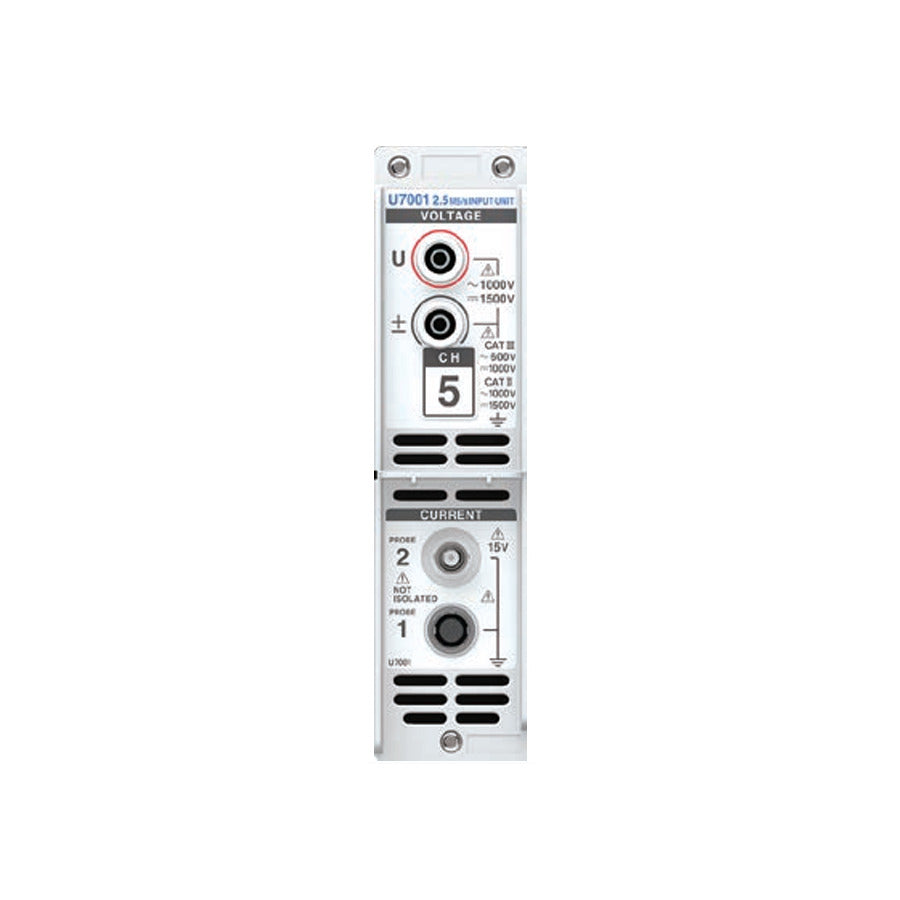

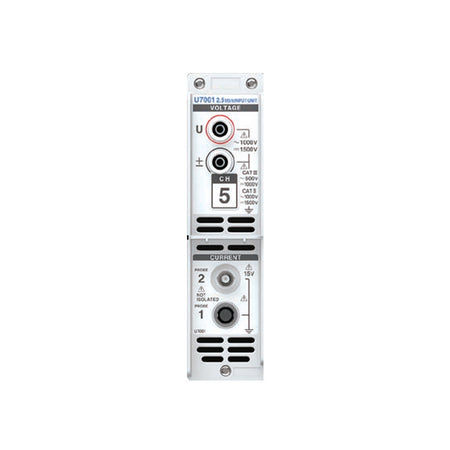

Hioki U7001 Input Unit
Factory-installed option
Basic accuracy for 50/60 Hz: Power ±0.07%
Sampling frequency: 2.5 MHz
ADC resolution: 16-bit
Measurement frequency band: DC, 0.1 Hz to 1 MHz
Maximum input voltage: 1000 V AC, 1500 V DC, ±2000 V peak
Maximum rated line-to-ground voltage: 600 V AC/1000 V DC CAT III, 1000 V AC/1500 V DC CAT II
For use with the Hioki PW8001 POWER ANALYZER Mainframe
