Portable Resistance Meter, 3 mOhm to 3 MOhm, Bluetooth optional
Handheld four-wire DC milliohm meter, test current range 500 nA to 1 A, ten resistance ranges from 3 mOhm to 3 MOhm, backlight display, optional Bluetooth communication
• 0.02 % basic accuracy
• Test current range 500 nA to 1 A
• 10 resistance ranges from 3 mOhm to 3 MOhm
• 0.1 μOhm maximum resolution
• Optional Bluetooth communication with Z3210 adapter
• Only portable meter for low resistances with high accuracies
• Withstand DC voltages of up to 70 V
• High voltage connection tests in EVs
• Motor winding tests
• Cable length testing
• Mechanical connection tests

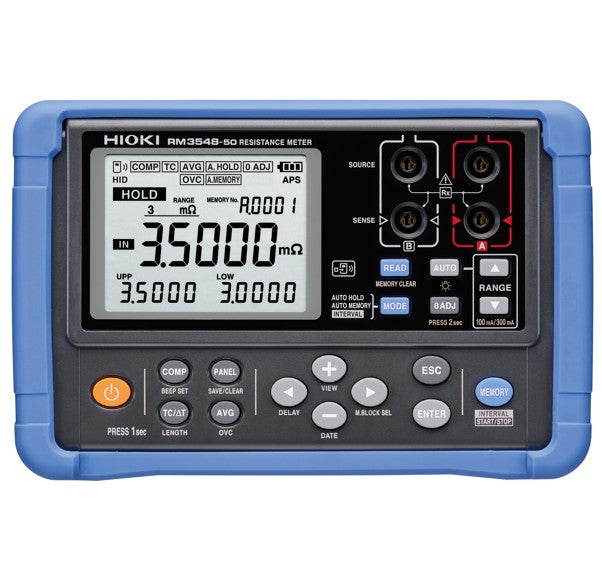

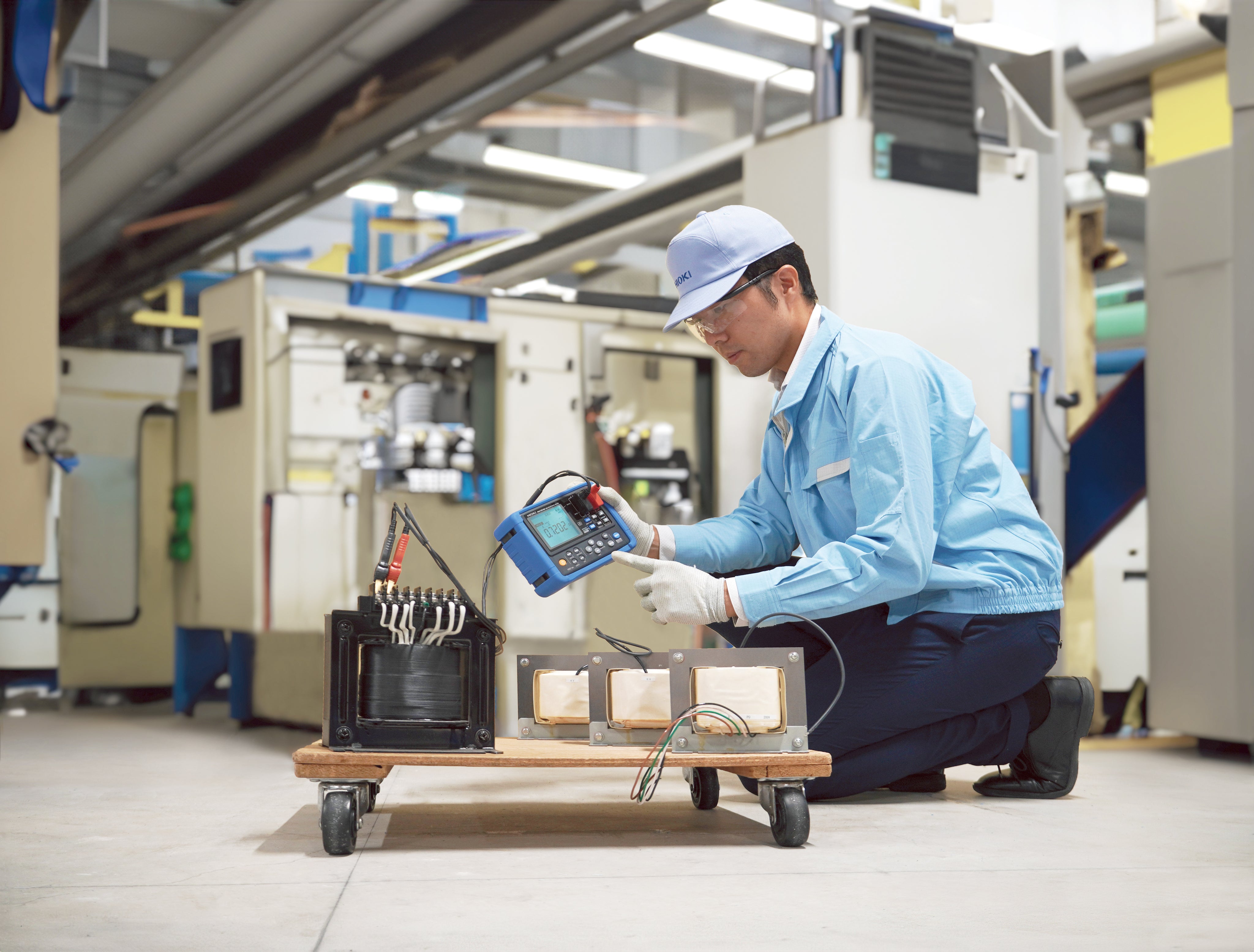

The HIOKI RM3548-50 Resistance Meter is a portable, highly sensitive milliohm meter designed for precise small resistance measurements. It delivers a basic accuracy of 0.02% and a resolution of 0.1 μΩ, covering a range from 3 mΩ to 3 MΩ. This makes it ideal for monitoring even slight changes in contact resistance, such as in electric vehicles (EVs), motor and generator windings, or for high-precision cable length measurements.

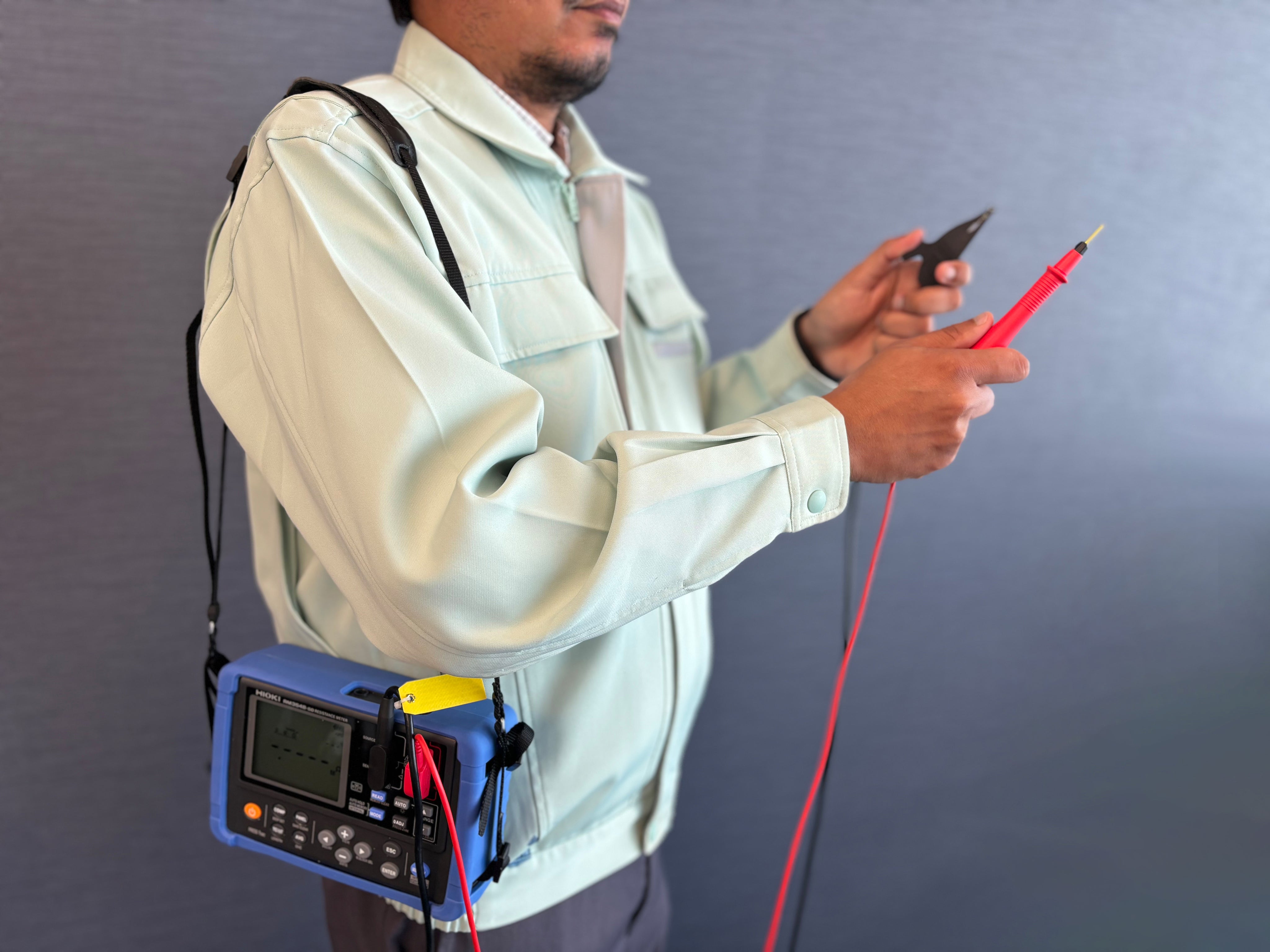

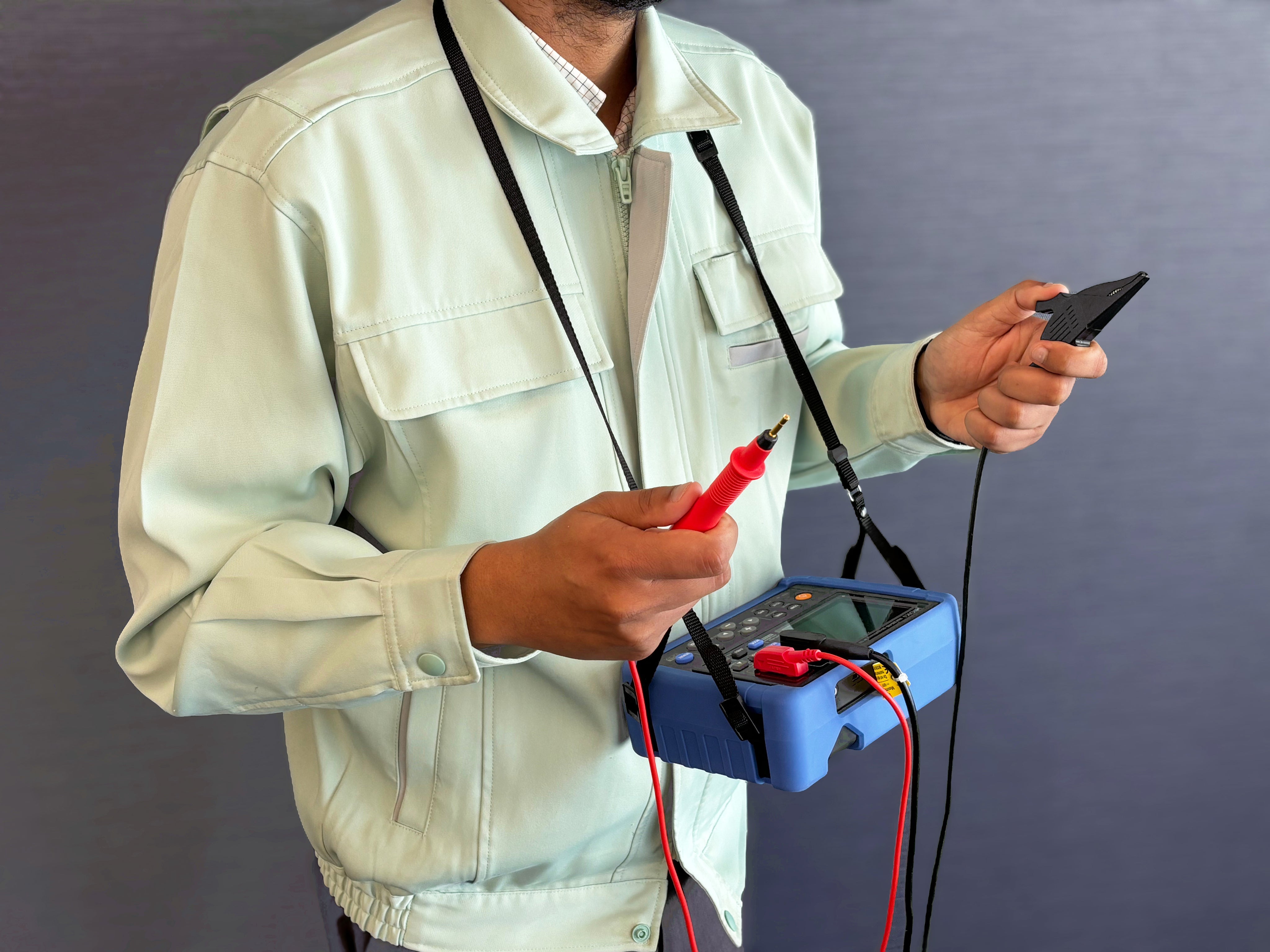

The RM3548-50 is compact and lightweight. Weighing less than 1 kilogram, this resistance meter allows for easy use in hard-to-reach places. Its rugged design and portability make it a convenient tool for fieldwork and maintenance tasks. With a high current capability of up to 1 A, it can measure low resistance values reliably, making it suitable for checking continuity in automotive ground lines and inspecting welds in aircraft fuselages.
The Resistance Meter RM3548-50 features temperature correction, ensuring accurate measurements by adjusting for ambient conditions. It also includes advanced functions like interval measurement, making it suitable for temperature-rise testing. The device requires no warm-up or zero adjustments, allowing for immediate operation.

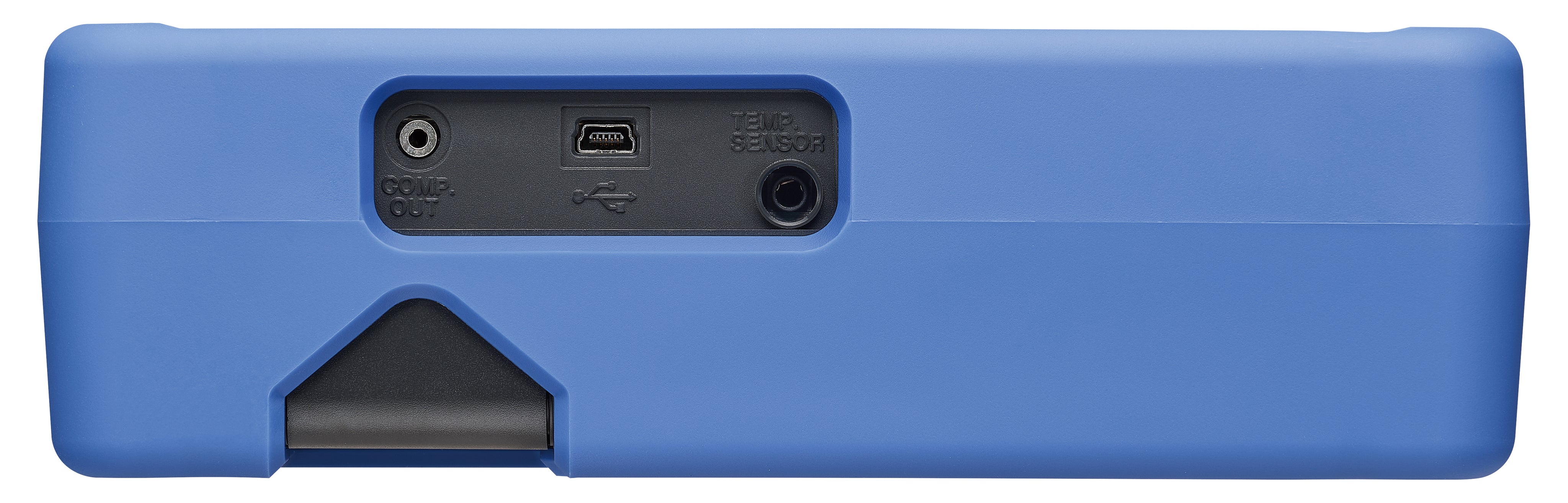

With a memory capacity for 1000 data points and easy USB data transfer, the RM3548-50 is highly functional for on-site testing. The resistance meter's overvoltage protection up to 70 V DC and intuitive user interface further enhance its reliability and usability for professionals working in maintenance and testing applications. This four-wire resistance meter combines precision, portability, and ease of use, making it a versatile choice for a wide range of industrial applications.

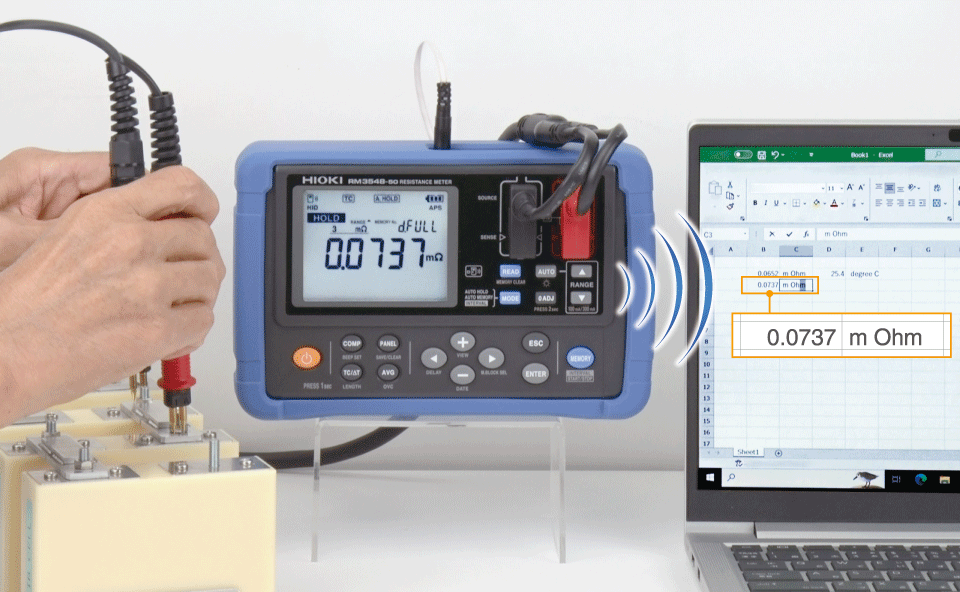

When paired with the optional Z3210 Bluetooth adapter, measurement data can be wirelessly transferred to a smartphone or tablet. A backlit display ensures easy readings even in low-light environments. A variety of optional test leads is available, covering both general measurement applications and specialized ones, such as measuring coated alloys or working in sensitive aircraft environments.
• RM3548-50 Portable Resistance Meter
• L2107 Clip Type Lead
• Z2002 Temperature Sensor
• Z5041 Instrument Protector
• LR6 Alkaline battery (×8)
• Instruction manual
• USB cable (A to mini-B type)
• Neck strap
• Spare fuse
• Z3210 Bluetooth Adapter
• L2140 Test Leads
• L2141 Test Lead
• L2142 Test Lead
• 9465-10 Straight Pin Type Lead
• 9465-11 Pin Type Lead
• 9465-90 Tip Pin (Replacement for 9465-10, 9465-11, L2020, L2140)
• 9772 Straight Pin Type Lead
• 9772-90 Tip Pin (Replacement for 9772, L2003, L2100, L2110)
• 9453 Four Terminal Lead
• L2107 Clip Type Lead
• 9467 Large Clip Type Lead
• 9454 Zero Adjustment Board (for L2100, 9465-10, 9465, 9461)
• L2105 LED Comparator Attachment
• Z2002 Temperature Sensor
• Z5041 Instrument Protector
• C1014 Carrying Case
