The RM3545A-2 Resistance Meter combines high-precision DC resistance measurement with integrated multiplexer capability for automated multi-channel testing. It offers 13 measurement ranges from 1 mΩ to 1200 MΩ and a maximum test current of 1 A, providing stable, repeatable results across a wide range of components and materials. With a 6 1⁄2-digit display, 1 nΩ resolution, and a basic accuracy of ±0.045 % rdg ± 0.010 % f.s., the instrument delivers immediate, high-precision readings without the need for warm-up or manual zero adjustment.

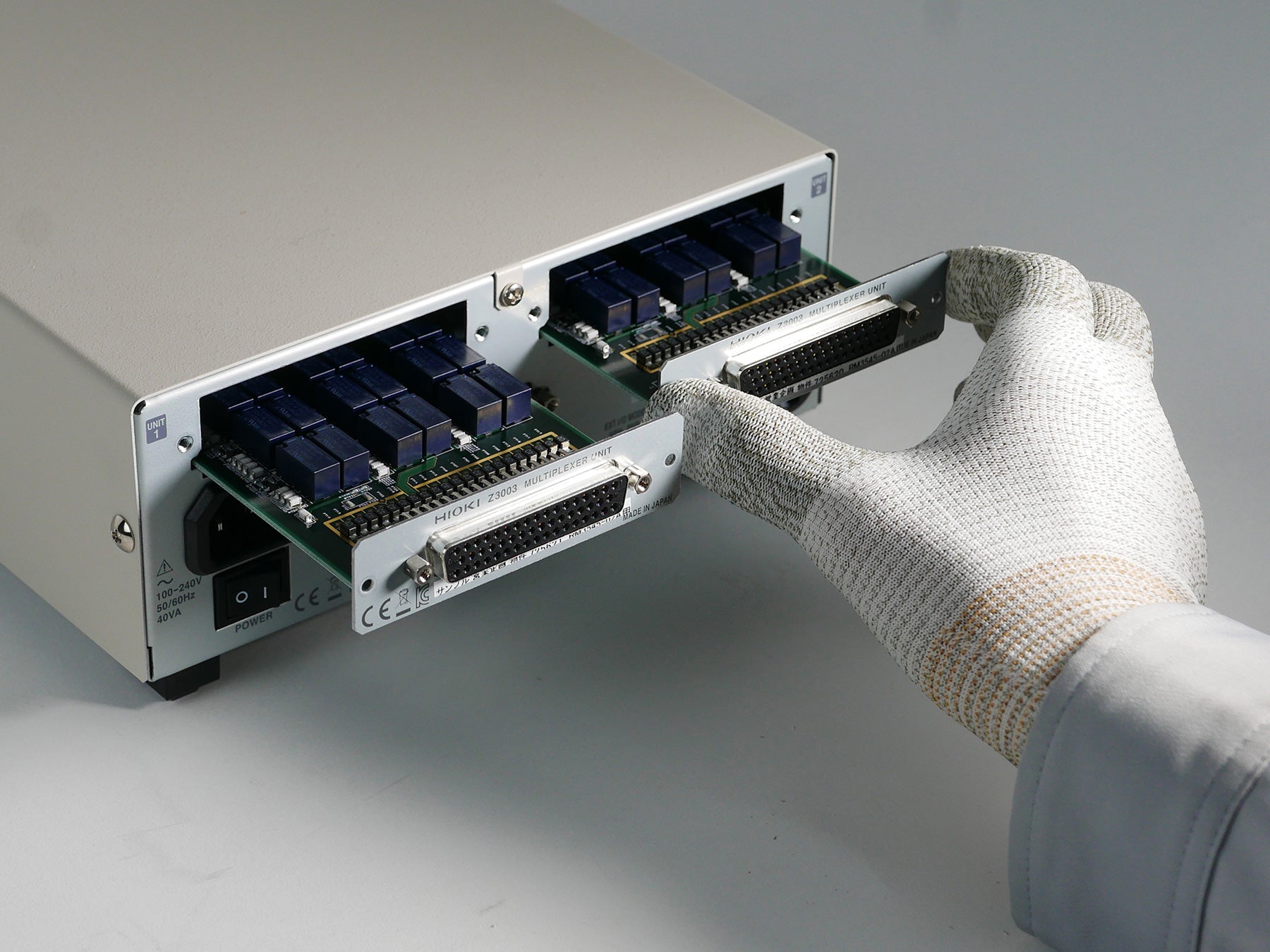

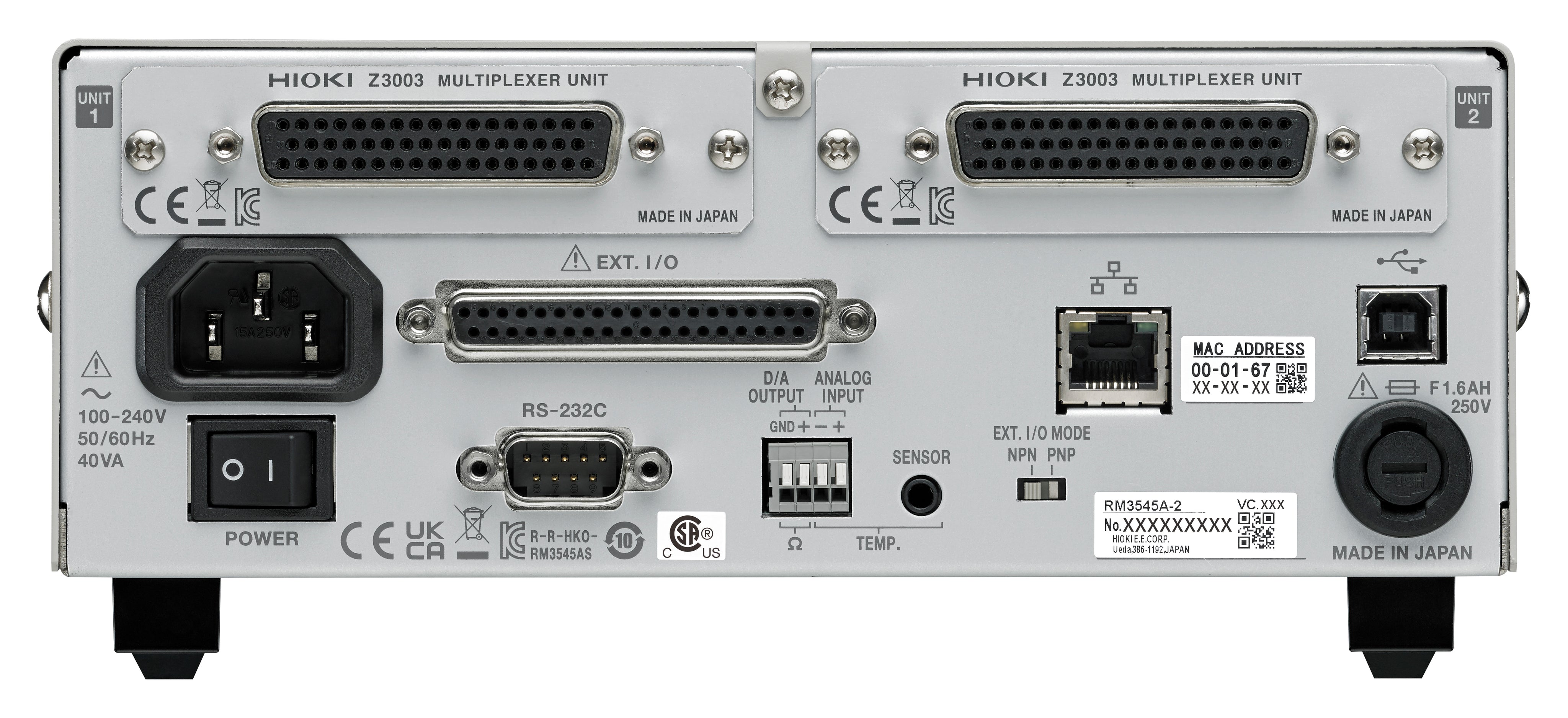

Measurement times as short as 2.3 ms (10 Ω range, FAST mode) enable high-throughput testing and short cycle times, which is especially beneficial when the instrument is integrated into automated production lines or inspection systems. The RM3545A-2 supports all functions of the RM3545A-1 and adds multiplexer capability for efficient multi-point testing.
