Modular 8-channel High Precision Power Analyzer
Modular high precision power analyzer, up to 8 channels, ±0.03% basic accuracy, 15 MHz sampling rate, 18-bit A/D conversion, automatic phase shift correction for HIOKI current sensors, 1 ms data update rate, CMRR 110 dB @ 100 kHz.
• Basic power accuracy ±0.03%

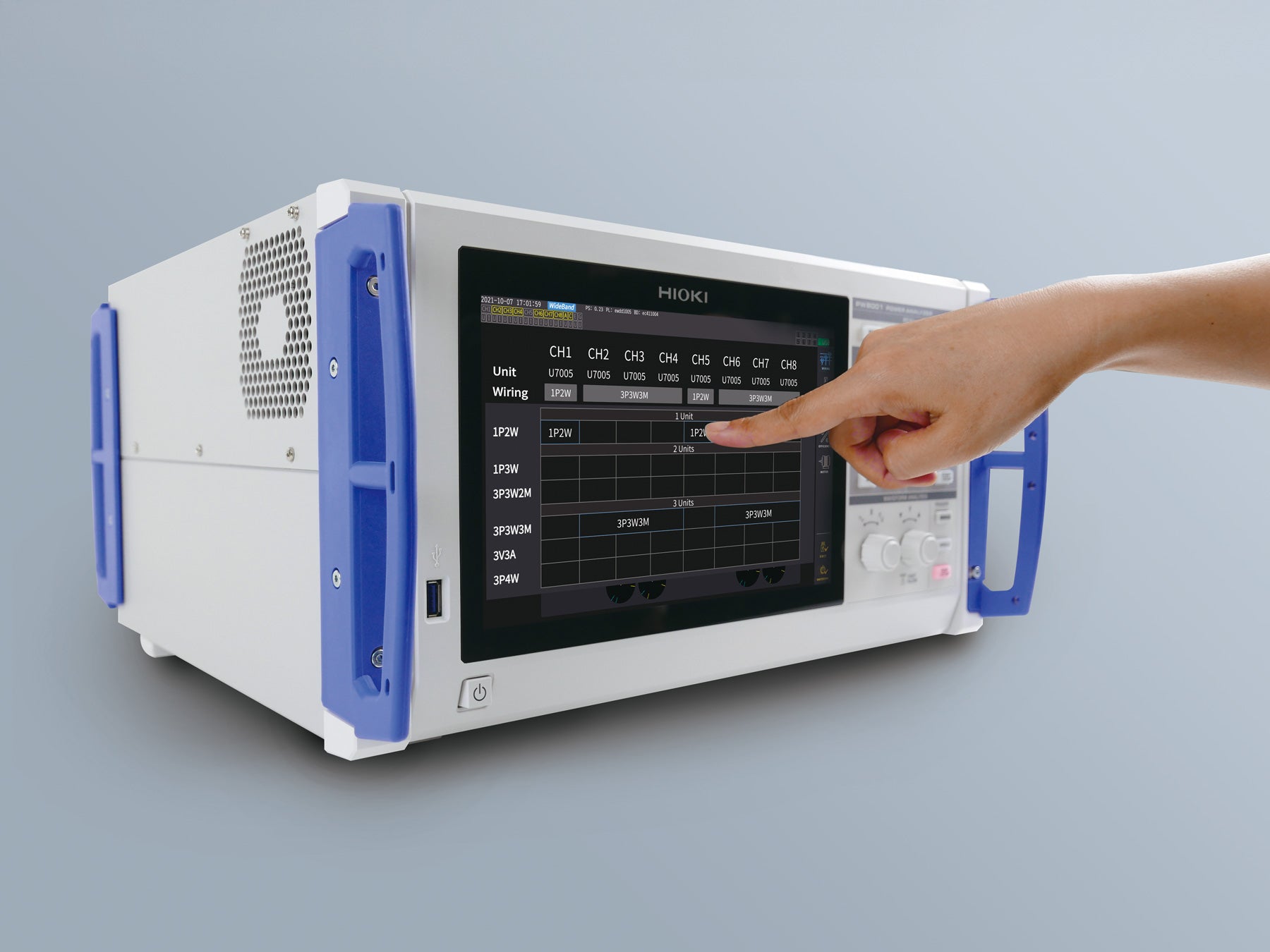

• 8 power channels combined with motor analysis
• Excellent noise resistivity of 110 dB @ 100 kHz
• 5 MHz frequency measurement band for power
• Stable and accurate measurement at 1 ms data update rate

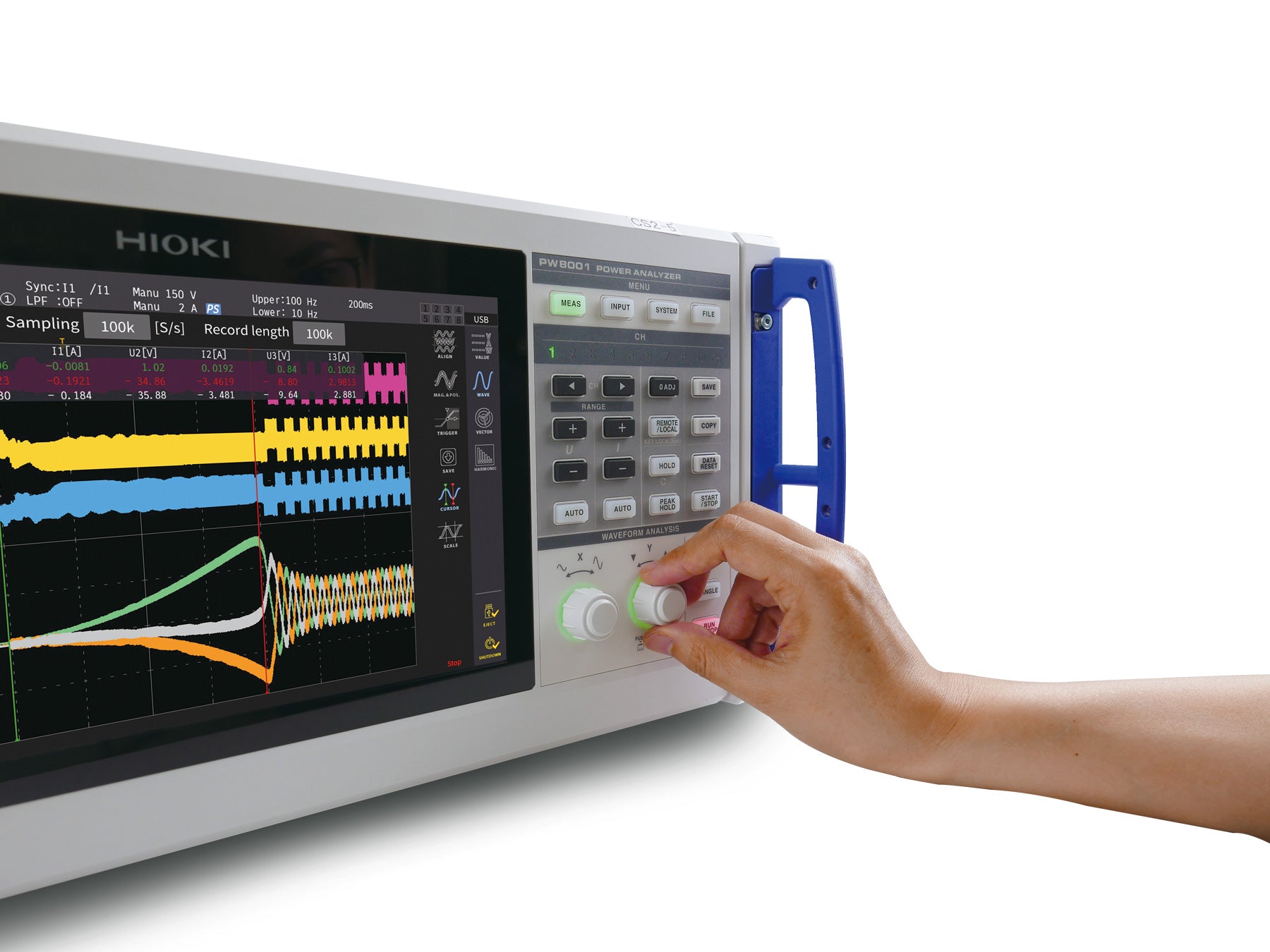

• 8 power channels in combination with motor analysis for dual drivetrain analysis
• Unique power range with 2 A to 2 kA high-accuracy HIOKI current sensors
• Plug-and-play connectivity with HIOKI current sensors
• Automatic Phase Shift Correction secures accurate high-frequency power measurement
• Visualize high-frequency loss with Power Spectrum Analysis measurement
• R&D and production line testing of high-efficiency power converters and inverters
• Loss measurement of transformers and other inductive components under load
• Motor efficiency measurement

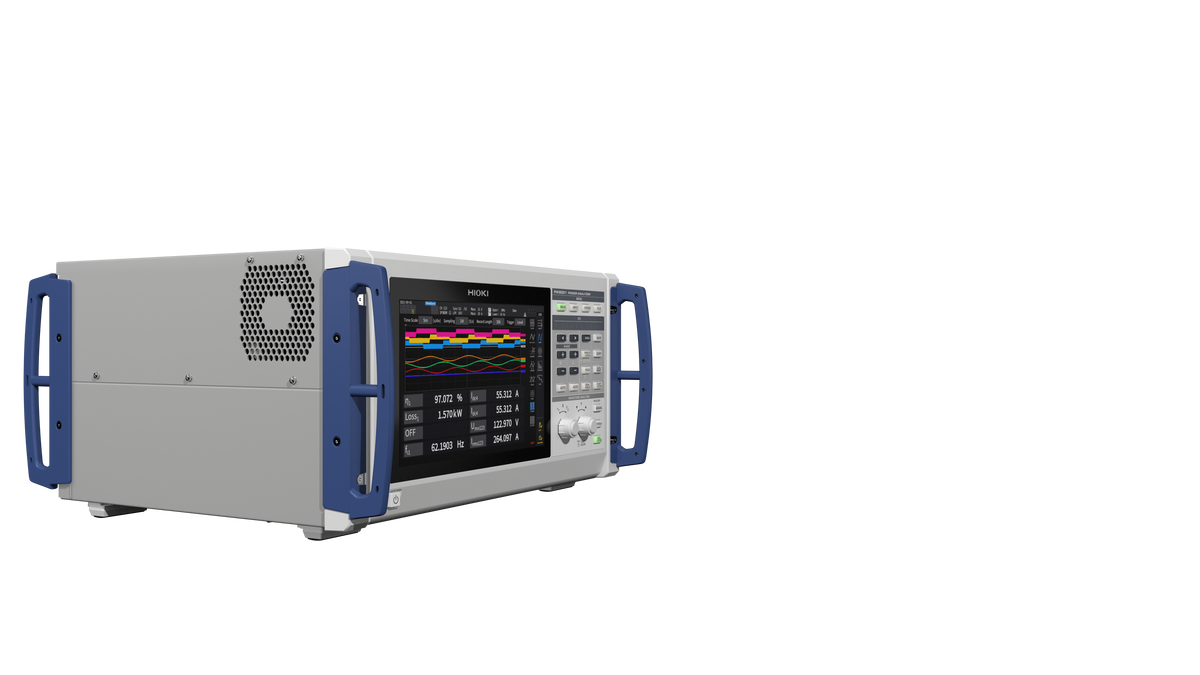

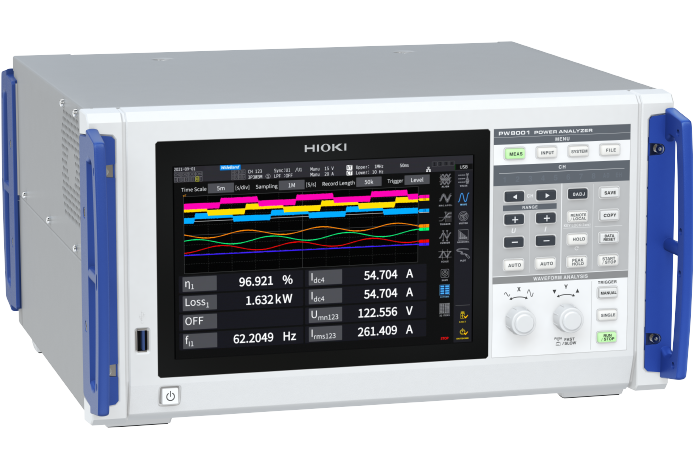

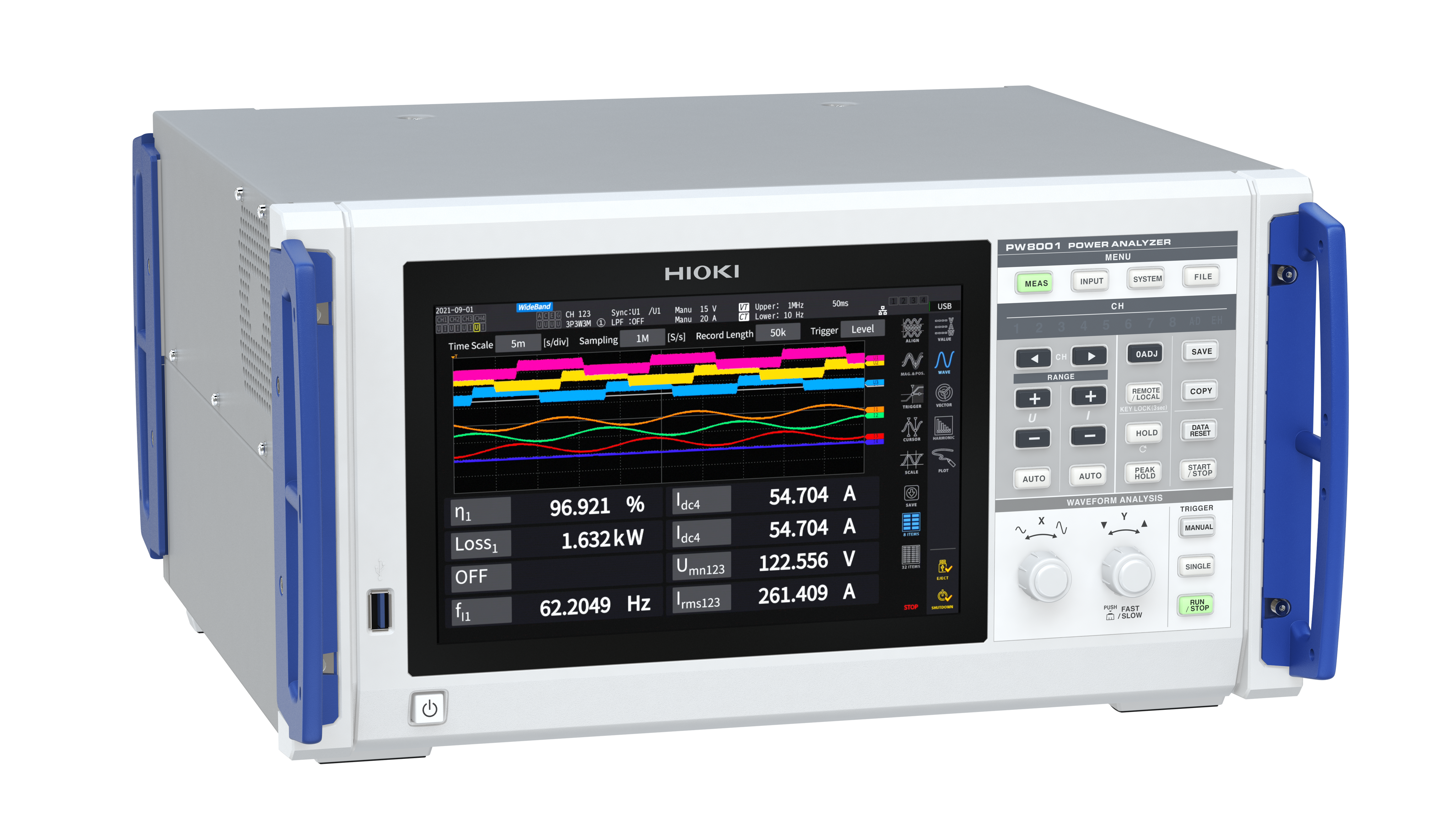

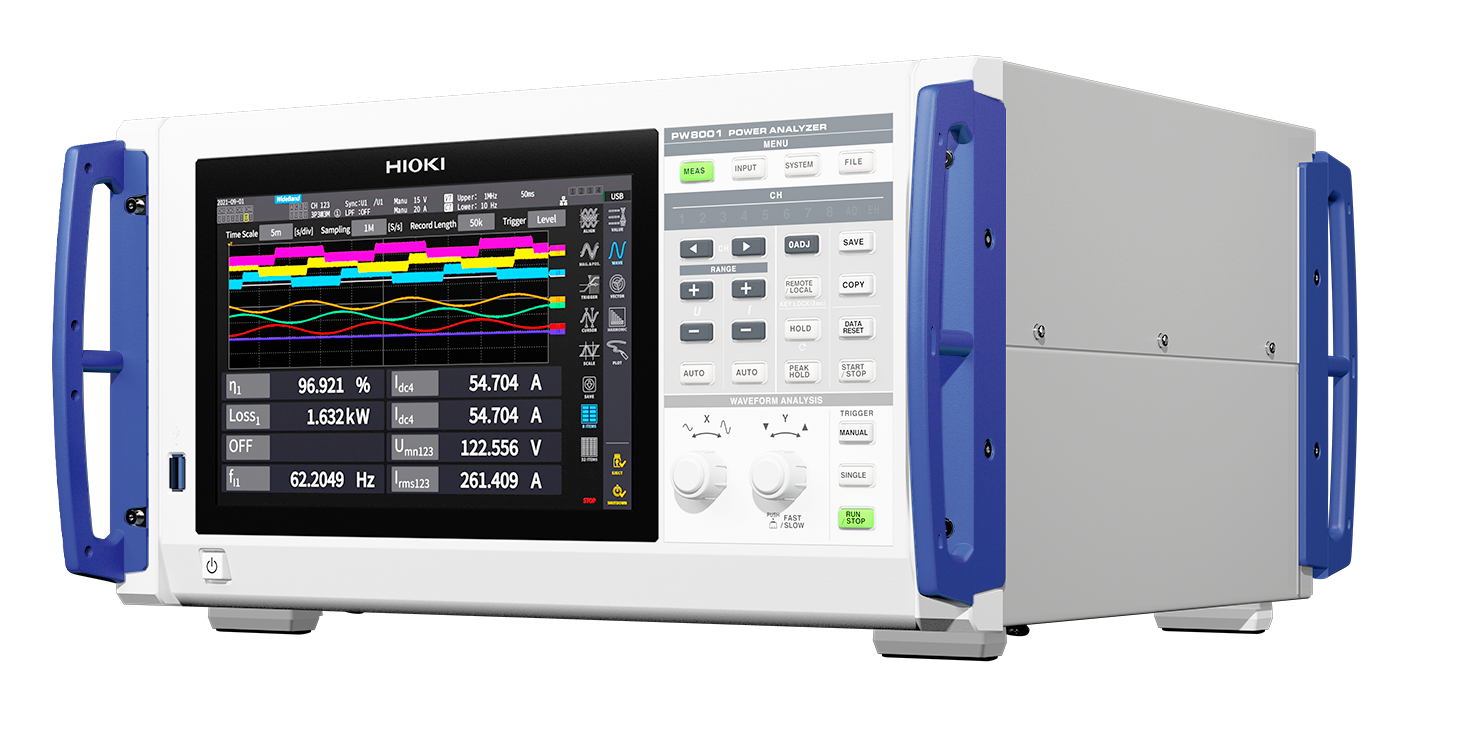

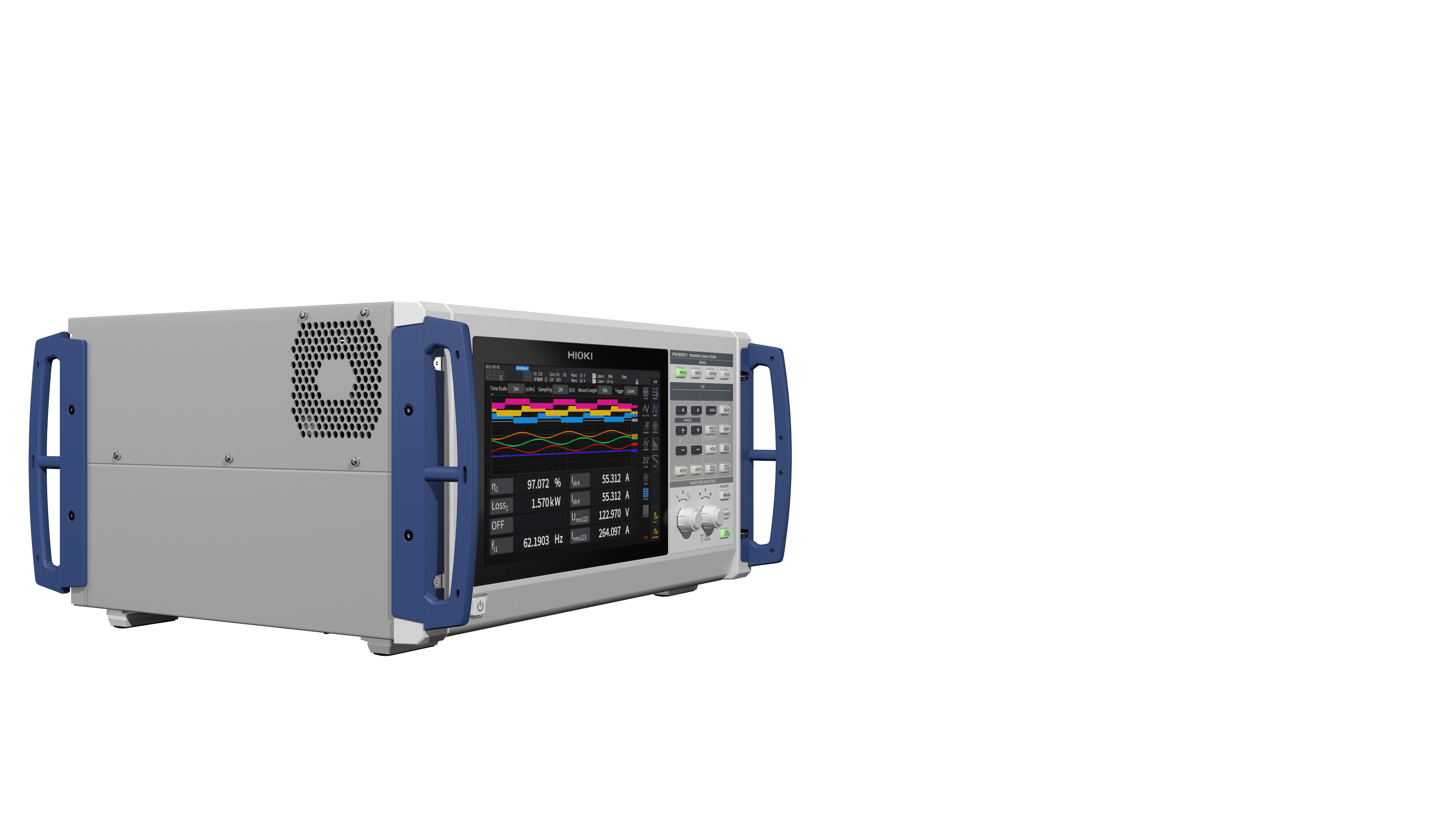

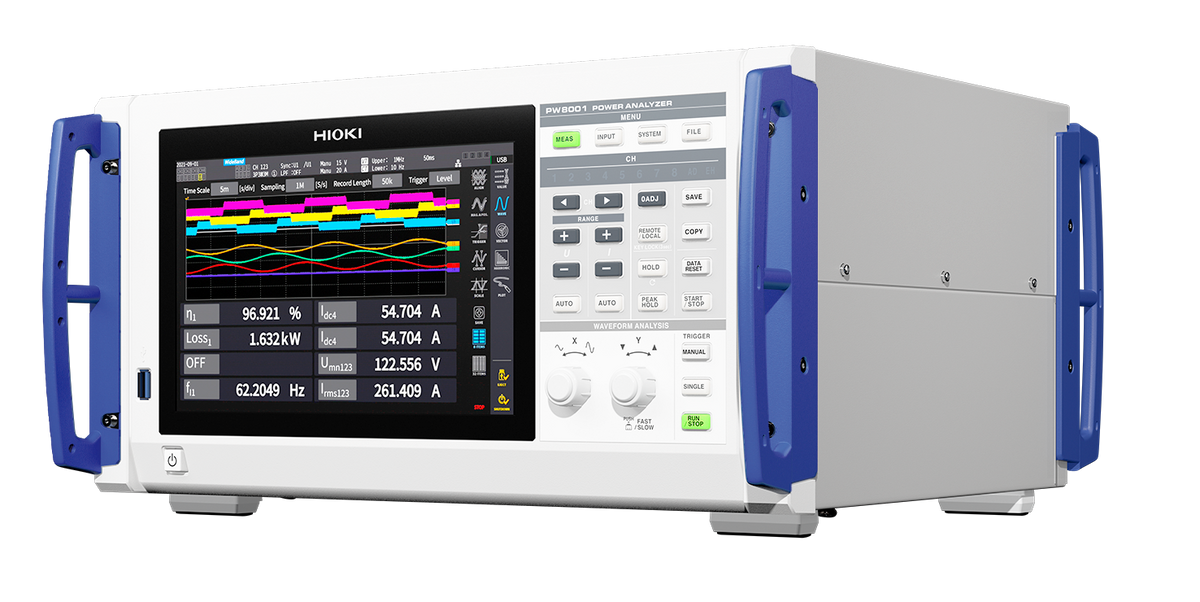

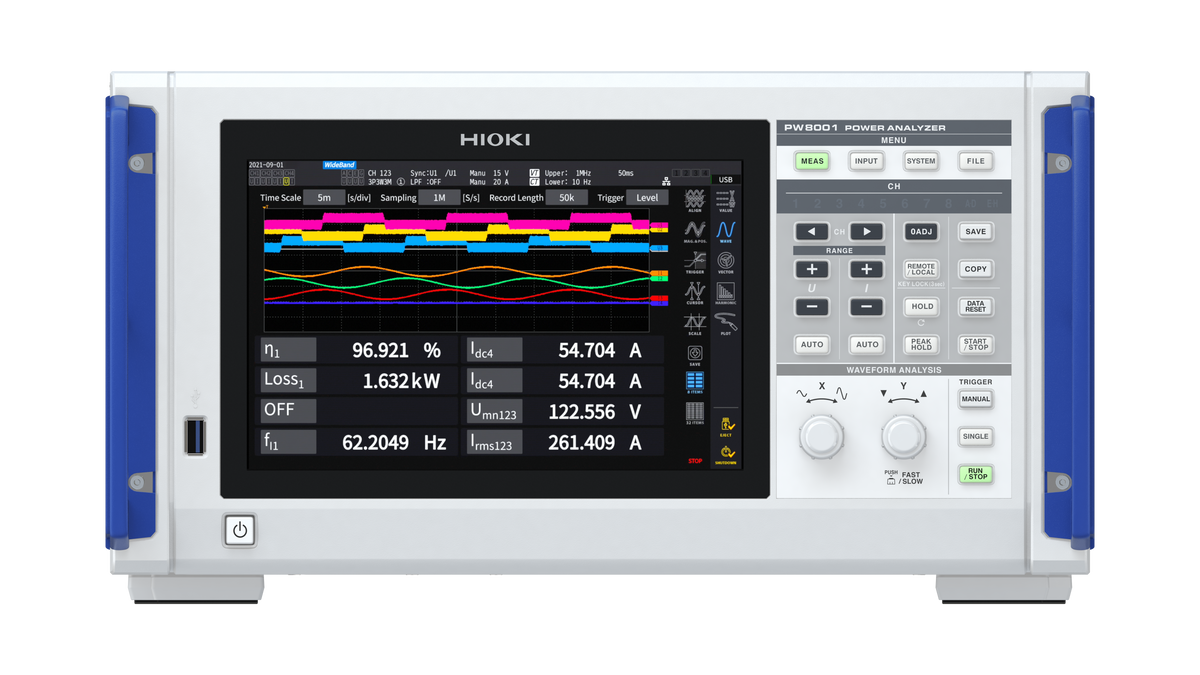

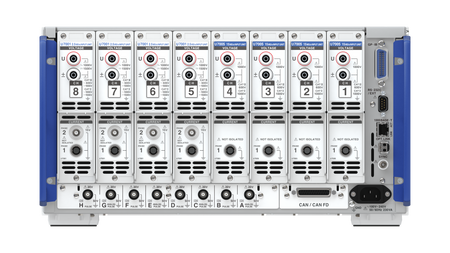

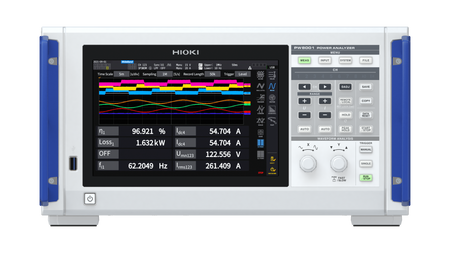

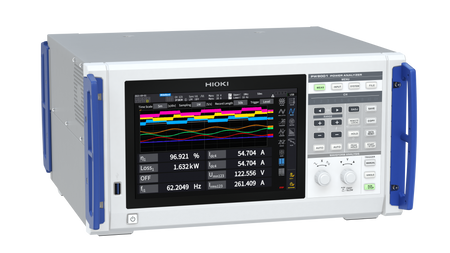

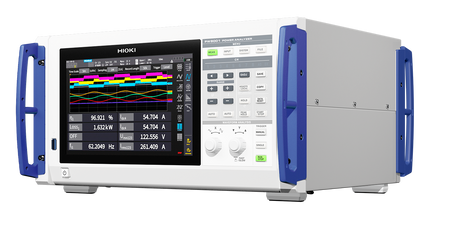

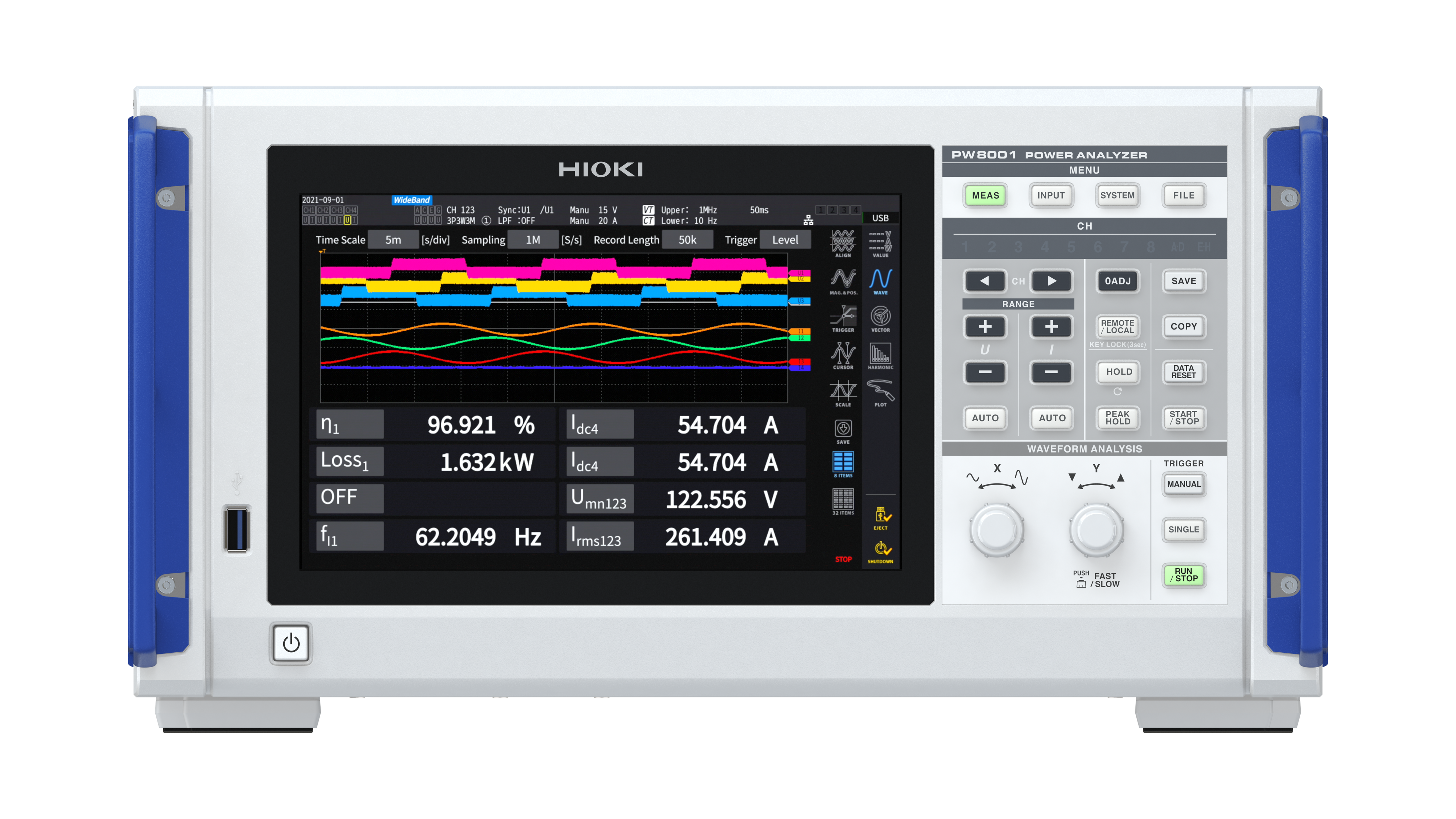

The HIOKI PW8001 Power Analyzer is a state-of-the-art measurement instrument designed for the most demanding power analysis tasks, providing precise measurement results when evaluating the efficiency of the latest high-accuracy electrical devices and systems. The PW8001 features eight slots for power input units, all of which can be used in combination with the motor analysis function.

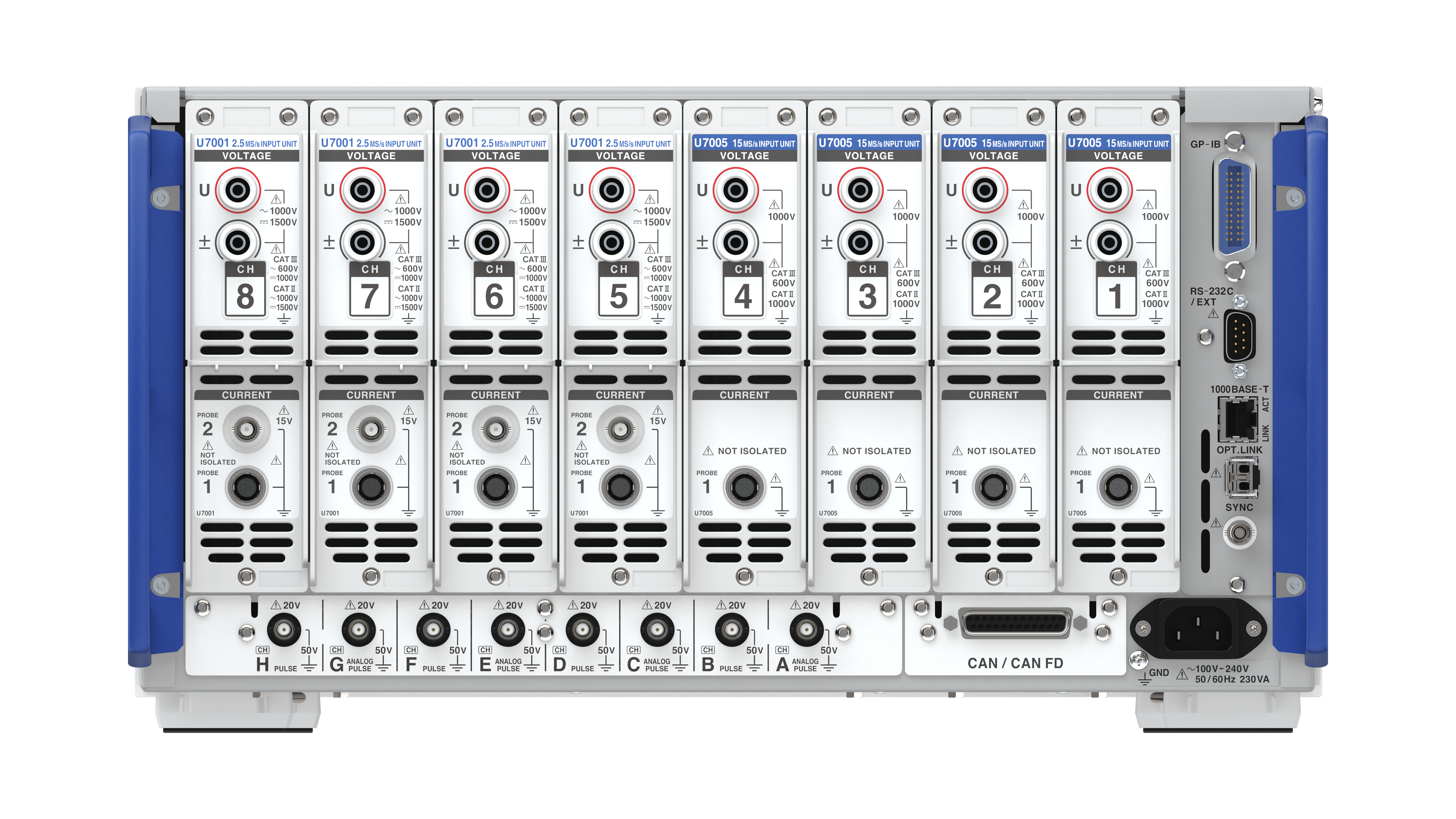

For configuration flexibility, two types of input units are available and can be freely combined within a single instrument according to application requirements.
The U7005 High Bandwidth Input Unit offers ultimate precision with ±0.03% basic accuracy, a sampling frequency of 15 MHz, 18-bit A/D conversion, and a maximum input voltage of 1000 VAC. It is suitable for applications such as efficiency measurements of SiC- and GaN-based inverter motor drives, as well as accurate loss measurements of inductors under load.
Its excellent external noise immunity of 110 dB at 100 kHz ensures accurate and stable results even when operating near high-frequency power switching semiconductors.
For high-voltage applications, the U7001 Input Unit provides ±0.07% basic accuracy, a maximum input voltage of 1500 VDC, a sampling frequency of 2.5 MHz, 16-bit A/D conversion, and a maximum voltage-to-ground rating of 1500 VDC CAT II. It is ideal for applications requiring less bandwidth, such as testing industrial motor drives using IGBTs, wind turbines, and photovoltaic power converters.

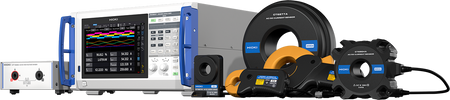

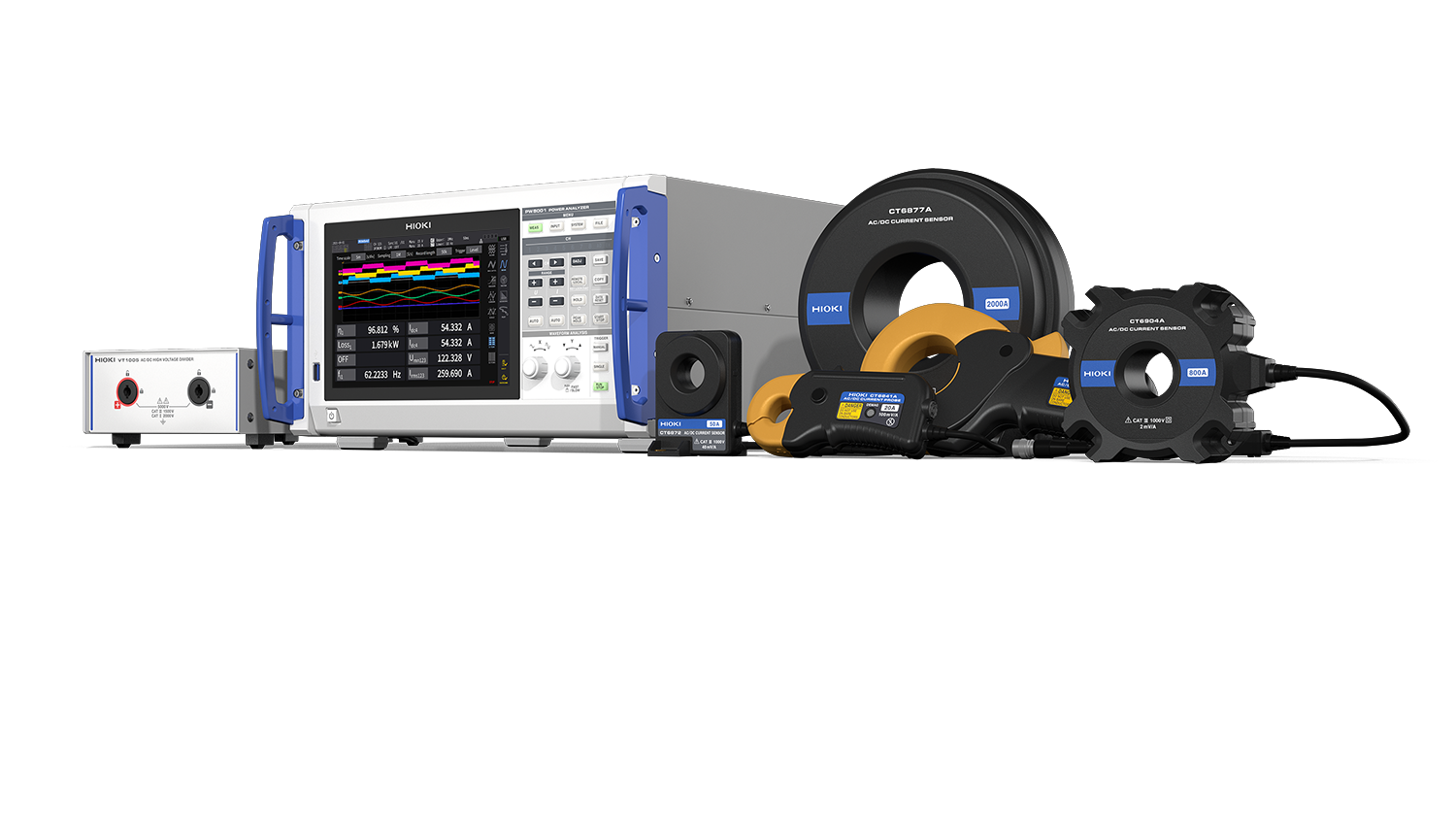

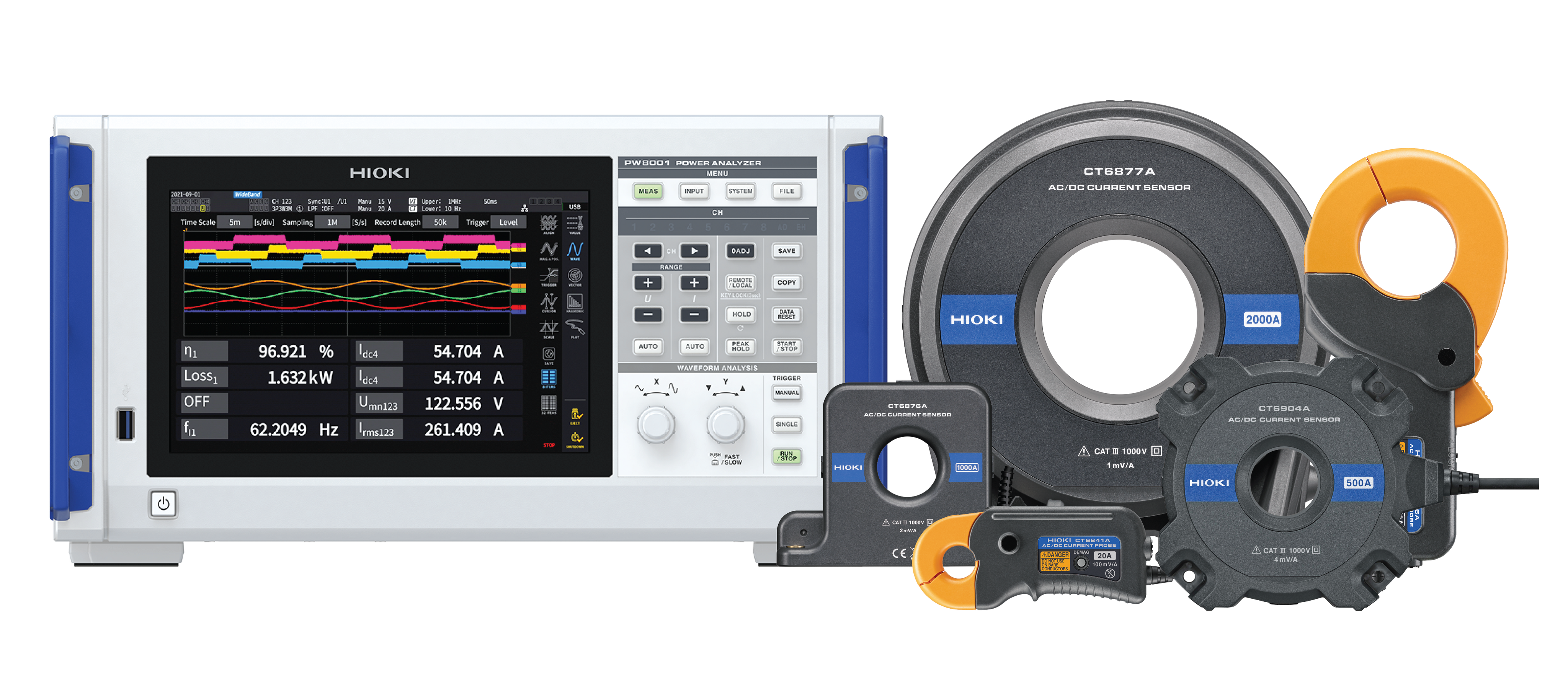

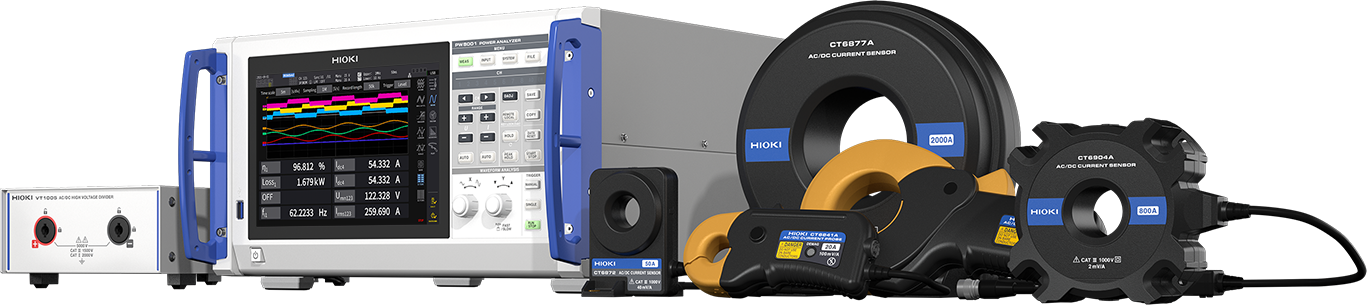

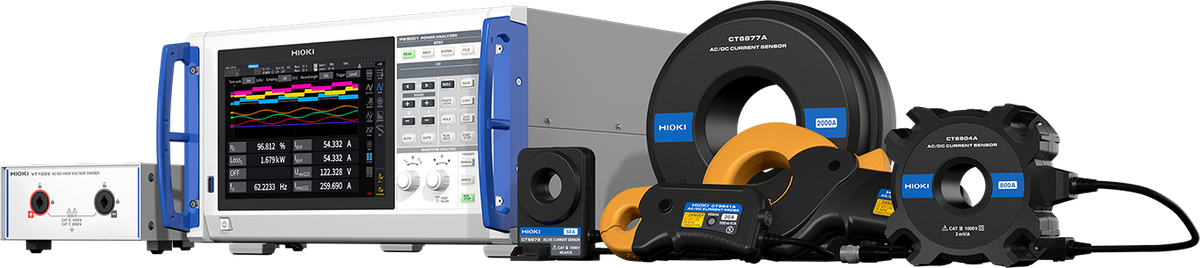

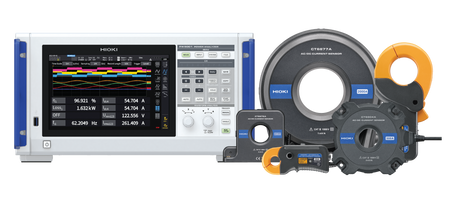

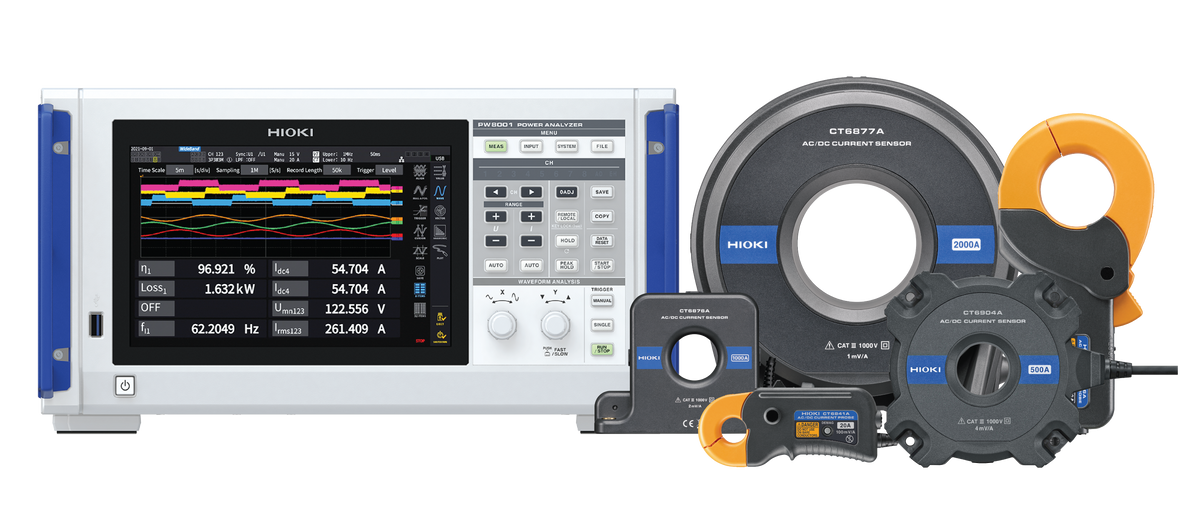

Combined with HIOKI’s extensive range of high-accuracy and high-bandwidth current sensors, probes, and direct connection current boxes, the PW8001 delivers a comprehensive solution for measuring applications ranging from small electronic devices to large-scale power systems.
The PW8001 power analyzer and HIOKI current sensors are developed and manufactured by HIOKI, enabling the advanced Automatic Phase Shift Correction function. This ensures highly accurate phase angle measurements between voltage and current, even at high frequencies and low power factors.

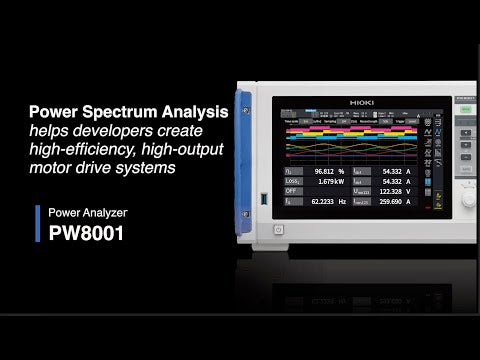

The PW8001 also offers the unique Power Spectrum Analysis function. Unlike traditional FFT analysis, which determines harmonics based on the fundamental frequency and is therefore frequency-limited, Power Spectrum Analysis covers the analyzer’s entire frequency spectrum.
This function provides rapid visibility into high-frequency power components, giving developers valuable insights for further efficiency optimization and system improvements.
Additional advanced functions, including wideband harmonic analysis and motor analysis, ensure precise and reliable power analysis across a wide variety of applications in the power electronics industry. Typical applications include the development of high-efficiency power converters, electric drivetrains, and electric motors.
The 1 ms update rate enables high-speed data refresh, allowing precise detection and analysis of rapid power fluctuations such as those occurring during EV battery charging and discharging. This capability provides exceptionally fast updates without compromising measurement accuracy.
The optical link function allows two PW8001 power analyzers to be connected together, increasing the total number of measurement channels to 16. This enables synchronized power measurements and efficiency calculations across multiple inputs while eliminating timing differences because all inputs are sampled synchronously.
• PW8001 Power Analyzer
• Power Cord
• Instruction Manual
• GENNECT One PC Application Software on CD
• D-sub 25-pin Connector (when D/A Output Function is selected)
• U7001 High Voltage Power Module
• U7005 High Bandwidth Power Module
• PW4001 4-channel Power Analyzer
• CT6872 (50 A) AC/DC Pass-Through Current Sensor
• CT6873 (200 A) AC/DC Pass-Through Current Sensor
• CT6875A (500 A) AC/DC Pass-Through Current Sensor
• CT6904A (500 A) AC/DC Pass-Through Current Sensor
• CT6876A (1000 A) AC/DC Pass-Through Current Sensor
• CT6877A (2000 A) AC/DC Pass-Through Current Sensor
• PW9100A-04 (4-channel, 50 A) Direct Connection AC/DC Current Box
• CT6830 (2 A) AC/DC Current Probe
• CT6831 (20 A) AC/DC Current Probe
• CT6833 (200 A) AC/DC Current Probe
• CT6834 (500 A) AC/DC Current Probe
• CT6841A (20 A) AC/DC Current Probe
• CT6843A (200 A) AC/DC Current Probe
• CT6844A (500 A) AC/DC Current Probe
• CT6845A (500 A) AC/DC Current Probe
• CT6846A (1000 A) AC/DC Current Probe
• VT1005 AC/DC High Voltage Divider
