SKU: 70064496 | MPN: PW4001-05
New

Hioki PW4001-05 POWER ANALYZER

Regular price €13.468,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Our product specialists can compare models, confirm availability and lead time, and help you find the best option for your application

Hioki

Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

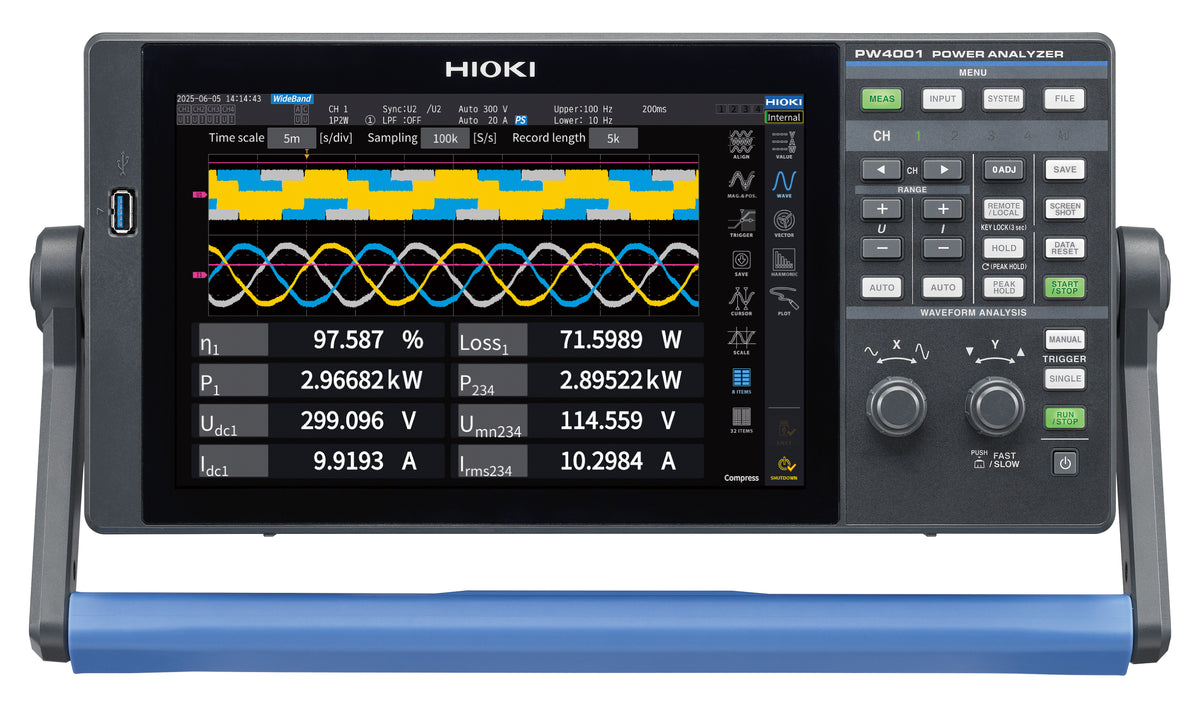

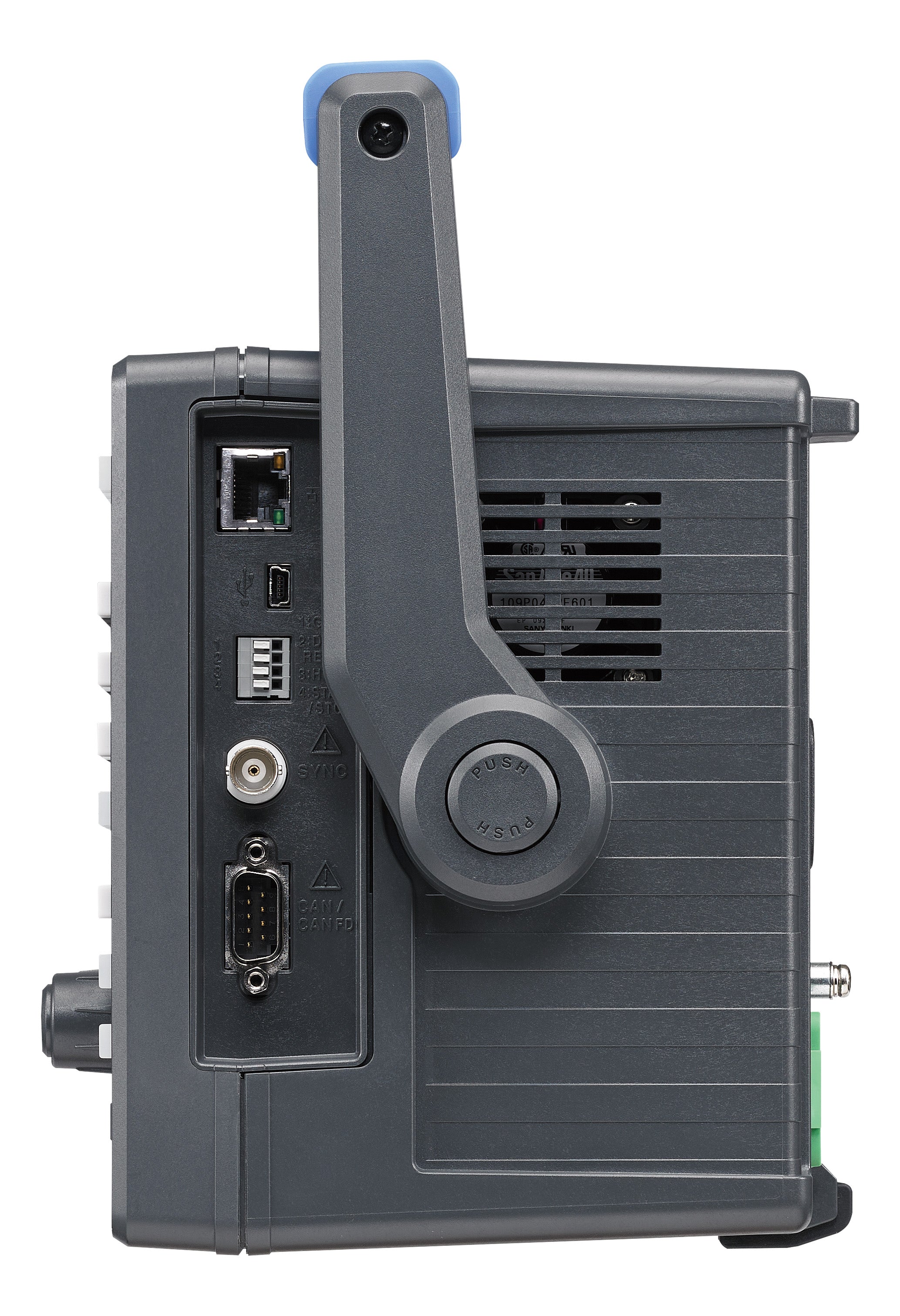

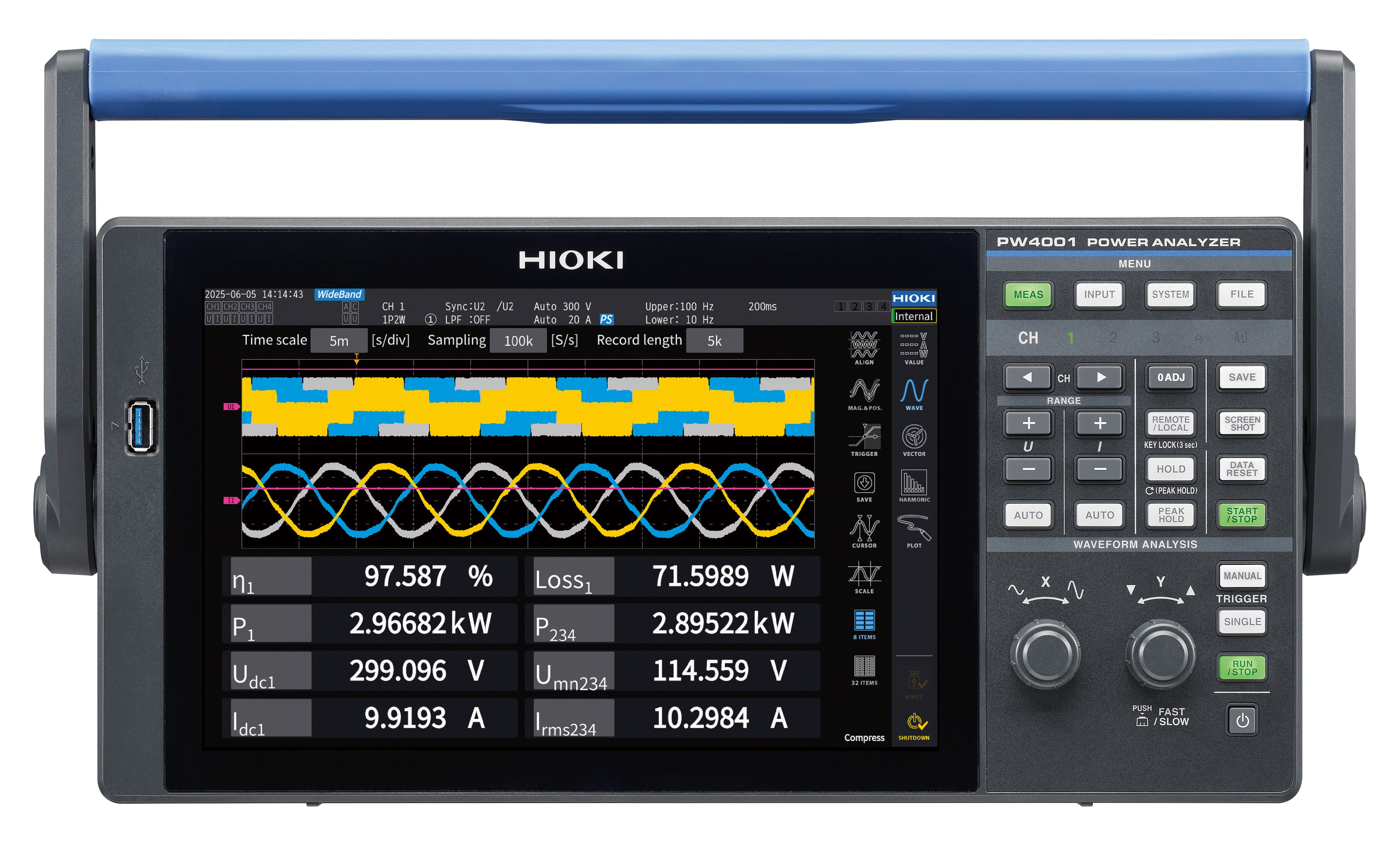

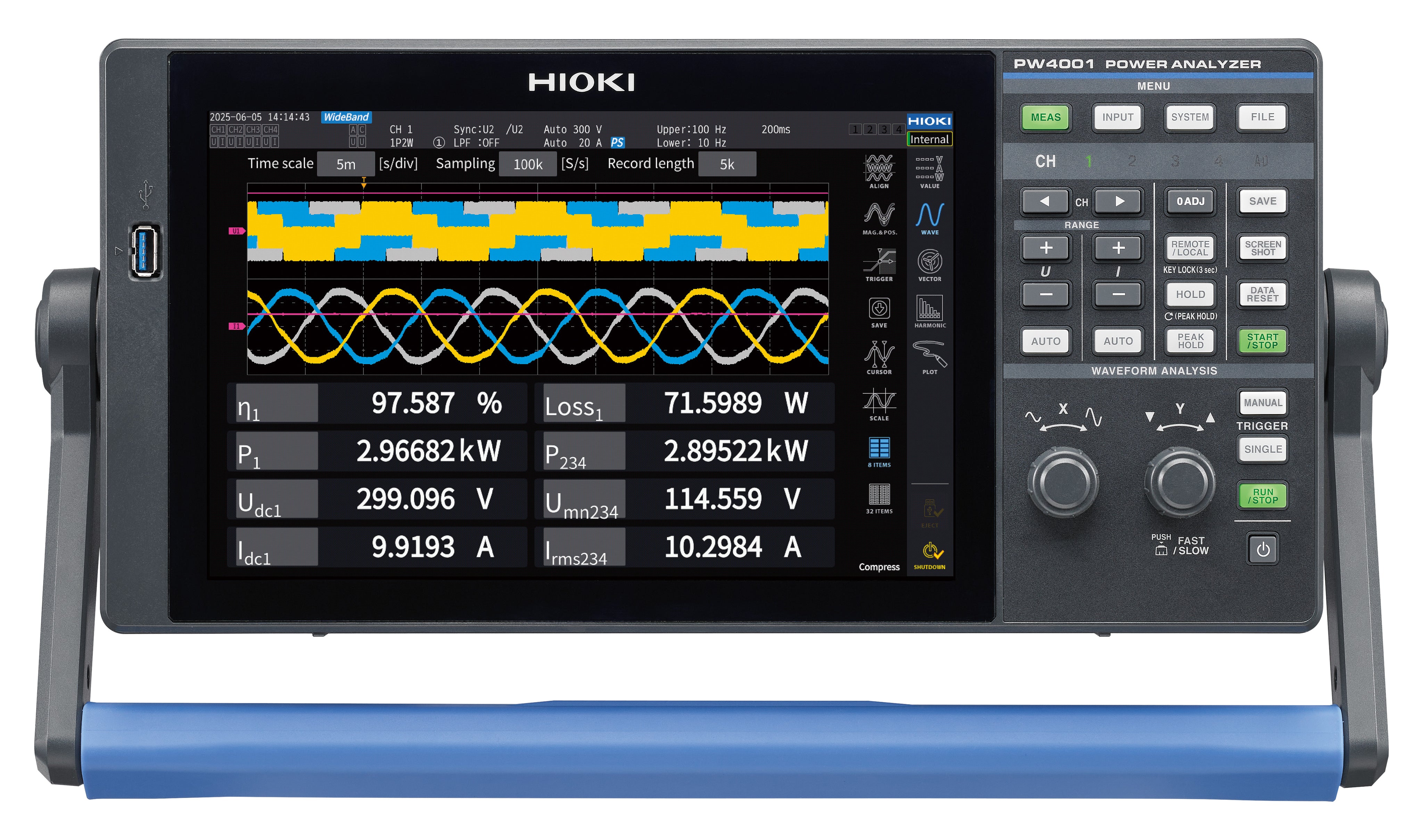

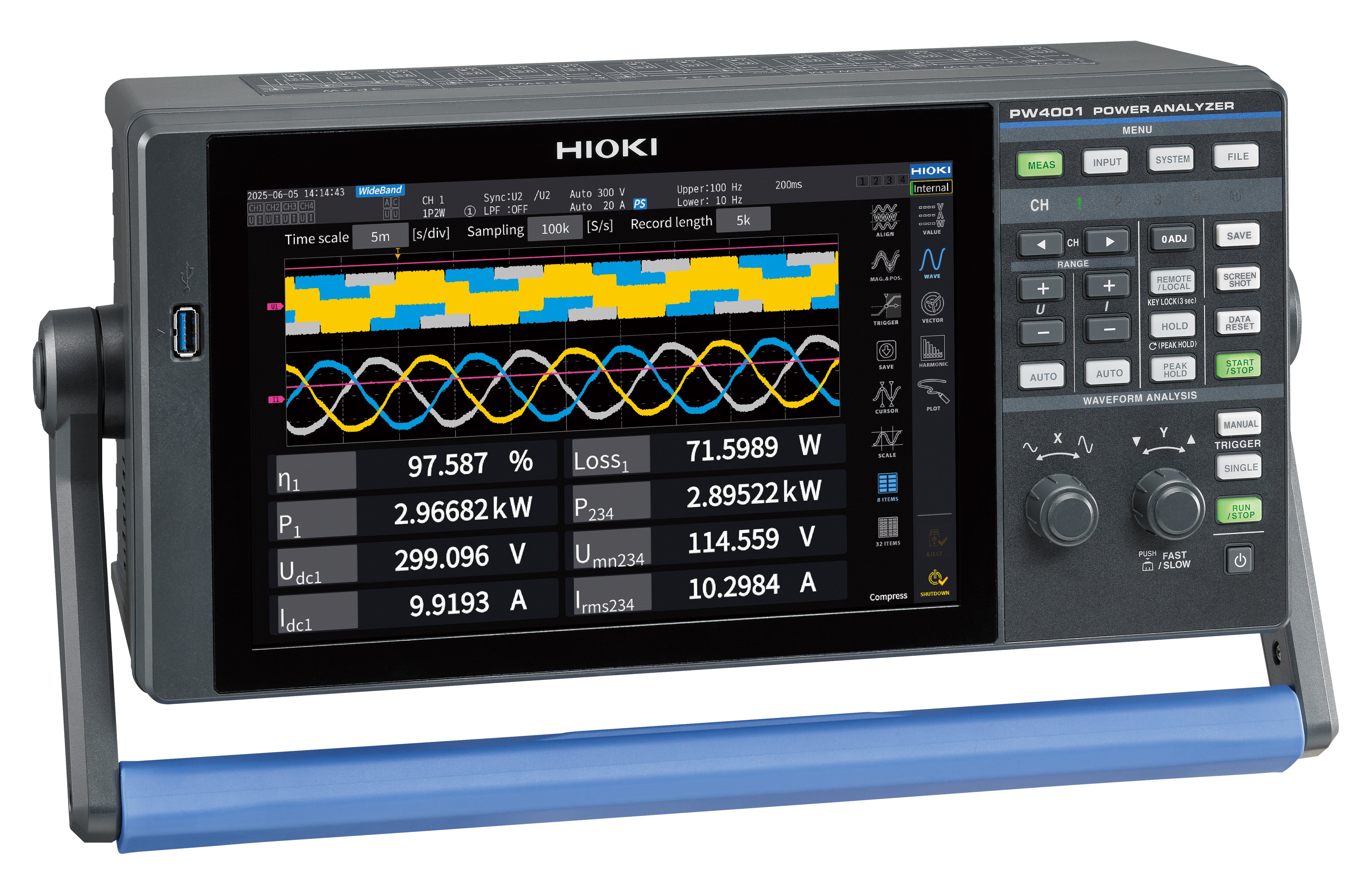

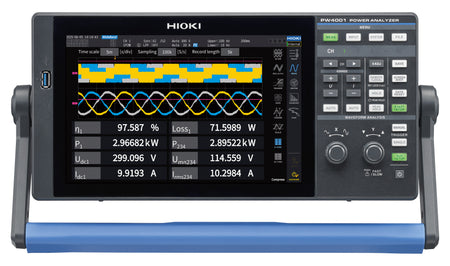

The HIOKI PW4001 is a portable 4-channel power analyzer that combines compact design with laboratory-grade precision. With a basic accuracy of ±0.04% across a frequency range from DC to 600 kHz, and benchmark accuracy of ±0.03% rdg. ±0.01% f.s. at DC and 50/60 Hz, it provides the precision required for applications such as WLTP (Worldwide Harmonized Light Vehicles Test Procedure) testing, DC-DC converter efficiency evaluation, and other demanding measurement tasks in R&D, production, and field environments.

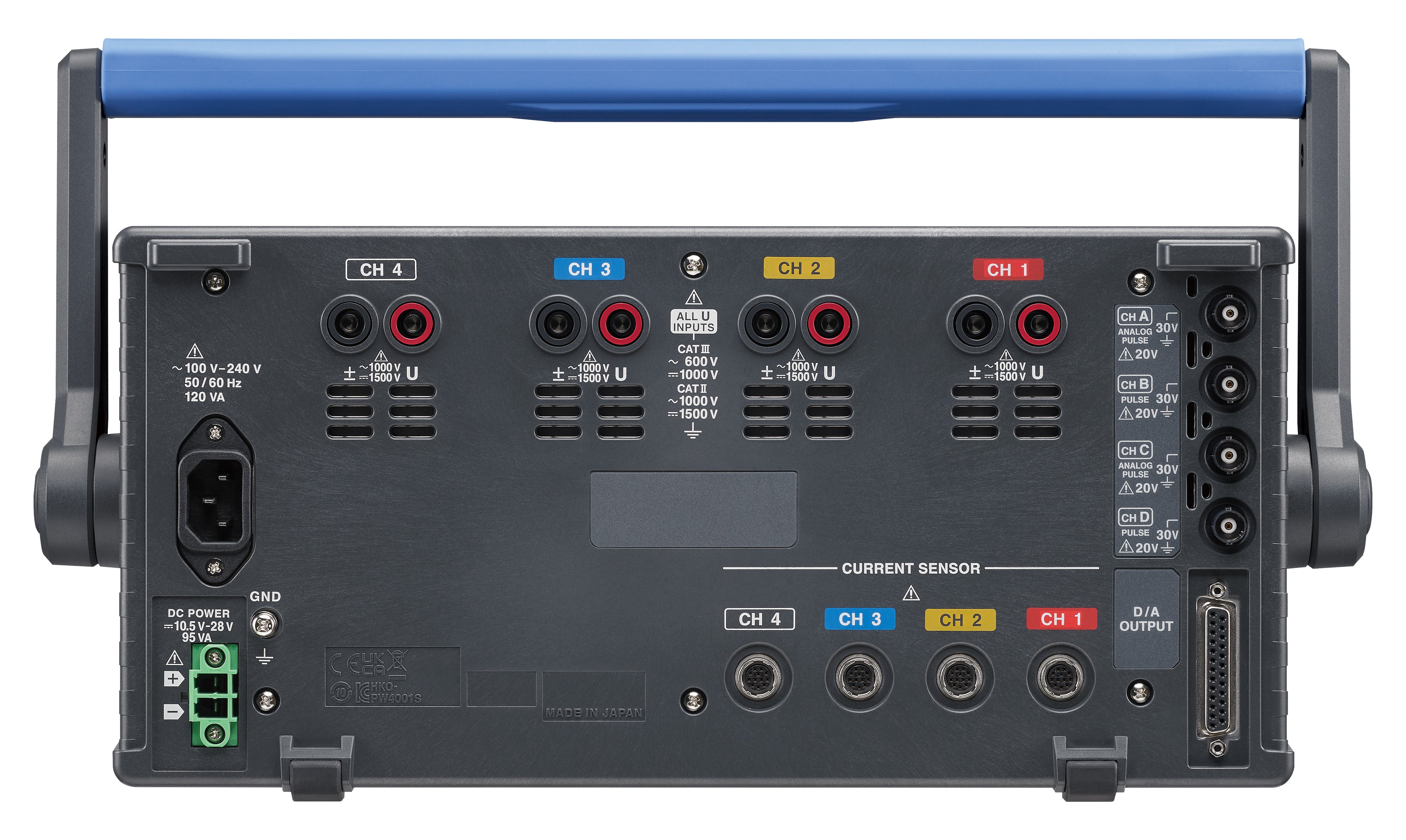

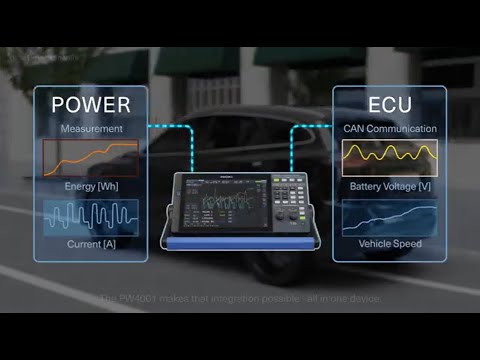

The power analyzer supports direct voltage input up to 1500 V DC (CAT II) and 1000 V DC (CAT III), enabling measurements in high-voltage environments such as photovoltaic inverters and other modern power conversion systems. Furthermore, its CAN input function allows the PW4001 to obtain battery voltage values via CAN communication, enabling power calculations without direct voltage probing. This is particularly important in environments where safety considerations make direct access to terminals difficult, such as testing fully assembled electric vehicles.

The combination of a fixed four-channel design, high accuracy, and wide frequency bandwidth makes the PW4001 ideally suited for efficiency testing of single-stage converters. Typical applications include energy storage system (ESS) converters and inverter stages used in heat pumps, compressor drives, and industrial motor drives, where DC input and AC output can be measured simultaneously.
