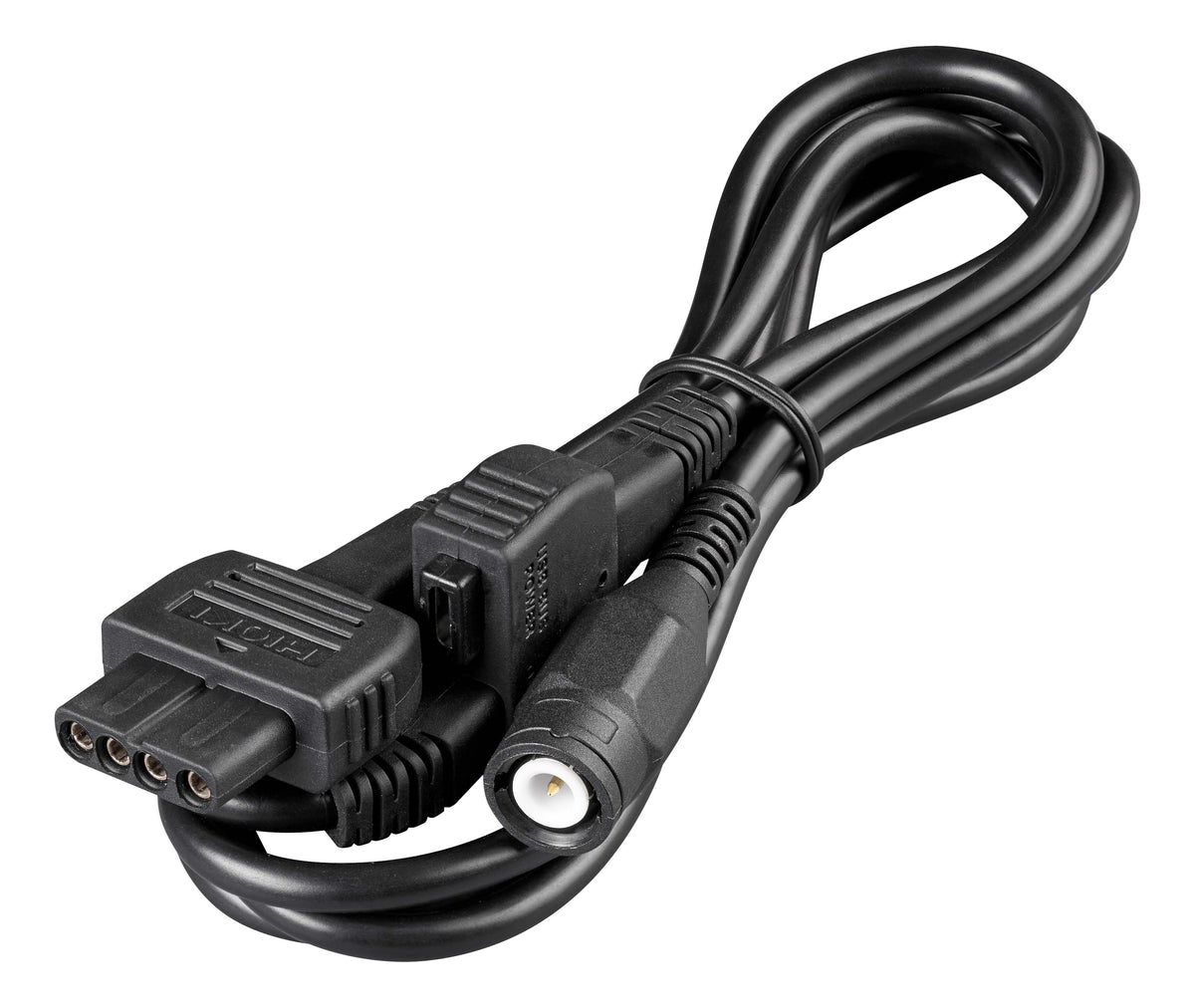

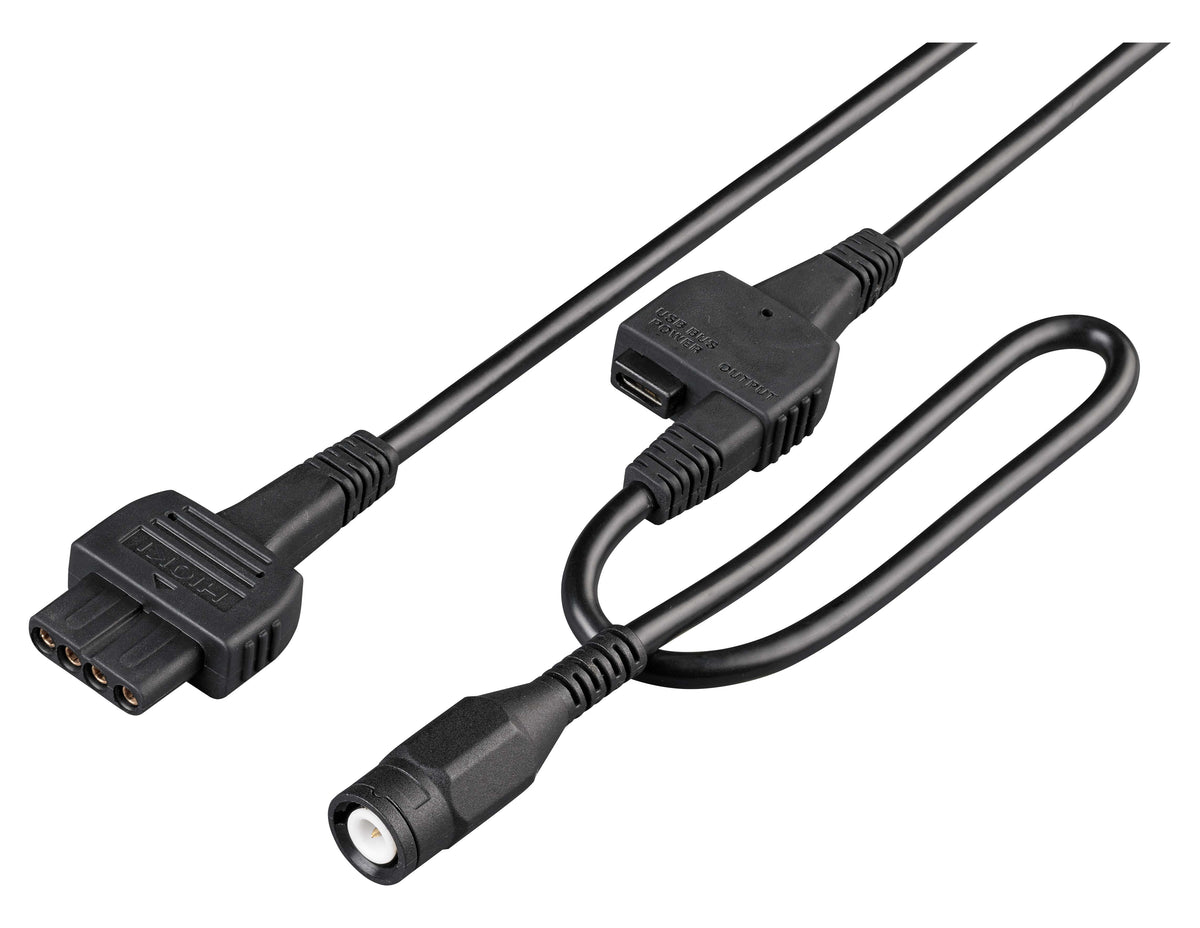

The L9097 is a dedicated connection cable for the CM4003 AC Leakage Clamp Meter. With a length of 1.5 m, it combines signal output and external power supply functionality in a single accessory. The cable features a BNC male output for direct connection to recorder inputs and a USB-C power input for supplying external power to the CM4003 during long-term measurements.
The cable is designed for use with the RMS and waveform output functions of the CM4003. It enables measured values or current waveforms to be transferred to a recorder or other data acquisition system while the instrument is powered from an external USB source.
A separate L9510 USB Cable is available to supply power to the USB-C input. For stationary measurement setups, the optional Z1013 AC Adapter can be used as a USB power source. For data acquisition systems equipped with 4 mm inputs, the optional 9704 Conversion Adapter provides a BNC female to banana plug interface.
The L9097 is offered as a replacement part. The cable is already included with the CM4003 and CM4003-90 and can only be used with these instruments. It is not a general-purpose BNC cable and is not intended for use with the CM4002, CM4002-90, or other clamp meters.
