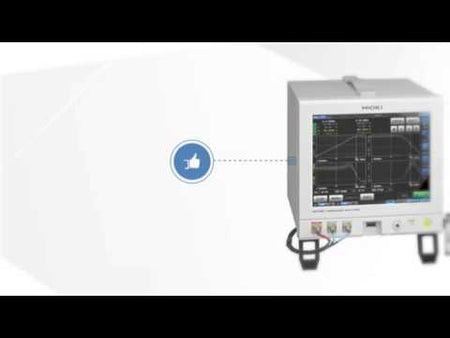

Hioki IM7581-02 Impedance Analyzer, 100 kHz-300 MHz, 100 mOhms to 5 kOhms, w/2m Cable, IM7580 Series

€20.608,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Hioki

Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

The IM7581 offers a top measurement time of 0.5ms over a 100kHz to 300MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.

Key Features

  • Measurement frequency 100 kHz to 300 MHz (5 digits resolution)
  • Measurement range
    • L: 0.0531nH to 0.795mH
    • C: 0.1061pF to 15.9uF
  • Fastest test speed of 0.5 msec
  • +-0.72% rdg. basic accuracy
  • Measurement parameters Z, Y, Phase Angle, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D, Q
  • Measurable range 100 megohms to 5 kilohms
  • Measurement modes - LCR mode & Analyzer mode
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode
  • Basic Specifications (Accuracy Guaranteed For 1 Year, Post-Adjustment Accuracy Guaranteed For 1 Year)
  • Interfaces EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
  • Display 8.4-inch color TFT with touch screen
  • Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.

Accessories

  • Test head
  • Connection cable
    • IM7581-01 Connection cable 1 m is bundled
    • IM7581-02 Connection cable 2 m is bundled
  • Instruction manual
  • LCR application disc (Communications user manual)
  • Power cord
