High Accuracy Digital Multimeter with 10 A Direct Input
High accuracy digital multimeter with True RMS, direct AC/DC current input up to 600 mA and 10 A, DC, AC and AC+DC voltage up to 1000 V, conductance, resistance, capacitance, frequency, temperature, 60000 count, CAT III 1000 V, CAT IV 600 V.
• 0.025% basic DC accuracy
• True RMS and 60000 count display
• Direct AC/DC current input up to 10 A
• AC/DC voltage up to 1000 V
• CAT III 1000 V, CAT IV 600 V
• Prototype validation and electrical verification
• Failure analysis on electronic assemblies and devices under test
• Direct AC/DC current measurement from low currents up to 10 A
• Conductance measurement on high resistance paths
• Temperature-correlated measurements with thermocouple support

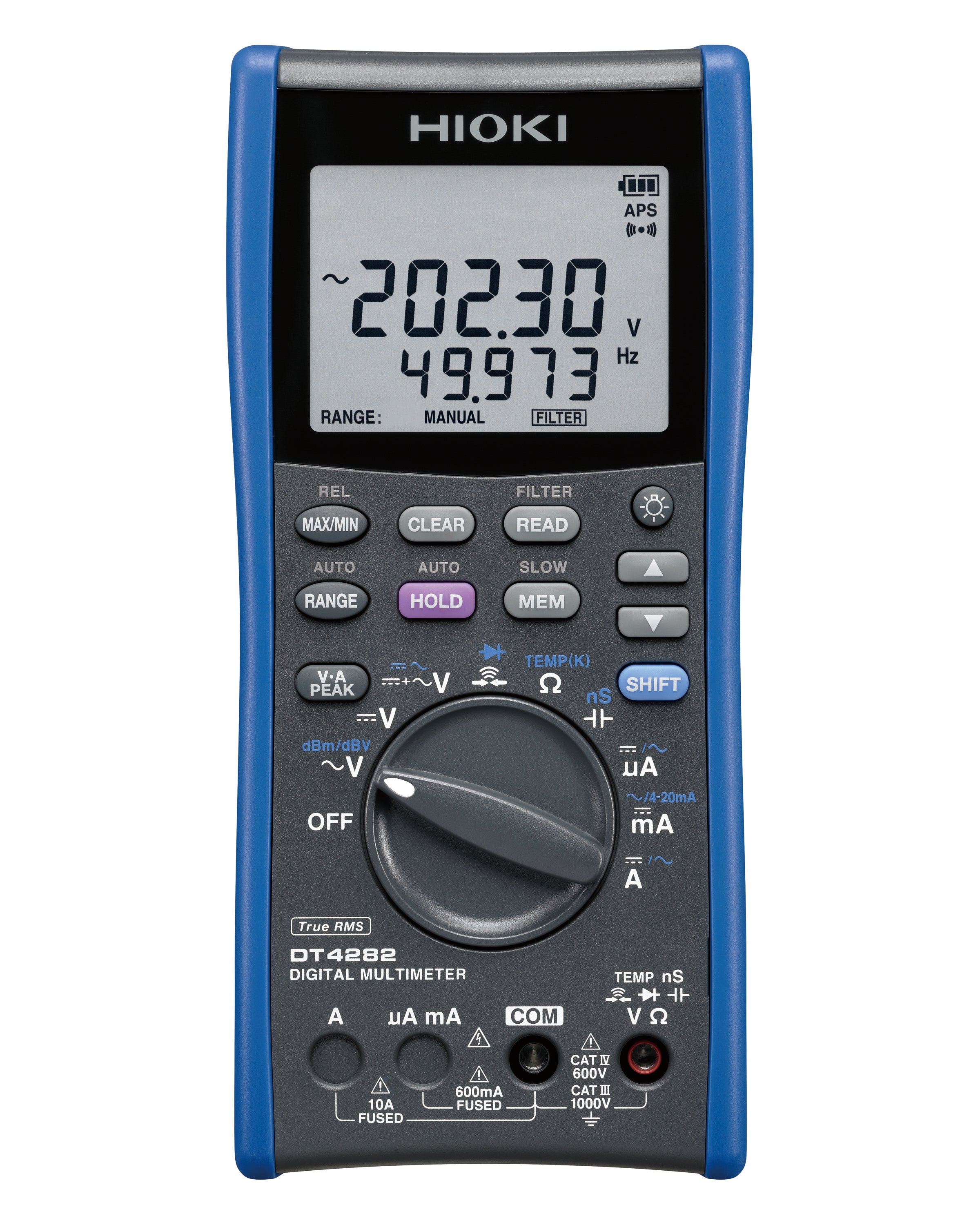

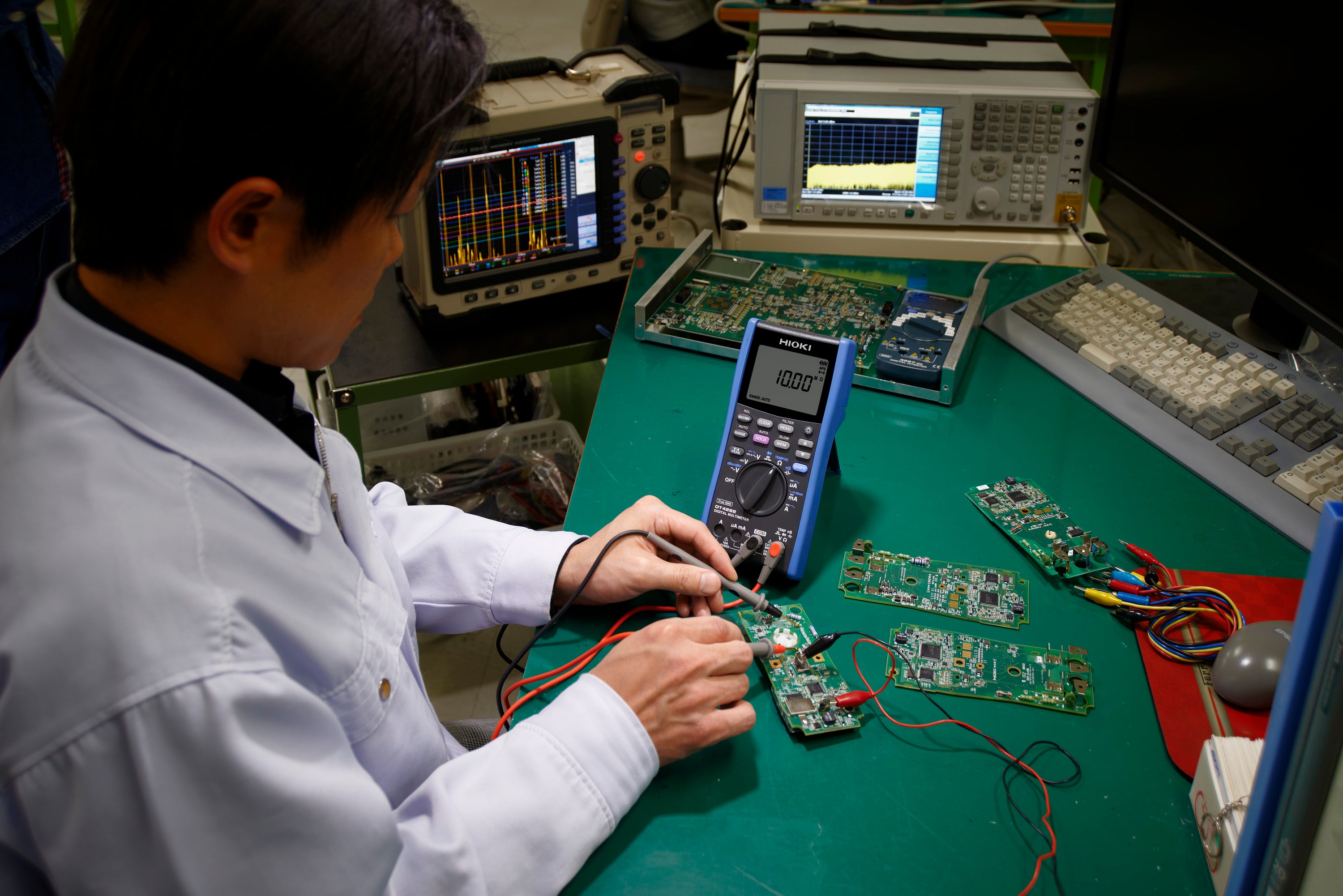

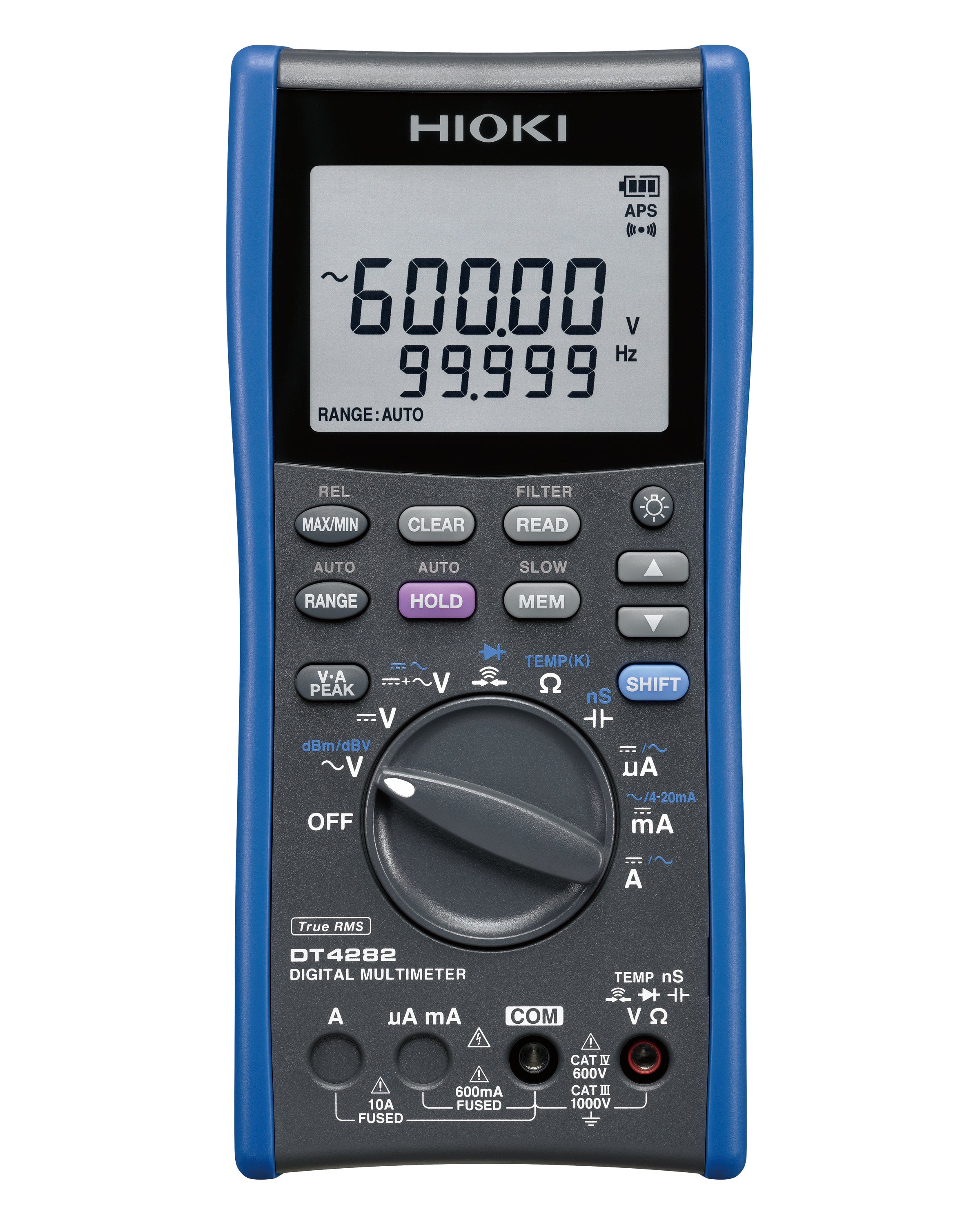

The HIOKI DT4282 is a battery-powered high-accuracy digital multimeter with 0.025% basic DC accuracy and a 60000-count display for verification, failure analysis, and service tasks on prototypes, assemblies, and electronic devices. The high accuracy enables precise detection of small voltage and current deviations. With direct AC/DC current measurement from 600 μA to 10 A and conductance measurement, the instrument supports precise electrical measurements directly on the device under test when moving the test object to a bench setup would be impractical.
The instrument measures DC, AC, and AC+DC voltage up to 1000 V. In AC+DC mode, the combined value can be displayed together with the AC and DC components. For direct AC/DC current measurement, it provides the ranges 600 μA, 6 mA, 60 mA, 600 mA, 6 A, and 10 A, allowing low currents and higher load currents to be measured directly on the instrument. Terminal shutters linked to the rotary switch block unused input terminals and help prevent incorrect test lead insertion when switching between voltage and current measurement.
Additional measurement functions include resistance, continuity, capacitance, and temperature measurement with a K-type thermocouple such as the optional DT4910. A diode test function supports forward-voltage threshold settings from 0.15 V to 3.0 V in seven stages, allowing adaptation to different diode types and forward-voltage characteristics. Conductance measurement complements resistance measurement when evaluating high-resistance paths.

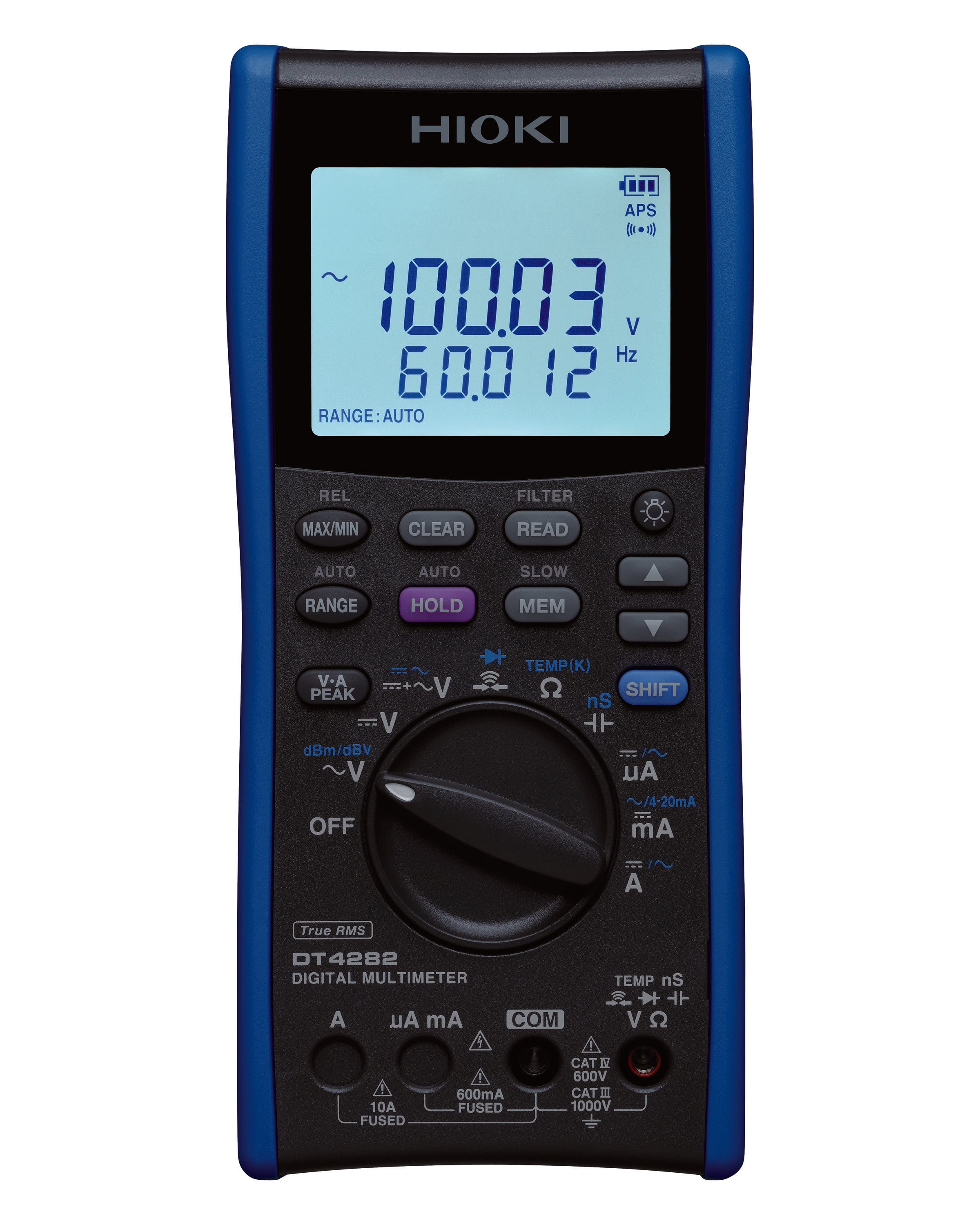

During AC voltage and AC current measurement, frequency is displayed simultaneously as a secondary reading. The instrument meets CAT III 1000 V and CAT IV 600 V safety ratings.
For PC-based applications, the DT4282 supports communication via the optional DT4900-01 Communication Package. With the DMM Communicator software, measurement data can be transferred to a computer, displayed as graphs, saved as CSV files, and inserted into Excel. Instrument settings can also be configured from the PC. This is useful for verification, failure analysis, and service tasks where measured values need to be documented or compared over time.
The DT4282 covers AC voltage measurements from 20 Hz to 100 kHz. In addition, the analog low-pass filter with a 630 Hz cutoff suppresses higher-frequency components so that the fundamental waveform can be evaluated more clearly. This is relevant when measuring inverter outputs or other signals with superimposed harmonic content.

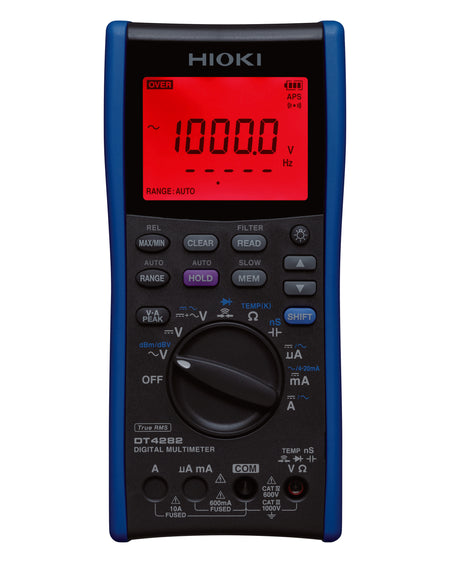

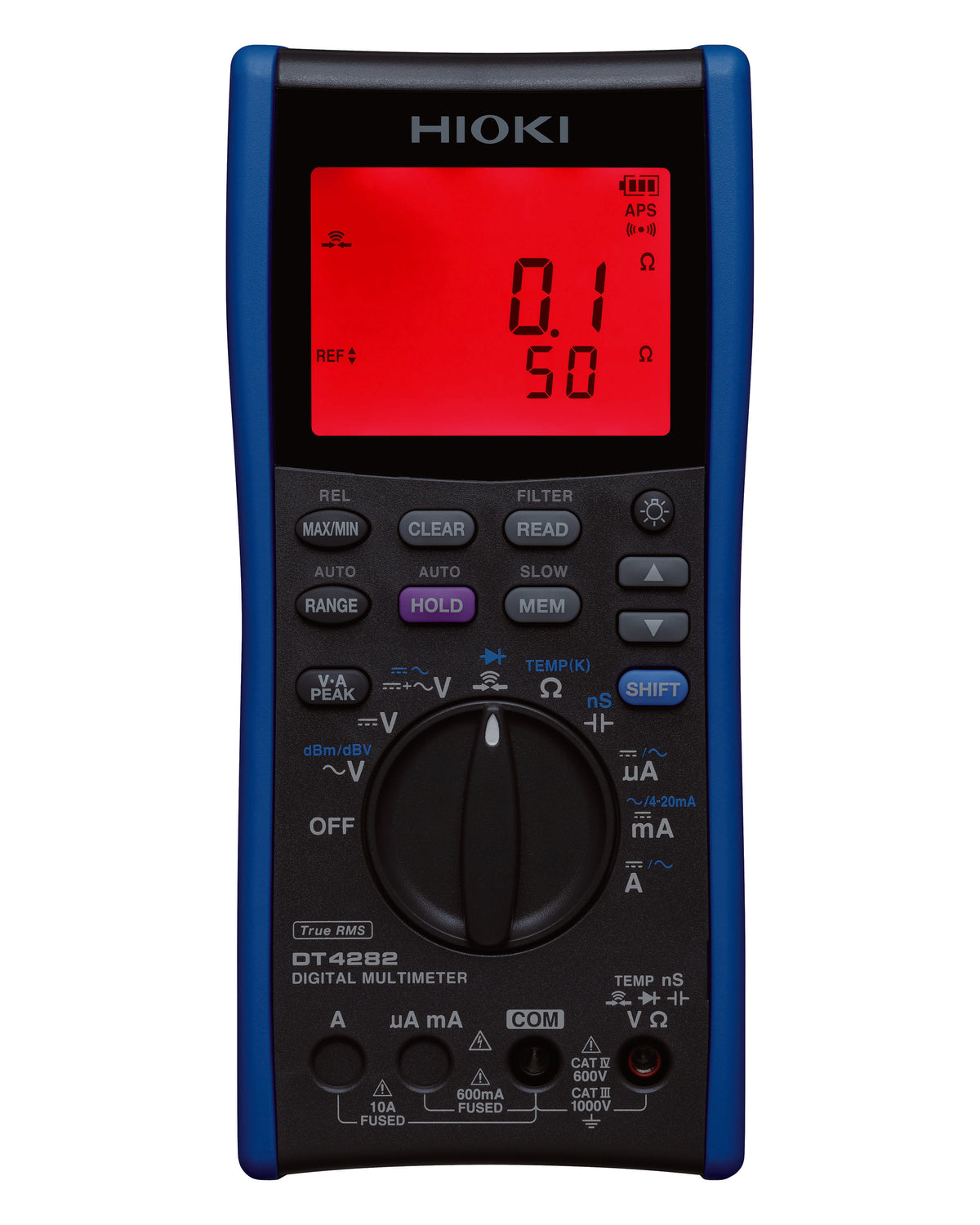

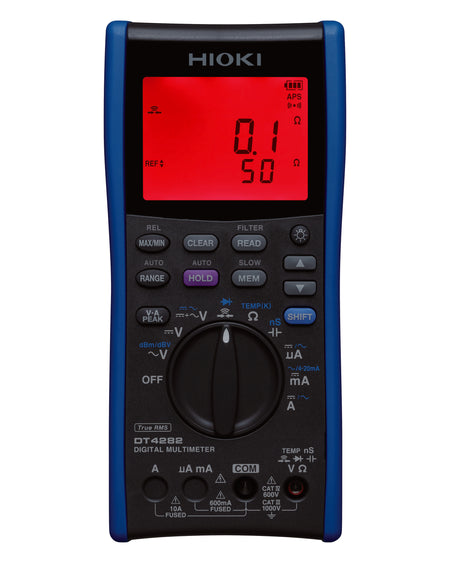

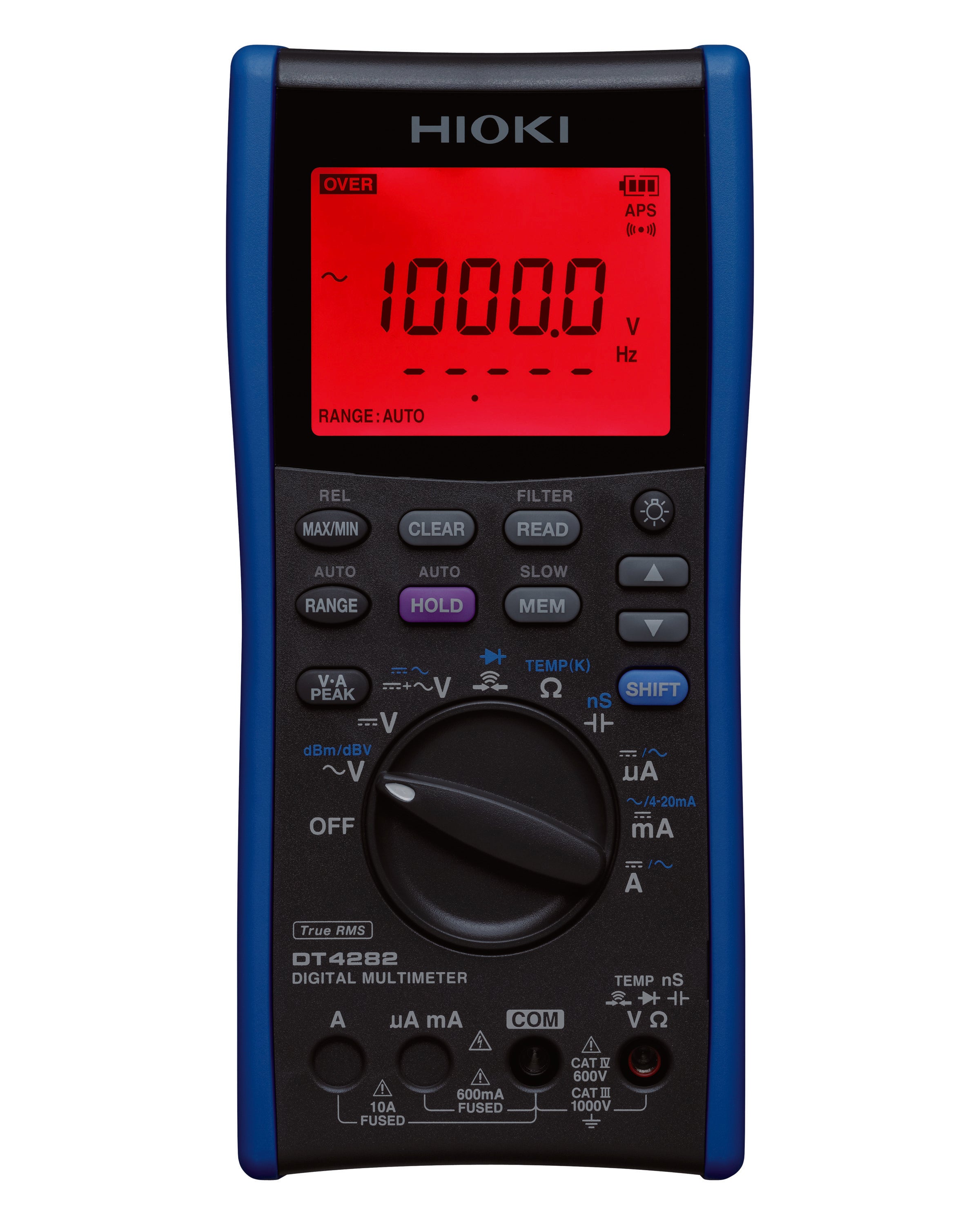

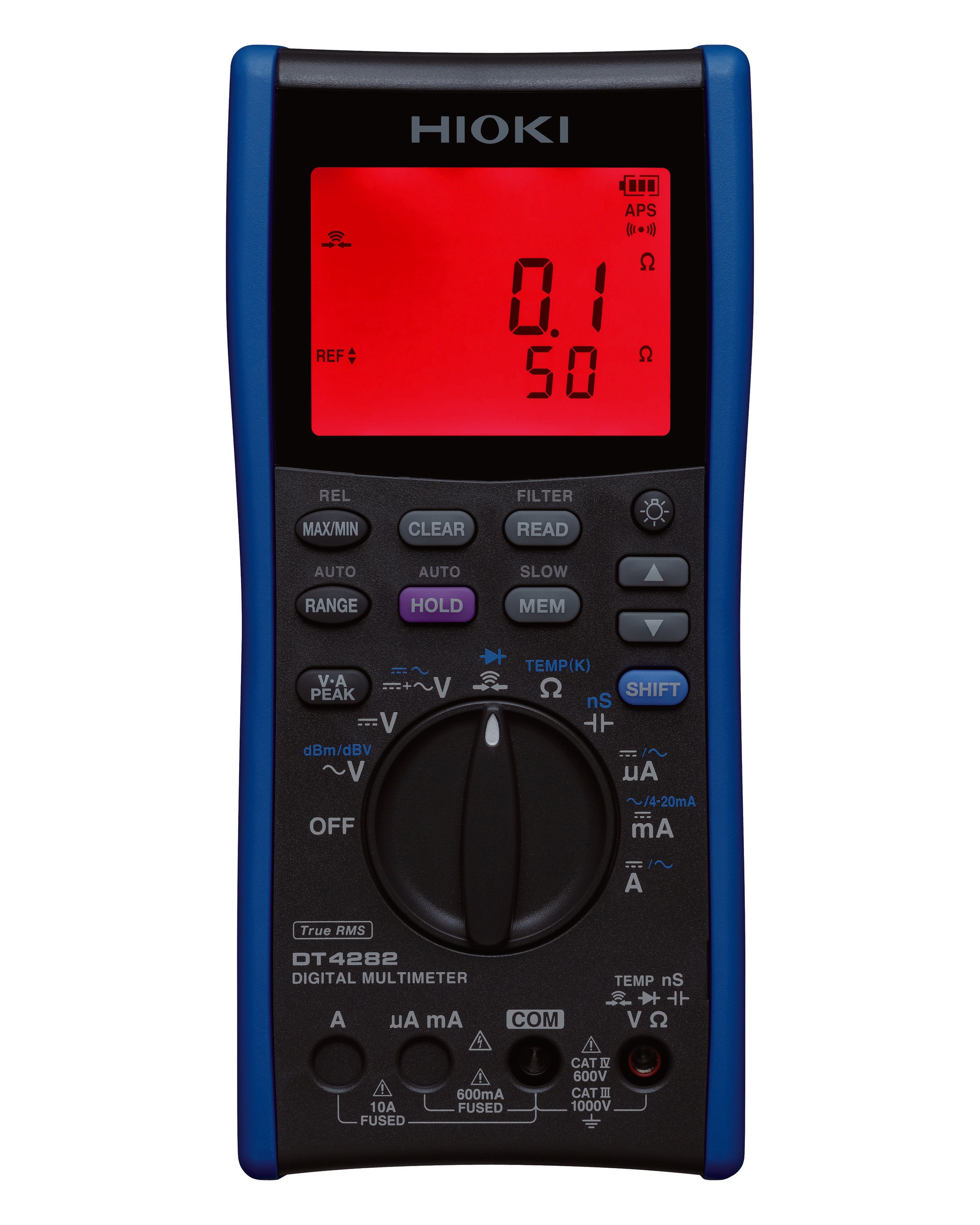

For verification and troubleshooting, the DT4282 provides MAX/MIN and peak-value measurement, as well as HOLD and AUTO HOLD functions. The relative display function shows subsequent readings relative to a reference value. Zero adjustment compensates offsets before measurement, for example when low-resistance values are evaluated. Excessively high input is indicated by the red screen backlight.
Measured values can be stored in the internal memory with up to 400 data points and transferred to a PC with the optional DT4900-01 Communication Package. For process-related measurements, 4 to 20 mA and 0 to 20 mA signals can also be displayed as percentage values.

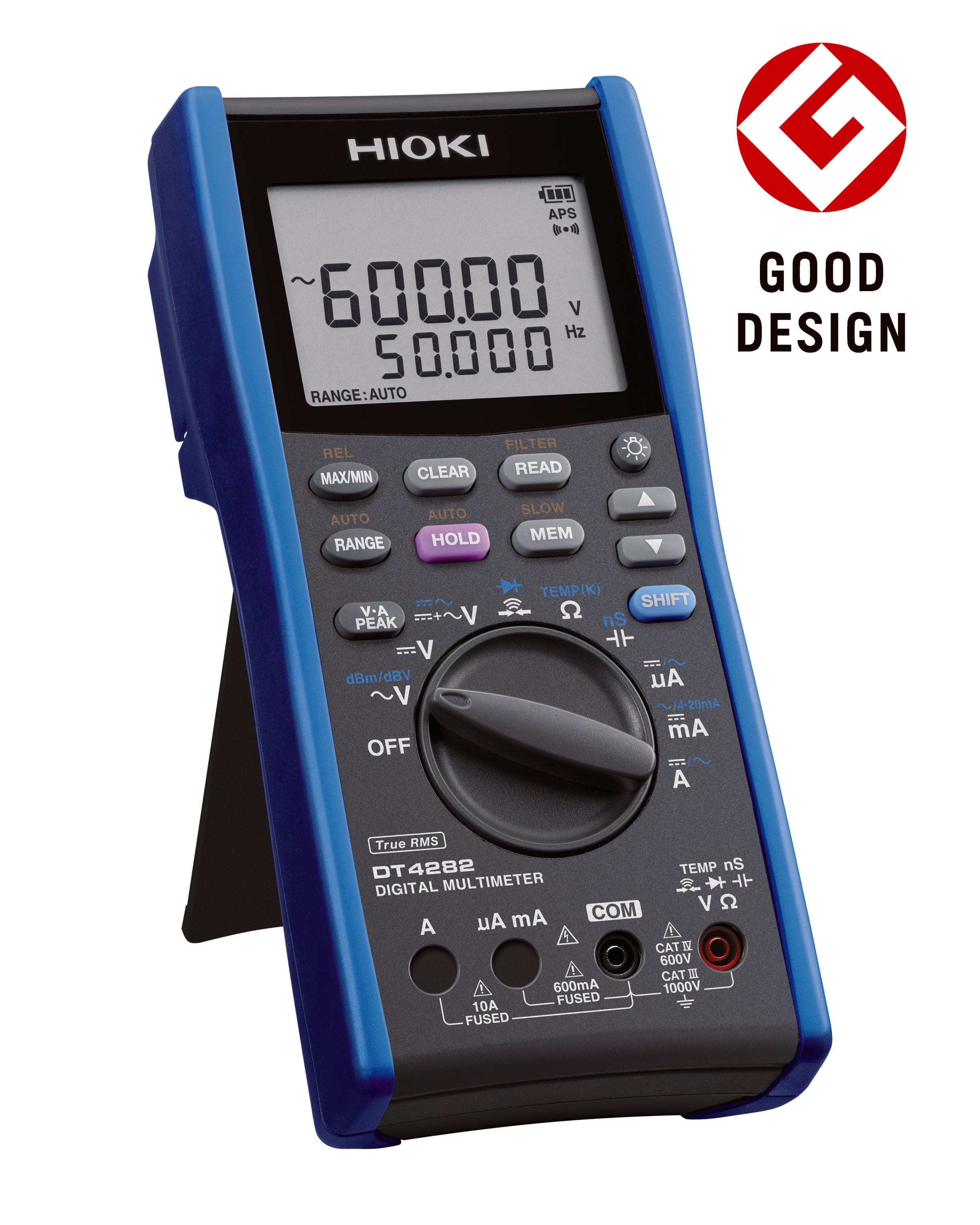

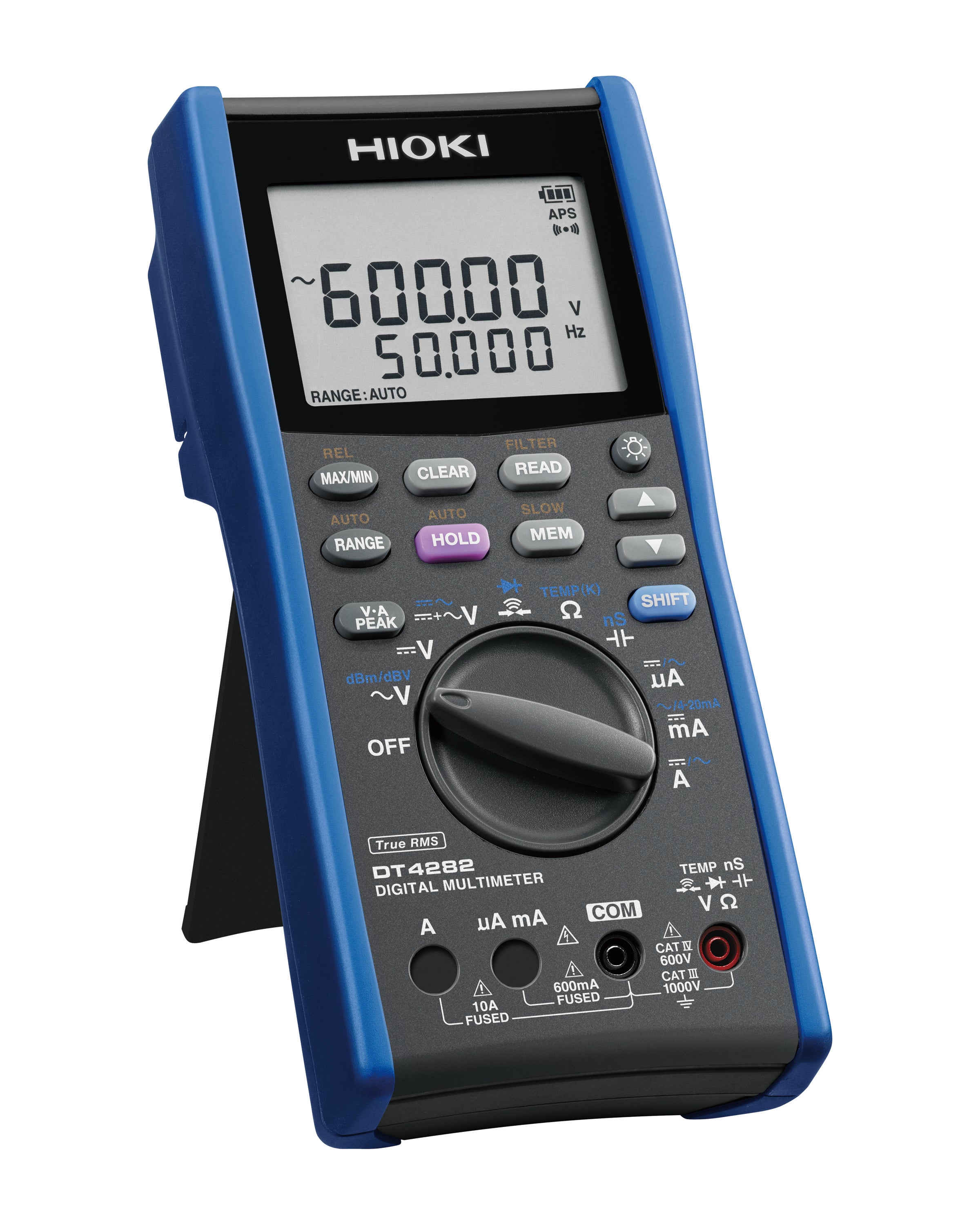

The DT4282 is designed for daily use in service, verification, and troubleshooting, with an operating temperature range from -15 °C to 55 °C, drop resistance from a height of 1 m, and a continuous operating time of approximately 100 hours with four AA alkaline batteries. The rear kickstand supports setup directly at the measurement location, while the test leads can be stored on the back of the instrument when the device is moved between different test objects.
The supplied L9300 Test Lead uses a movable finger guard instead of separate protective caps, allowing the exposed metal tip length to be adapted to the relevant measurement category without loose parts that can be lost during daily work.
The L9300 test leads are compatible with the HIOKI accessories L4934 and L4933. The L4934 enables temporary hands-free connection to conductors and terminals up to 4 mm in diameter, while the L4933 provides partially insulated, extra-thin contact pins for measurements at closely spaced test points.
Like all HIOKI digital multimeters, the DT4282 is developed in Japan and manufactured at HIOKI’s own production facilities in Japan.
• DT4282 High-Accuracy Digital Multimeter
• Instrument Protector
• L9300 Test Lead Set
• Instruction Manual
• Operating Precautions
• 4 × LR6 AA Alkaline Batteries
• DT4281 High-Accuracy Digital Multimeter
• DT4900-01 USB Communication Pack
• DT4910 K-Type Thermocouple
• C0202 Carrying Case
• C0207 Carrying Case
• L4930 Safety Test Leads
• L4933 Contact Tip Set
• L4934 Small Alligator Clip Set
• Z5020 Extra Strong Magnetic Strap
• Z5004 Magnetic Strap
