AC/DC High-Accuracy Current Clamp, 1000 A / 100 kHz
AC/DC current clamp using advanced fluxgate technology, 1000 A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 100 kHz, maximum conductor diameter 50 mm, cable length 3 m.
• AC/DC currents up to 1000 A
• Frequency Bandwidth DC to 100 kHz
• Basic accuracy: ±0.2% rdg.
• Operating temperature: -40 °C to 85 °C
• Output voltage ratio 2 mV/A
• WLTP testing (Worldwide Harmonized Light Vehicles Test Procedure) on commercial vehicles
• Evaluation of current consumption of automotive components like air compressors or power steering systems
• On-site efficiency and current evaluation of inverters and motors

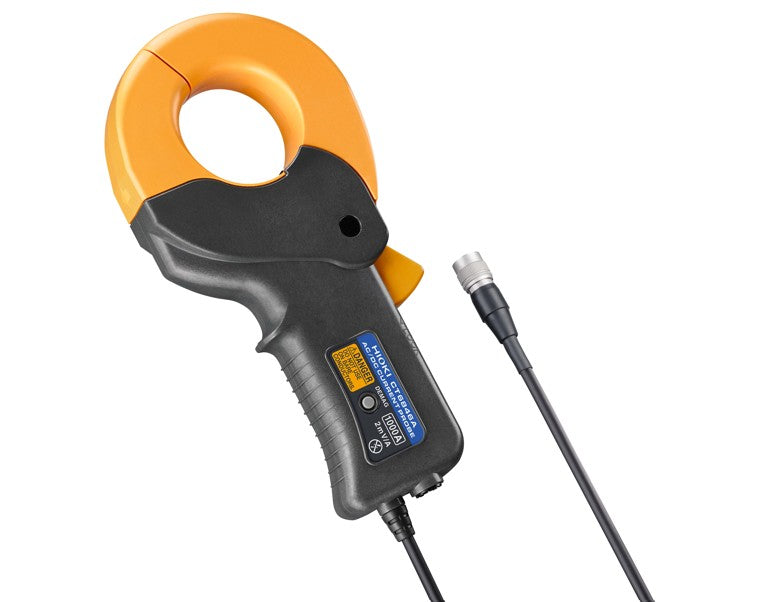

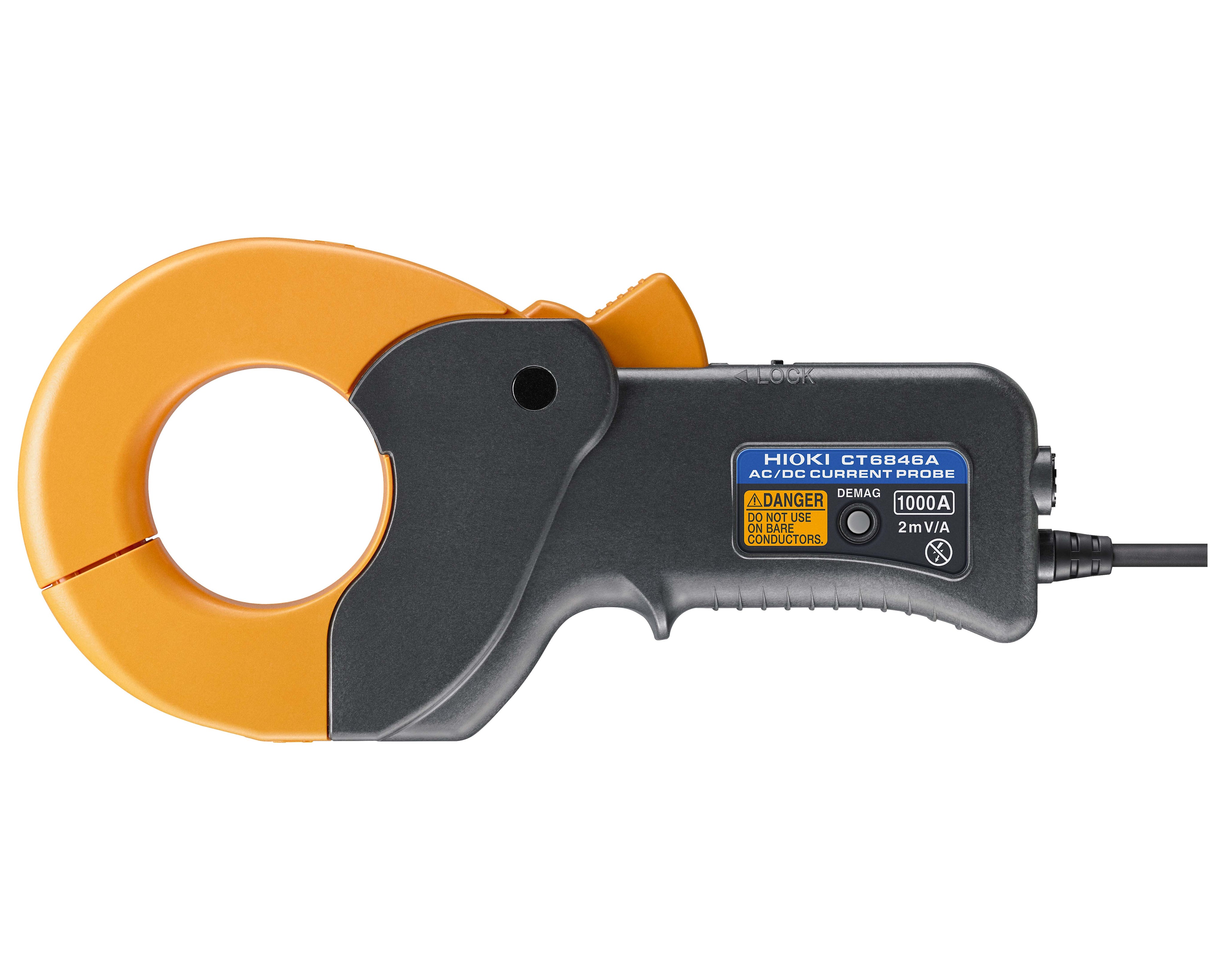

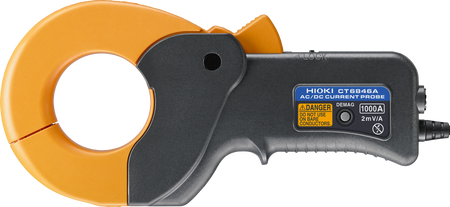

The CT6846A AC/DC Current Clamp combines the flexibility of a clamp-style sensor with high-precision measurement, achieving a basic accuracy of ±0.2% rdg. This allows for easy, non-intrusive current measurement without breaking the circuit while maintaining the accuracy needed for precise power analysis in demanding applications. Utilizing advanced fluxgate technology, it ensures outstanding stability and accuracy in both AC and DC current measurements. With a maximum current rating of 1000 A and a wide frequency bandwidth from DC to 100 kHz, it enables accurate detection of rapid current fluctuations. This capability makes it suitable for applications with demanding measurement requirements, such as the automotive and power electronics industries.
The current clamp delivers reliable performance across a wide temperature range of -40 °C to 85 °C, ensuring stability even in demanding environments such as engine compartments and outdoor testing locations. It is well suited for evaluating the current consumption of automotive electrical components, including air compressors and power steering systems.
Additionally, its high-accuracy clamp design allows for efficient on-site assessment of IGBT inverters (Insulated Gate Bipolar Transistors) and motor performance. Technicians can use it to conduct precise efficiency evaluations and current measurements, enabling them to quickly identify anomalies or performance degradation, ultimately supporting effective maintenance and diagnostics.
Phase shift correction functions of HIOKI Power Analyzers are supported, including the automatic correction feature of the PW8001 Power Analyzer. By integrating these features, it ensures accurate power analysis in dynamic and high-frequency applications, minimizing measurement errors and enabling higher precision in power evaluation.
Direct connection to HIOKI Power Analyzers and Memory Recorders is possible via the ME15W connector, which also supplies power to the CT6846A. Additionally, when combined with a HIOKI Sensor Unit (CT9555, CT9556, CT9557), it can be used with oscilloscopes and other data acquisition (DAQ) systems, providing a voltage output ratio of 2 mV/A.
Furthermore, its robust construction, 50 mm core diameter, and 3-meter cable length allow for flexible installation in various test environments.
The CT6846A is an essential tool for high-precision current measurement, including WLTP testing (Worldwide Harmonized Light Vehicles Test Procedure). With a durable design, precise fluxgate technology, and adaptability to various operating environments, it provides reliable measurement performance across both laboratory and field applications.
• CT6846A AC/DC Current Clamp
• Carrying Case
• Markup bands ×6
• Instruction Manual
• PW8001 8-ch Power Analyzer
• PW4001 4-ch Power Analyzer
• MR6000 Memory Recorder
• U8977 3-ch Current Unit
• LR8101 Data Logger
• LR8102 Data Logger
• M7103 Power Measurement Module
• CT9555 Sensor Unit (1 ch)
• CT9556 Sensor Unit (1 ch, wave/rms)
• CT9557 Sensor Unit (4 ch)
• CT9902 Extension Cable
• CT6833 (200 A) AC/DC Current Clamp
• CT6834 (500 A) AC/DC Current Clamp
• CT6841A (20 A) AC/DC Current Clamp
• CT6843A (200 A) AC/DC Current Clamp
• CT6844A (500 A) AC/DC Current Clamp
• CT6845A (500 A) AC/DC Current Clamp
• CT6847A (2000 A) AC/DC Current Clamp
• CT6830 (2 A) AC/DC Current Probe
• CT6831 (20 A) AC/DC Current Probe
