Portable Battery Tester, L2020 Angled Pin Type Lead
Portable battery tester for DC voltage, AC resistance at 1 kHz and temperature. Two voltage ranges (6V and 60V), four resistance ranges (3 mΩ to 3 Ω). Angled pin type lead, optional Bluetooth communication
Measures internal battery resistance at 1 kHz (AC-IR)
Four resistance ranges: 3 mΩ to 3 Ω
Two voltage ranges: 6 V and 60 V
Measurement speed: < 2 seconds
Optional Bluetooth communication with Z3210 adapter
Maintenance and inspection of lead-acid batteries
Diagnostics of UPS and backup power systems
Designed for VRLA batteries of all sizes and capacities

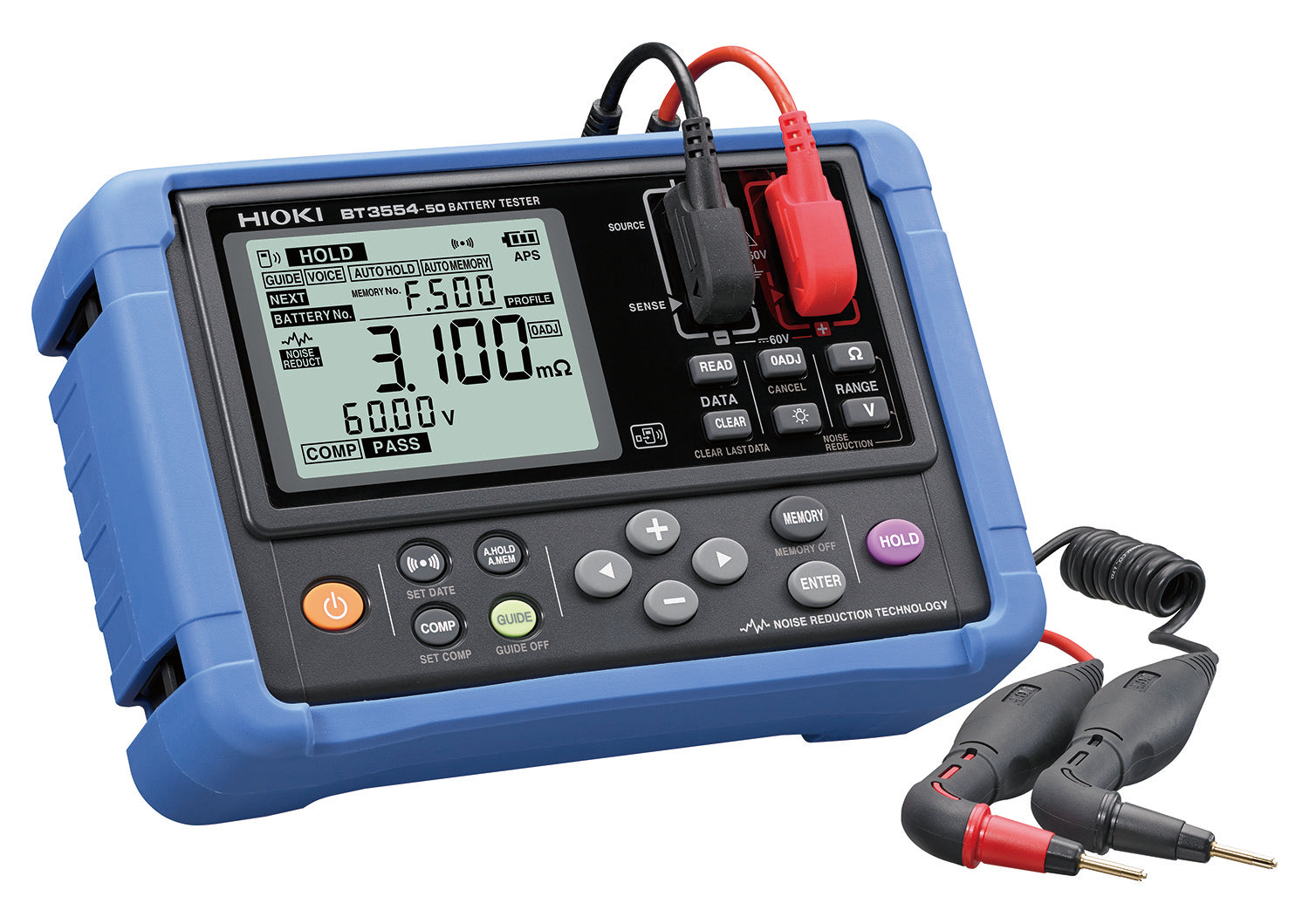

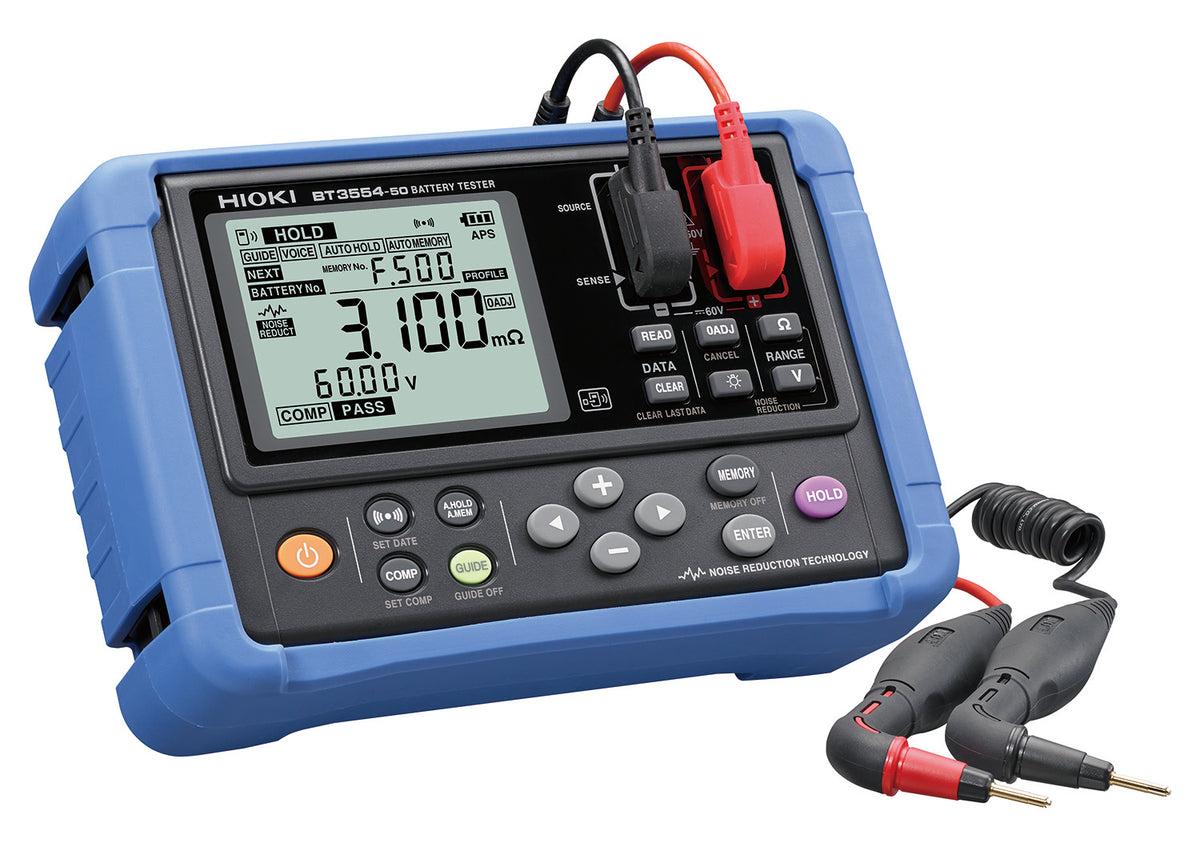

The portable battery tester BT3554-52 is a set consisting of the BT3554-50 instrument and the L2020 Angled Pin Type Lead. It is the latest addition to HIOKI's portfolio of portable battery testers, drawing on expertise since HIOKI's first battery tester was introduced in 1986. This versatile tester supports two voltage ranges (6 V and 60 V) and four resistance ranges (3 mΩ to 3 Ω), ensuring compatibility with a wide variety of battery sizes and capacities. Batteries do not need to be disconnected from the system for measurement, which significantly simplifies the testing process and also saves time.
With a measurement speed of less than two seconds, this portable battery tester is ideal for use in tight or hard-to-reach areas. Additionally, HIOKI's noise reduction technology ensures accurate measurements even in noisy environments. The integrated comparator function (PASS, WARNING, FAIL) provides instant assessment of the battery status based on user-defined thresholds.

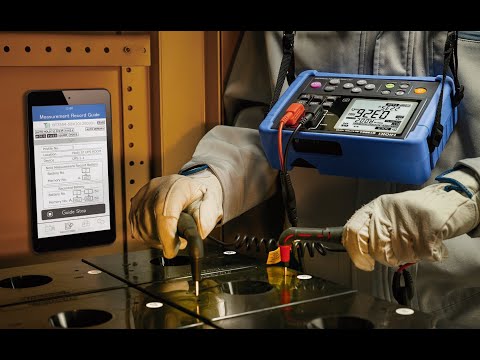

The BT3554-52 simplifies work with its practical data management features. Up to 6000 measurement records can be stored in its internal memory, and when paired with the optional Z3210 Bluetooth adapter, measurement data can be wirelessly transferred to a smartphone or tablet. The free GENNECT Cross app enables real-time data analysis, report generation, and transfer of pass/fail profiles to the tester, enhancing efficiency for maintenance teams.
A USB interface allows the battery tester to connect to a PC for convenient management of measurement data. The free GENNECT One Windows software lets users control the device as well as transfer and process measurement values. Alternatively, measurement values can be sent directly to an Excel sheet by setting the battery tester as a Human Interface Device (HID) on the PC.
The wide range of measurement accessories includes various test leads for different battery contacts or test contacts as well as for diverse installation scenarios. The BT3554-52 is designed for field use and features convenient auto-hold and auto-memory functions that automatically detect new measurements and save results without requiring any input from the technician.
BT3554-50 Portable Battery Tester
L2020 Angled Pin Type Lead
C1014 Carrying Case
Z5038 Zero Adjustment Board
Z5041 Instrument Protector
Z5050 Fuse Set
Neck strap
USB cable (A -> Mini B)
Application software CD (GENNECT One)
AA alkaline batteries (LR6) x8
User manual
BT3554-50 Portable Battery Tester
BT3554-51 Portable Battery Tester
BT3554-91 Portable Battery Tester
BT3554-92 Portable Battery Tester
Z3210 Bluetooth Adapter
L2020 Angled Pin Type Lead
9465-10 Straight Pin Type Lead
9465-90 Tip Pin
9772 Straight Pin Type Lead
9772-90 Tip Pin
9467 Large Clip Type Lead
9460 Clip Type Lead with Temperature Sensor
9466 Remote Control Switch
9451S Temperature Probe (10 cm)
9451 Temperature Probe (150 cm)
C1014 Carrying Case
Z5038 Zero Adjustment Board
Z5041 Instrument Protector
Z5050 Fuse Set
