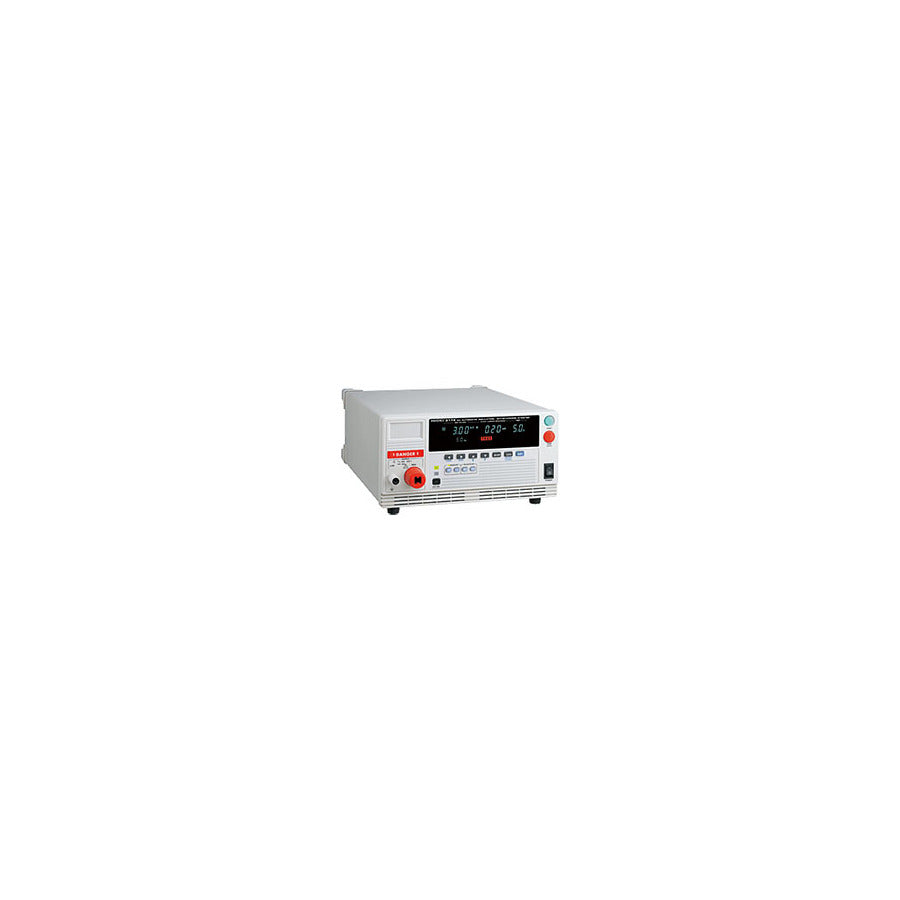

Hioki 3174 Hipot / Insulation Tester

€4.168,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Hioki

Hioki is a Japanese manufacturer specialising in high-precision electrical measuring instruments for current, power, and energy analysis across research and production environments.

Hipot / Insulation Tester

  • Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
  • Full remote operation when used in combination with the Safety Test Data Management Software 9267
  • Save up to 8 test settings each for the withstanding and insulation testing modes
  • Precise test voltage without power voltage dependency is generated using the PWM method
  • RS-232C Interface Included
  • GPIB interface on Model 3174-01
  • 1-Year Warranty

Contact check and full remote control


Basic Specifications
Testing voltage 0.2V AC to 5.00kV AC
Voltage setting method Digital setting, Setting resolution: 0.01kV
Waveform/ Frequency Sine wave (Distortion ratio 5% or less at no load), 50/60Hz selectable
Current measurement range 0.01mA to 20.0mA, True RMS rectified (digital display)
Measurement range 10mA (0.01mA resolution), 100mA (0.1mA resolution)
Voltage meter Accuracy: ±1.5% rdg. (1000 V or more), ±15V (less than 1000V), True RMS rectified

Please see Data Sheet for complete specifications.
