Home » GW Instek GCP-500 Current Probe, AC/DC, 100 A, 500kHz, 600V, CAT3, 11mm, 150 A, 1m, GCP Series
GW Instek
SKU: 39063.1 | MPN: GCP-500
New

GW Instek GCP-500 Current Probe, AC/DC, 100 A, 500kHz, 600V, CAT3, 11mm, 150 A, 1m, GCP Series

€871,00
Available for Backorder
Stock expected in 30 days
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

GW Instek

GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.

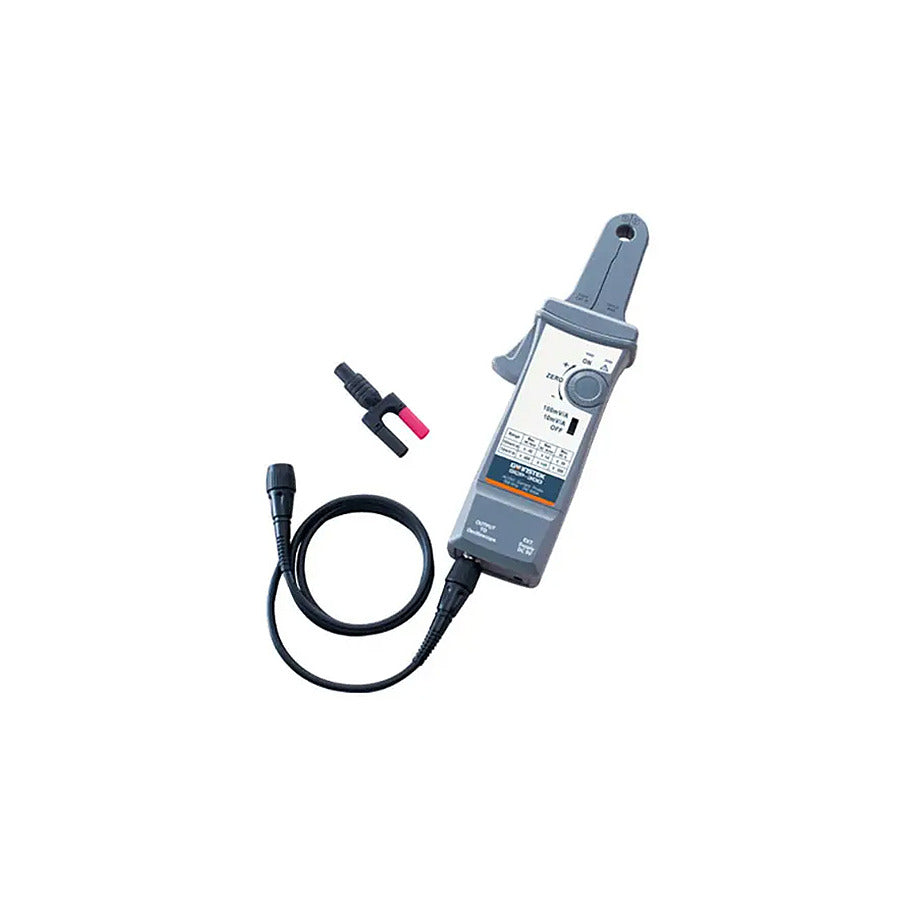

Instek GCP-500 AC/DC Current Oscilloscope Probe

Features and Specifications
  • Bandwidth : DC ? 500 kHz
  • Max. Measure Range: 150A and 15A (20mV/A) (200mV/A)
  • Overload Indicator
  • Designed to measure AC and DC current

The GCP-500 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 150 amps Peak (100A RMS). The GCP-500 current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter.

What's in the Box
  • One Instruction Manual (English version).
  • One BNC TO BNC Coaxial Cable Line, Length 100cm.
  • One AC power converter (AC voltage depending on region).
  • One BNC to banana plug adapter, designed with color fool proof design to avoid polarity mistake when connecting to digital meter (for use with digital meter).
