Home » GW Instek GCP-1030 Current Probe, AC/DC, 30 A, 100MHz, 300V, CAT1, 5mm, 50 A, GCP Series

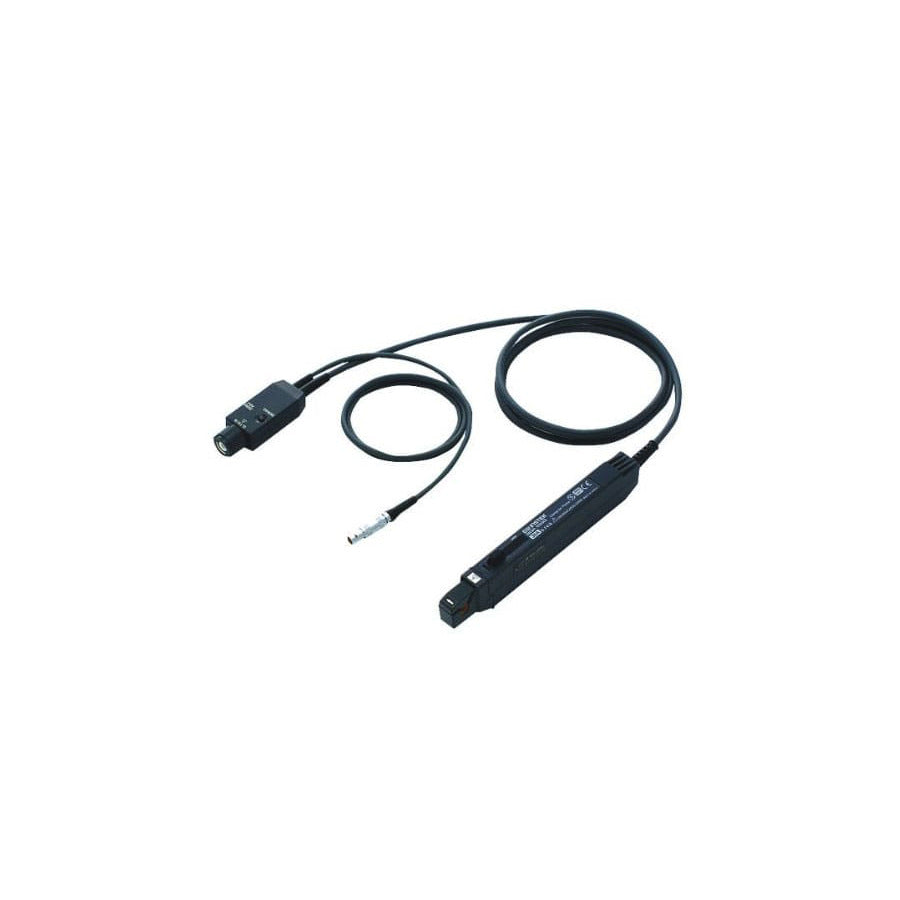

GW Instek GCP-1030
GW Instek GCP-1030
GW Instek
SKU: 27989.1 | MPN: GCP-1030
New

GW Instek GCP-1030 Current Probe, AC/DC, 30 A, 100MHz, 300V, CAT1, 5mm, 50 A, GCP Series

€4.565,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

GW Instek

GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

Instek GCP-1030 AC/DC Current Oscilloscope Probe

Features and Specifications

  • Bandwidths : DC ∼ 50 MHz and 100 MHz
  • High bandwidth, From DC ∼ 100 MHz
  • DC and AC Measurements
  • Better than 1% Accuracy
  • Direct Connection to High-impedance 1 MΩ BNC Oscilloscope Inputs
  • Demagnetize Switch : Demagnetizes the Core to Remove any Residual Magnetism
  • Simple Overload Protector Prevents Damage Due to Overheating

The GCP-1030 device can be directly connected to a BNC input connector of a waveform measuring instrument such as an oscilloscope or recorder, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.

For easily observing current waveforms under a wide bandwidth and with high sensitivity, the GCP-1030 clamp on current probe only needs to be connected to the BNC input of a data logger or oscilloscope and clamped onto a conductor to start measurement.
