Home » GW Instek AFG-3051 Arbitrary Function Generator, 50 MHz, 200 MS/s, 1 Mpts, 16 bit, AFG-3000 Series
GW Instek
SKU: 28384.1 | MPN: AFG-3051
New

GW Instek AFG-3051 Arbitrary Function Generator, 50 MHz, 200 MS/s, 1 Mpts, 16 bit, AFG-3000 Series

€1.801,00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

GW Instek

GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

Instek AFG-3015 50MHz Arbitrary Function Generator

Features

  • Wide frequency range from 1uHz to 50MHz
  • Supports many types of signal applications
  • High 200MSa/s sampling rate
  • 16-bit Amplitude Resolution
  • Output from any section of 1M-point-long waveforms
  • 4.3" high resolution LCD display
  • Four ways to generate arbitrary waveforms from Front Panel Operation, CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary Waveform Editing PC Software
  • Impedance switch / on-screen help

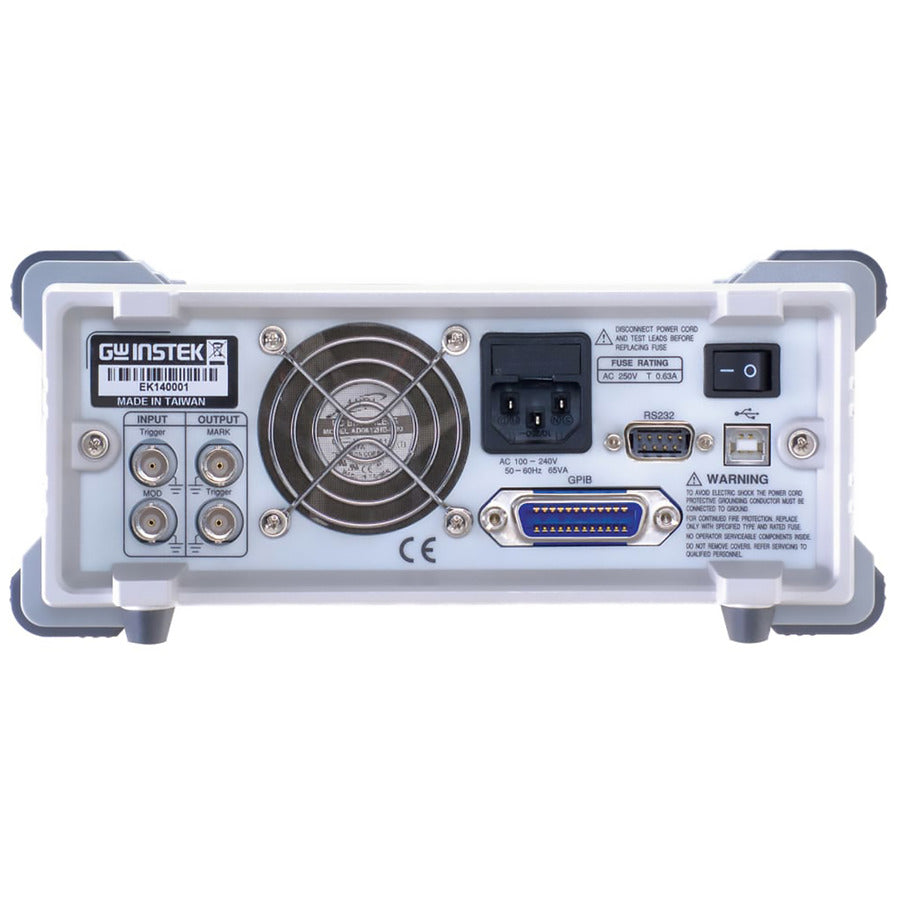

  • USB, RS-232, GPIB interface support

Specifications

  • Sine, Square, Ramp, Pulse, Noise, Sinc standard waveforms
  • Internal and external LIN/LOG sweep with marker output
  • Int/Ext AM, FM, PWM, FSK modulation
  • Modulation/sweep signal output
  • Burst function with internal and external triggers without marker output
  • Store/recall 10 groups of setting memories
  • Output overload protection

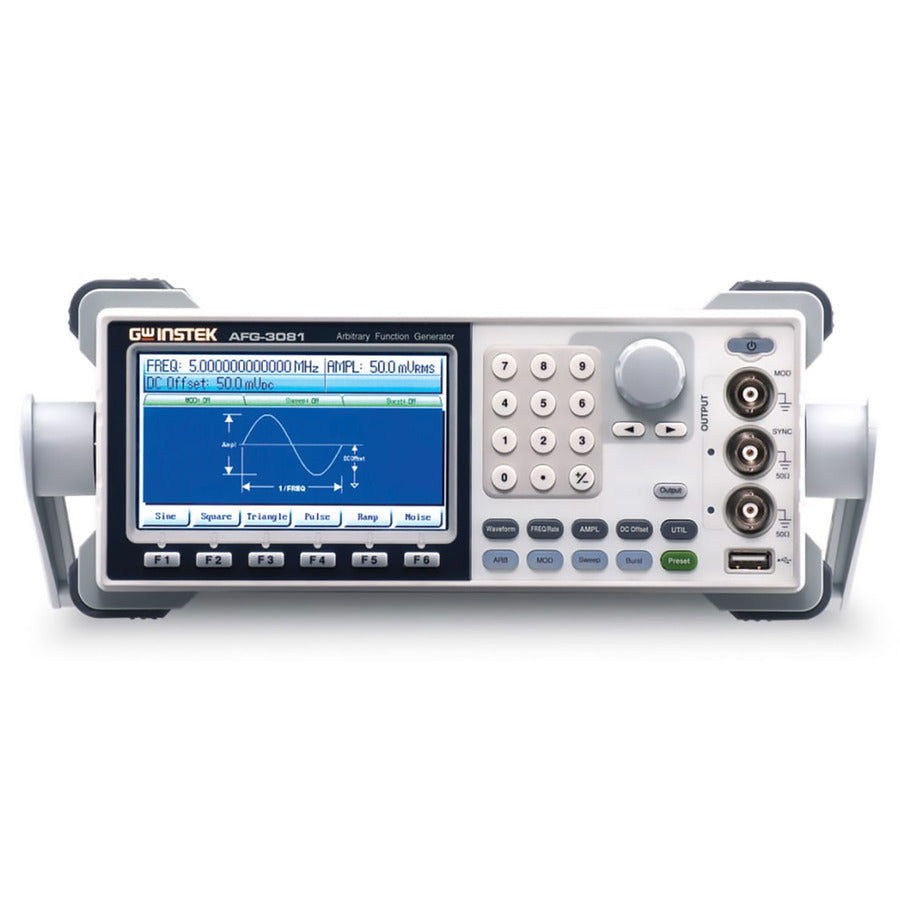

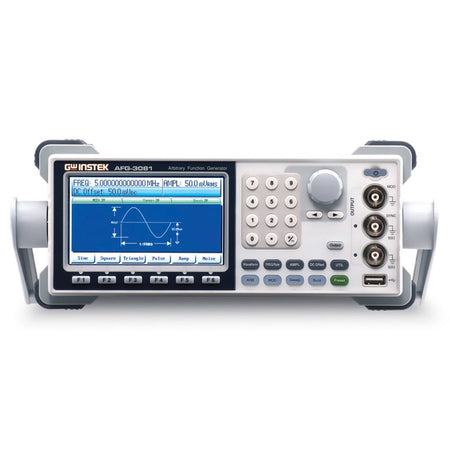

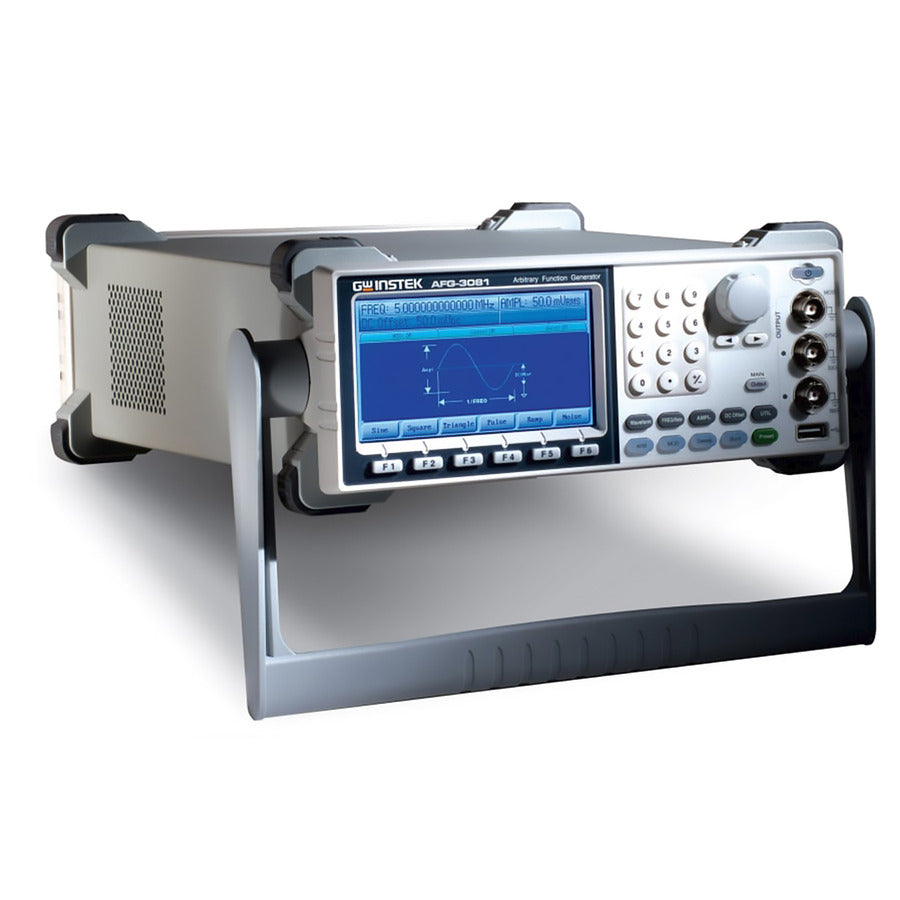

The AFG-3000 Series is an arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users' diversified needs.

The AFG-3000 Series also provides a high 16-bit resolution, 200MSa/s sample rate, and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency. In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveforms can be displayed through a 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, users can use dedicated PC software or IEEE488.2 commands to edit waveforms.

In The Box

  • Power cord x 1
  • GTL-110 x 1 Test Lead
  • Instruction Manual x 1
