EA Elektro Automatik is a German manufacturer of programmable power supplies and electronic loads designed for efficiency testing, R&D, and industrial automation.

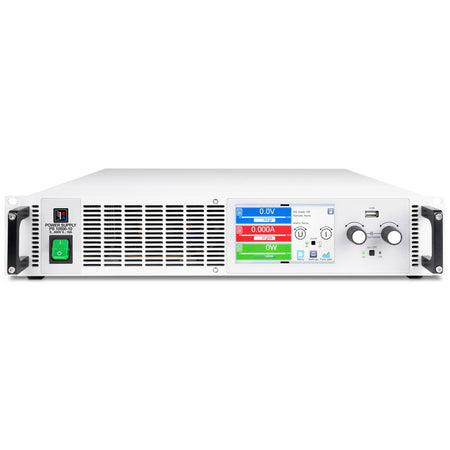

The DC laboratory power supplies in the PS 10000 series from EA Elektro-Automatik convert the energy from the grid into a regulated DC voltage with an efficiency of over 96%.
Specs and Features
Voltage 0 to 750 V, Current 0 to 12 A, Power 0 to 3 kW
2 Unit 19-inch Rack Mount Frame
5-inch TFT color touch display with intuitive user interface
Wide range input, 110 V- 240 V ±10 % Single Phase AC
Regulation mode CV, CC, CP with fast crossover
Active Power-Factor-Correction, typical 0.99
Very high efficiency up to over 95 %
Flexible power regulated DC output stages (autoranging)
16 bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
Galvanically isolated Share-Bus for parallel operation
Master-Slave bus for parallel operation of up to 64 units
Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

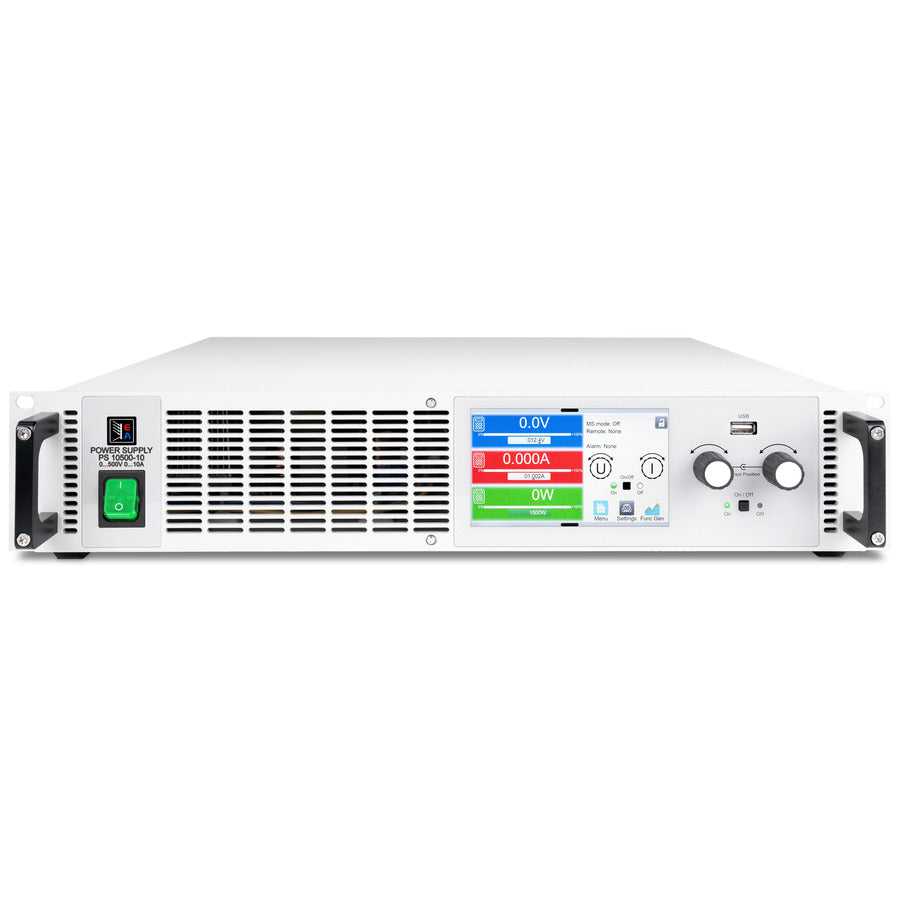

Front Panel Description PS 10000 2U
Main switch
TFT Control Interface, interactive operation and display
Rotary knob with push-button for settings and control
USB Host, use USB·stick for data logging and sequencing
Rotary knob with push-button for settings and control
On / Off push-button with LED status display
Rear Panel Description PS 10000 2U
Slot for Interfaces
Master-Slave-Bus interface to set up a system for parallel connection
Share·Bus Interface to set up a system for parallel connection
Output voltage Remote Sense input terminal
Output terminal, Copper busbar
Mains input terminal
Ethernet interface
USB interface
Connector {0815 Female) for isolated analog program, monitor and other functions
Grounding connection screw {PE)
The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PS 10000 range. Furthermore, typical laboratory functionality is provided.
True Autoranging
All 10000 series devices offer true autoranging capabilities. Autoranging allows the device to deliver a higher voltage at lower currents and a higher current at lower voltages than a power supply or load with a conventional square wave output/input characteristic.
Power supplies and loads with autoranging provide users with a wider range of voltages and currents without having to oversize the devices. Benefits: For use in a variety of test applications, a single device provides a wider range of test applications and versatility.
AC Connection
The DC power supplies in the PS 10000 series are equipped with an active PFC which provides high efficiency at low energy consumption. Furthermore, the devices in this series provide a wide input voltage range. This extends from 1-phase 110/120 V up to 240 V AC mains supply and 3-phase 208 V to 380 V, 400 V, and 480 V AC mains supply. The devices can be operated in the majority of global mains supply. They adjust automatically, without additional configuration, to the available supply. In a 110/120 V and 208 V AC grid, a derating of the output power is set.
DC Output
The output of the bidirectional power supply PS 10000 with a DC voltage of 0 - 60 V up to 0 - 2000 V allows currents of 0 - 6 A up to 0 - 1000 A. The flexible output stages (autoranging) provide the user with a wide voltage, current and power range and hence a wider field of working than traditional power supplies.
DC Connection
Connection of the DC output is via a copper rail on the back side of the device. If a system with higher performance is required. the devices are simply connected in parallel. With minimal effort devices can be linked with the vertical copper rails. A cover for contact protection is provided.
In The Box
1 x Power supply device
2 x Remote sensing plugs
1 x 1.8 m (59 ft) USB cable
1 x Set of DC terminal covers
1 x Sense terminal cover
1 x USB stick with documentation and software
1 x Cable tie for strain relief
