B&K Precision 9206B DC Power Supply, Multi Range, 150V, 10A, 600W, NO GPIB, 9200B Series
Couldn't load pickup availability
Ask an expert!
B&K Precision
B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.
9206B 600W Multi-Range 150V/10A DC Power Supply
Specs:
- Max Voltage: 150 V
- Max Current: 10 A
- Max Power: 600 W
Series Features:
- High programming and readback resolution of 1 mV/0.1 mA
- Output timer function
- List mode programming
- Store and recall up to 72 instrument settings

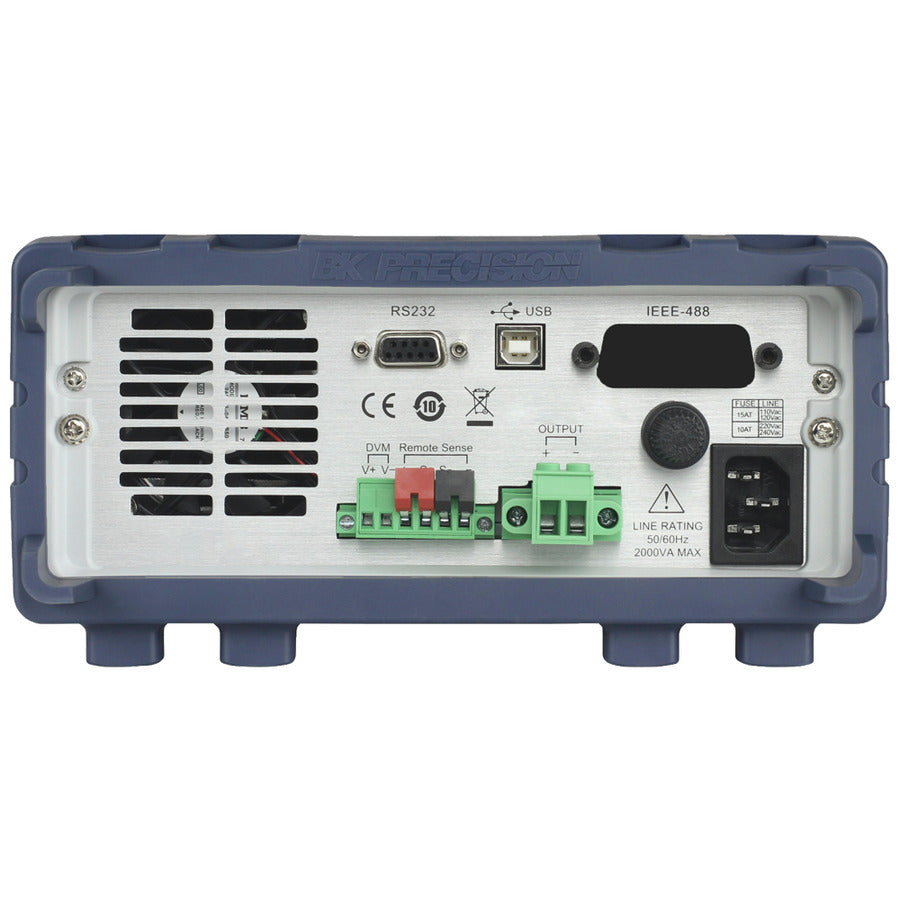

- Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
- Remote sense
- Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
- NI-certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
- Compact 19-inch half-rack form factor allows for side-by-side rack mounting of two units
Includes: User manual, power cord, and certificate of calibration
The B&K 9206B Power Supply can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, this multi-range power supply automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

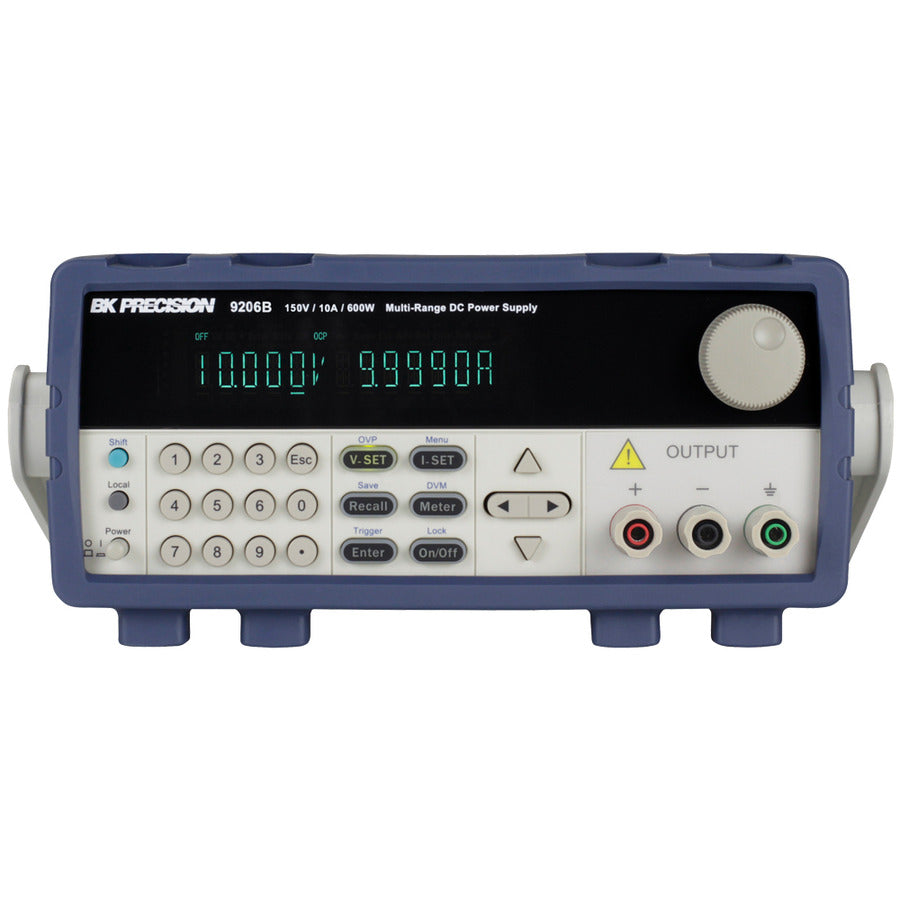

For benchtop applications, this power supply provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands.
