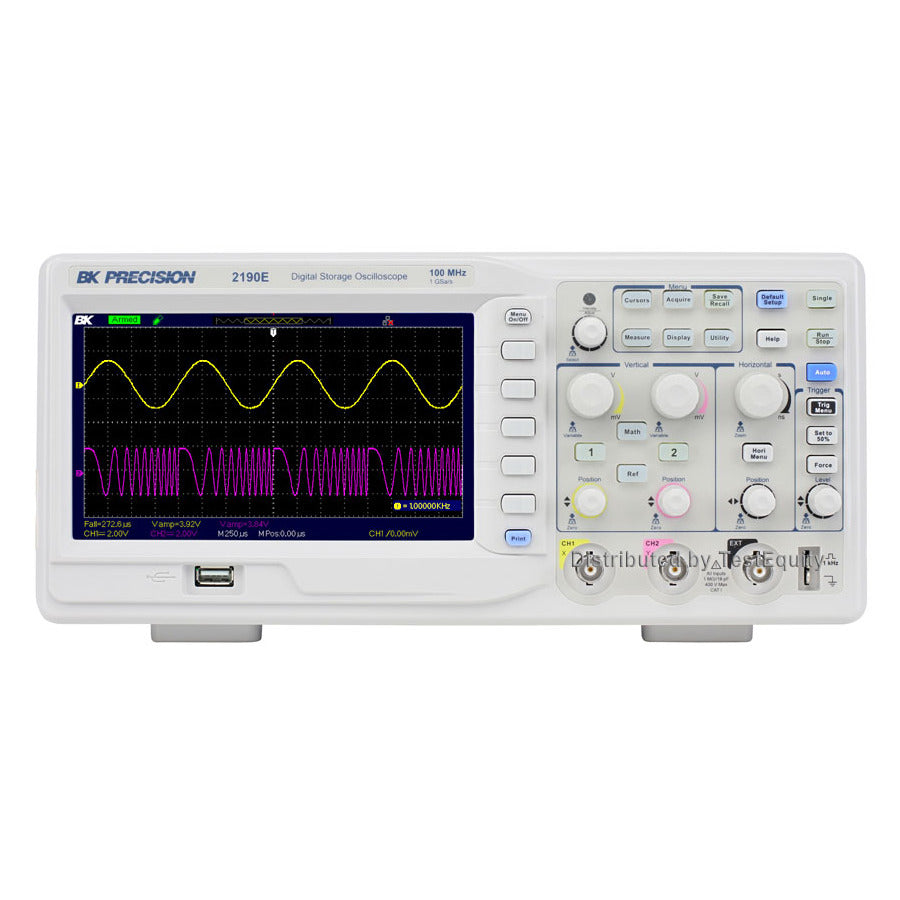

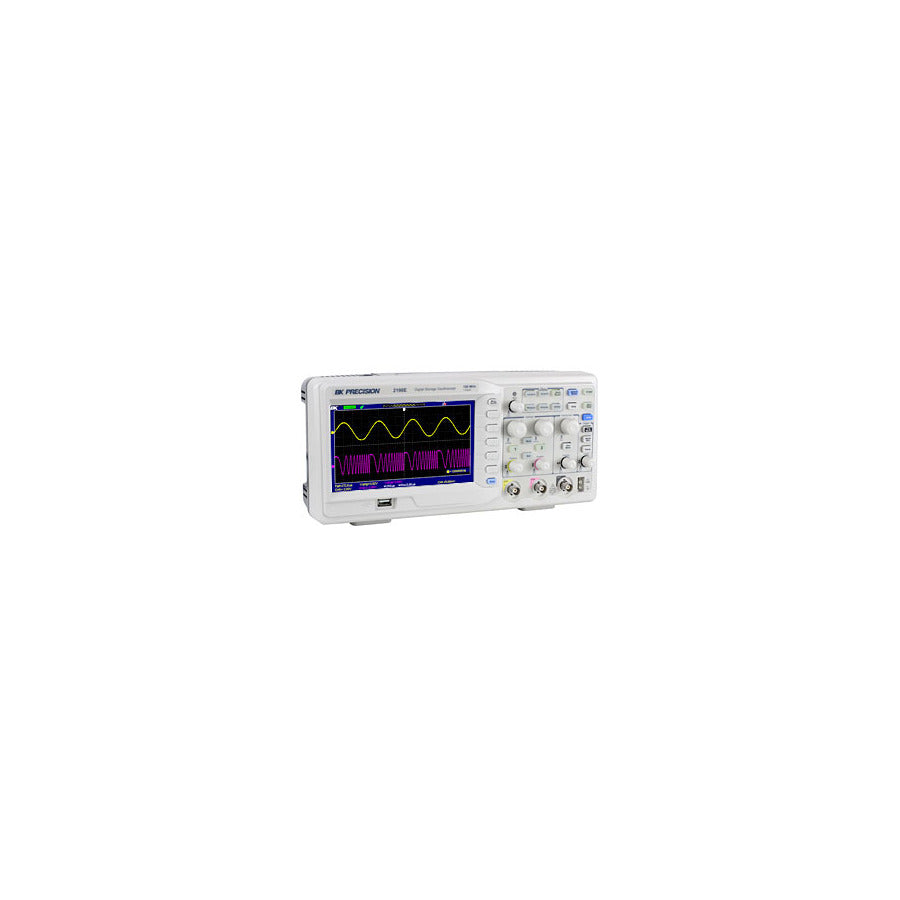

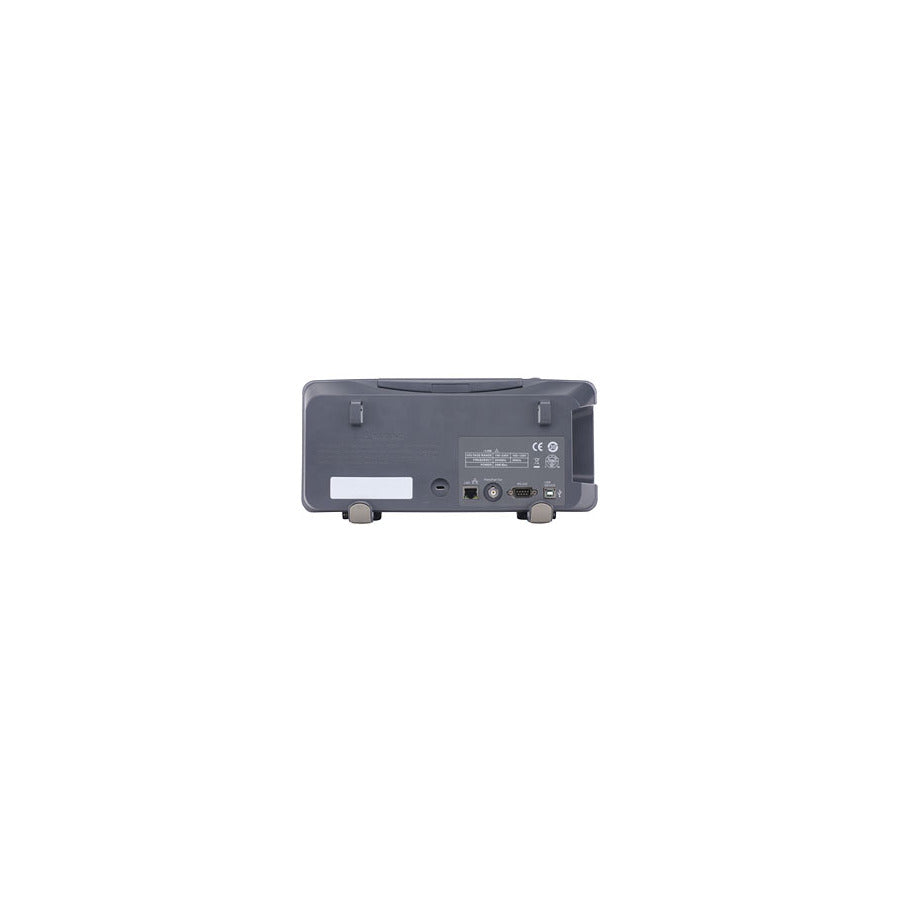

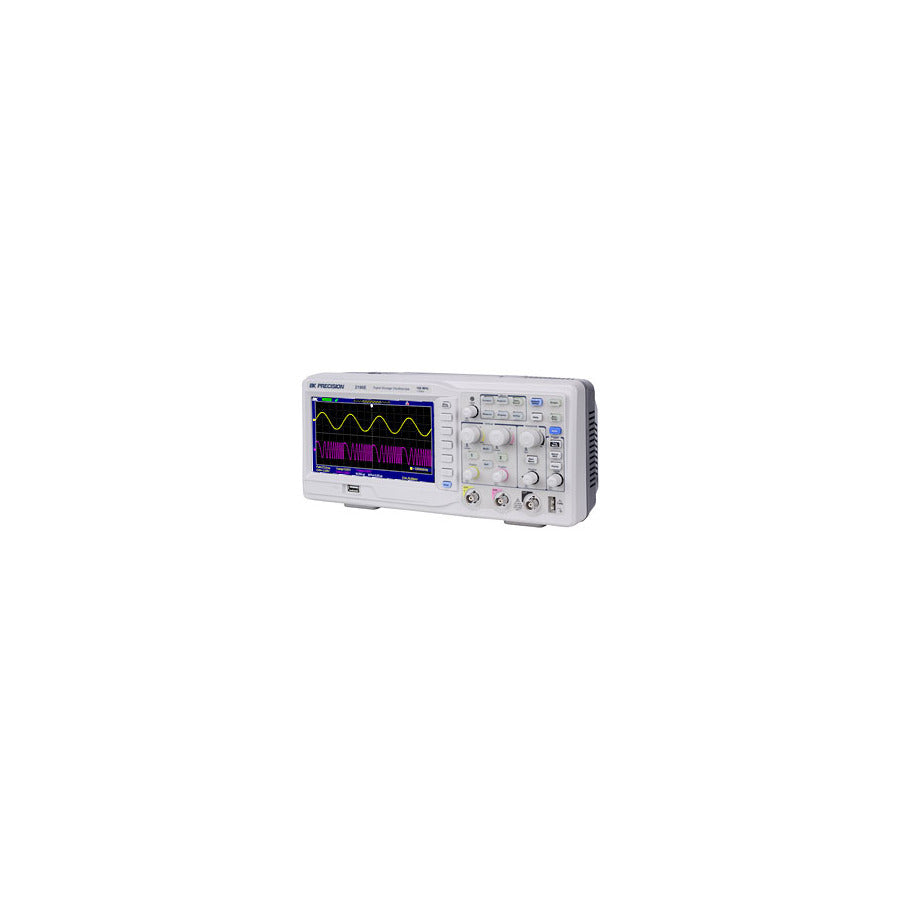

B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision 2190E
B&K Precision
SKU: 22536.2 | MPN: 2190E
New

B&K Precision 2190E Digital Storage Oscilloscope, 2 Channel, 100MHz, 1GS/s, 40kpts

€499,00
Only 1 left
Low Stock - Order Today

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

B&K Precision

B&K Precision is a leading manufacturer of reliable and cost-effective test and measurement equipment for engineers, technicians and research professionals. Its portfolio includes DC power supplies, electronic loads, spectrum analysers, signal generators, oscilloscopes, multimeters, battery testers and component analysers. Trusted across the electronics, automotive, education and industrial sectors, B&K Precision instruments are designed to support product development, manufacturing, troubleshooting and quality assurance applications.

  • 100 MHz, 1 GSa/s sample rate
  • 2 Channels
  • 800 x 480 pixel widescreen 7" TFT color display
  • Long waveform memory up to 40,000 points
  • Five different math functions – Add, Subtract, Multiply, Divide, and FFT
  • Alternating triggering capabilities, pulse width, line-selectable video and slope
  • 32 automatic measurements
  • Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
  • 12 different language user interfaces and context sensitive help
  • EDU mode allows educators to disable Auto set button, Measure menu, and Cursors menu
  • Front panel USB host port for saving and recalling waveform setups, data, and screen shots on a USB flash drive
  • LAN and USBTMC-compliant USB device port for remote PC control
  • GPIB connectivity with optional USB-to-GPIB adapter
  • Replacement for B&K Model 2190D
  • One-year warranty

Powerful Tools in a Small Affordable Package
The 2190E combines performance and value all in one portable solution. With 100 MHz bandwidth and 1 GSa/s sample rate, the B&K 2190E oscilloscope offers advanced triggering capabilities, long waveform memory up to 40,000 points, and extensive features such as pass/fail limit testing, digital filtering, waveform recorder, and 32 automatic measurements.

Maximize productivity with PC connectivity via LAN and USBTMC-compliant USB. The downloadable PC software lets you easily capture, save, and analyze measurement results. All oscilloscope parameters can be controlled via a PC without the need for programming.

B&K 2190E Screenshot
Get Free PC software at bk.com for seamless integration between the 2190E and PC.

Additional 2190E features:

  • Context sensitive help
  • Vertical, horizontal, and trigger controls Auto-setup
  • Advanced triggering
  • Front USB host port
  • Print button saves screenshots to USB drive
  • Kensington security slot
  • Four acquisition modes

The 2190E oscilloscope is ideal for applications in education, design and debug, service and repair.

Included with 2190E: Quick Start Guide/User's Manual, 10:1 Probe Set (2 pieces), Power Cord and USB Interface Cable.
