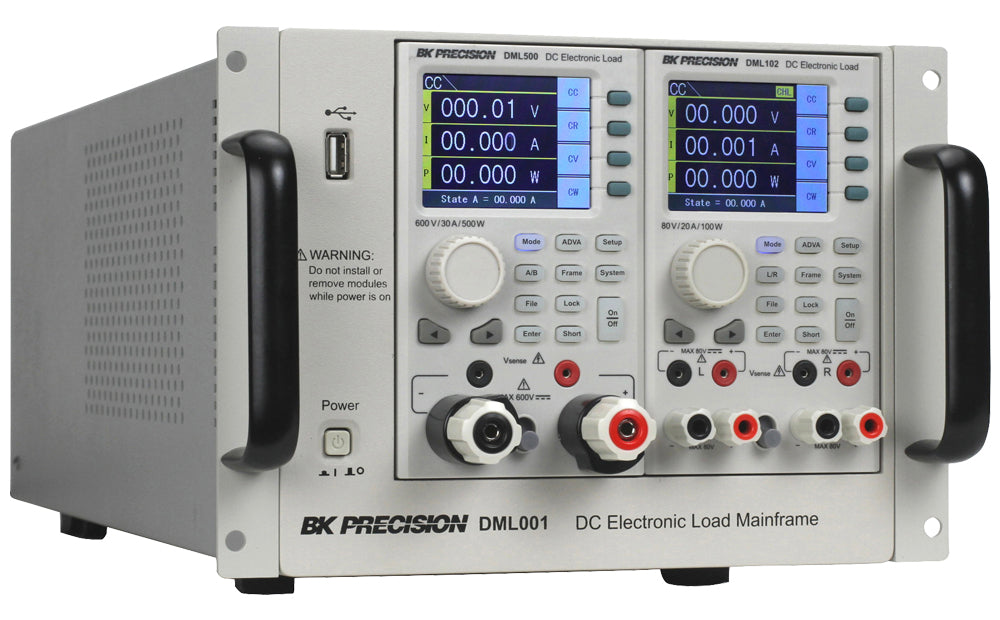

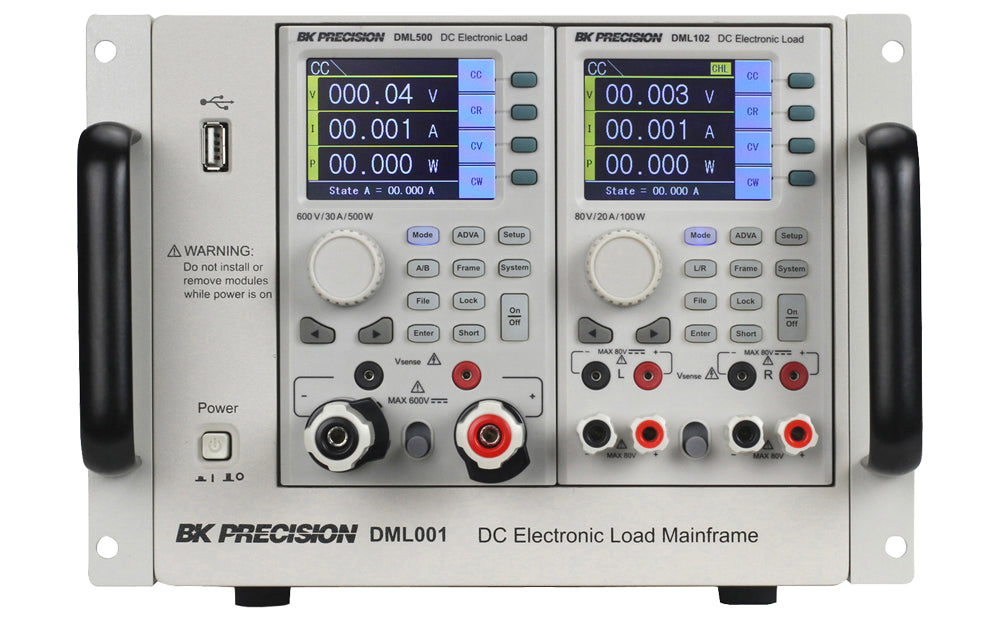

The DML Series is a versatile multi-channel modular DC electronic load system capable of sinking up to 800 W in a compact bench form factor. The mainframe features two slots for housing any combination of single or dual-channel load modules.

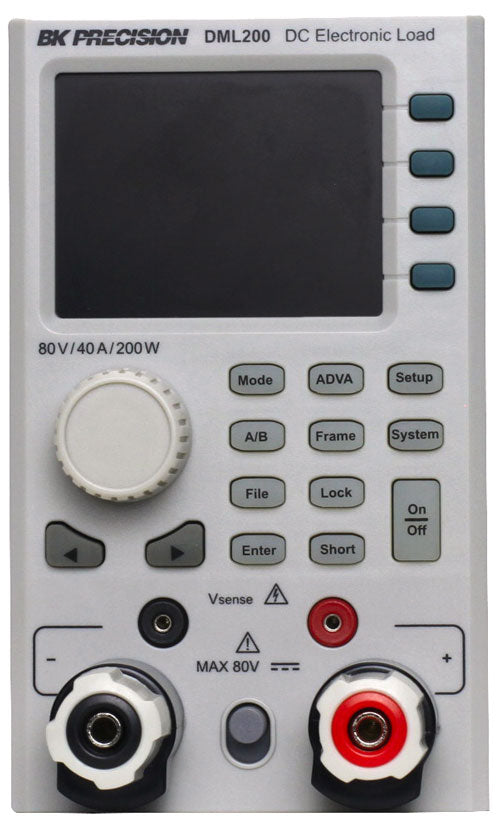

With five swappable modules, this series provides the flexibility to test a variety of power sources, including multi-output DC power supplies, batteries, fuel cells, and photovoltaic arrays.
Power range up to 800 W
Current range up to 160 A with parallel operation
CC/CV/CR/CW operating modes

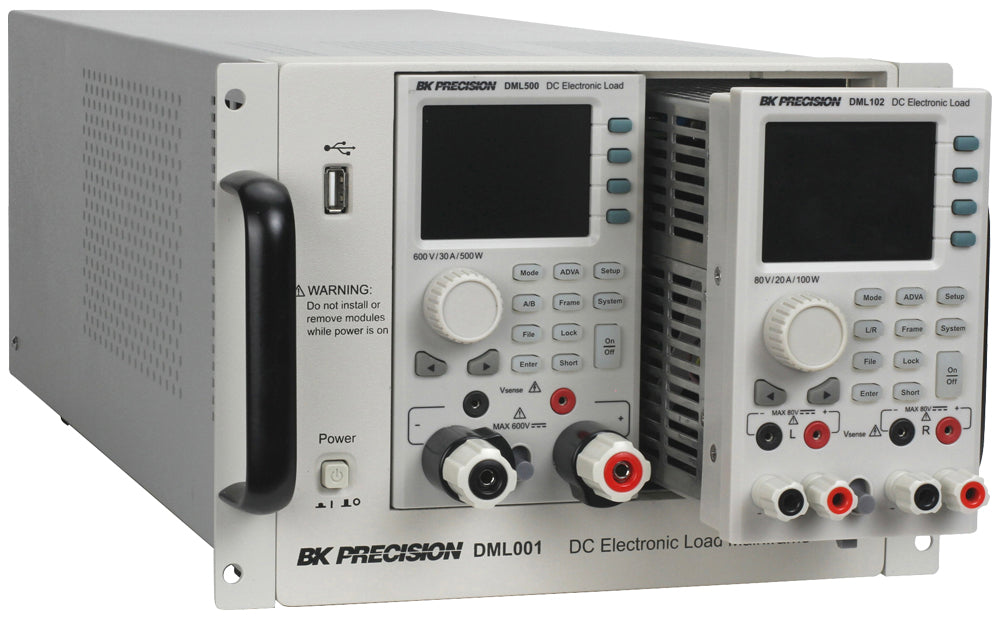

Swappable modules for easy system configurability
Supports up to 4 channels using dual channel modules
Protections: OCP, OVP, OPP, OTP, UVP, and reverse polarity
Transient mode up to 25 kHz in CC mode
Configurable battery discharge test
List mode (sequence mode) – minimum 20 µs step width with 100 user programmable steps
Adjustable slew rate in CC mode
4U form factor
LabVIEWTM drivers and operating software included

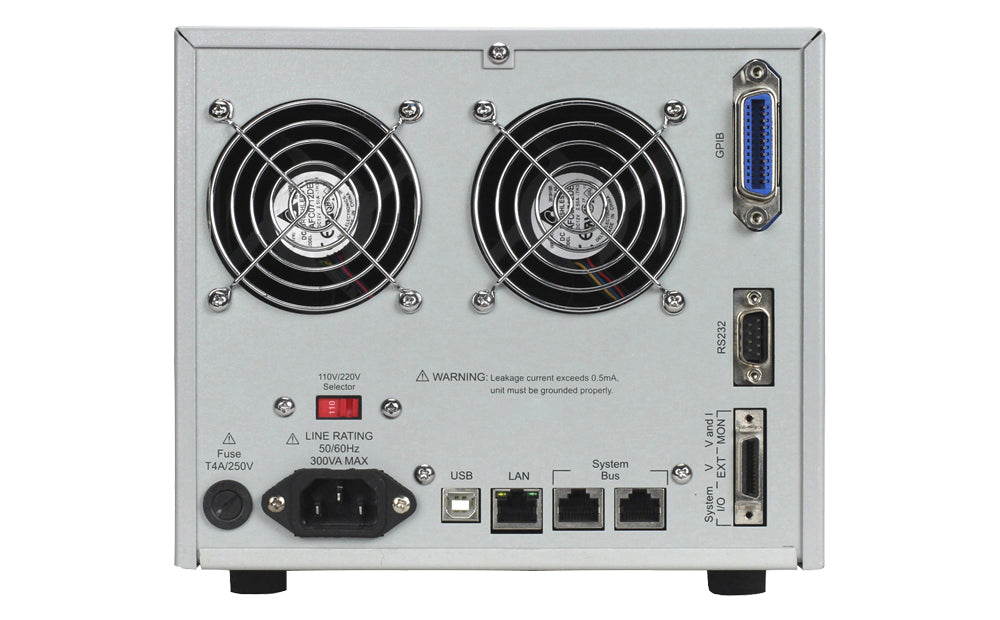

Interfaces: Standard LAN, GPIB, USB, and RS232 with USBTMC/SCPI protocol support
