Tektronix MSO58 5-BW-2000 5 Series Mixed Signal Oscilloscope (2 GHz, 8-Ch)

Request Rental

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix is a global leader in test and measurement solutions, providing advanced instruments for electronics design, validation and troubleshooting. Its portfolio includes oscilloscopes, signal generators, spectrum analysers, power analysers and protocol test systems used across the electronics, aerospace, automotive and telecommunications industries. Engineers worldwide rely on Tektronix products for precision, innovation and exceptional measurement performance.

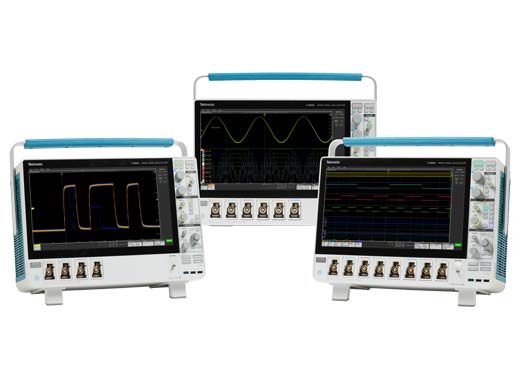

Get to know the 5 Series B 8 Channel Oscilloscope

  • Performance for today and tomorrow
  • Intuitive controls
  • Insightful measurements and analysis
  • Multi-channel spectrum analysis with the 4, 5 or 6 Series MSOs

Insightful measurements

See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots.

  • 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
  • Built-in DDCs enable multi-channel, synchronized spectrum analysis
  • Results tables, measurement statistics, histograms, and trend plot views
5 Series B MSO - Insightful Measurements
5-series B MSO - Advanced Solutions

Advanced solutions

The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis software options or bundles for your workflow.

  • Support for over 25 serial protocols covering the most common interfaces
  • Advanced single-phase and three-phase power analysis packages
  • Measurement tools for signal integrity and power integrity
  • Optional Windows® operating system lets you run PC software

More ways to see more signals

Versatile inputs and advanced probing technology let you see more.

  • Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input
  • Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance
  • TekVPI probe interface supports a wide range of active, differential, isolated and current probes
5-series B MSO - More Ways to See More Signals

Specification Overview

Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe
Auxiliary trigger input

Bandwidth 1
350 MHz, 500 MHz, 1 GHz, 2 GHz

Sample Rate
6.25 GS/s

Record Length 1
Up to 500 Mpoints on all analog/digital channels

Internal Data Storage 1
250 GB removable SSD

Protocol Decode 1
Over 25 protocols available

Signal Generator 1
13 standard waveform types, plus arbitrary
100 MHz maximum frequency

Digital Voltmeter 2
4 digit

Trigger Frequency Counter 2
8 digit

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution capacitive (multi-touch) touchscreen
