TESTEC TT-HX 312 Passive Oscilloscope Probe, 10/350 MHz
Couldn't load pickup availability
Ask an expert!
TESTEC
TESTEC designs and manufactures high-quality oscilloscope probes and accessories engineered for precision signal measurement across a wide range of bandwidths and voltage levels. Trusted by engineers worldwide, TESTEC delivers reliable performance at exceptional value.

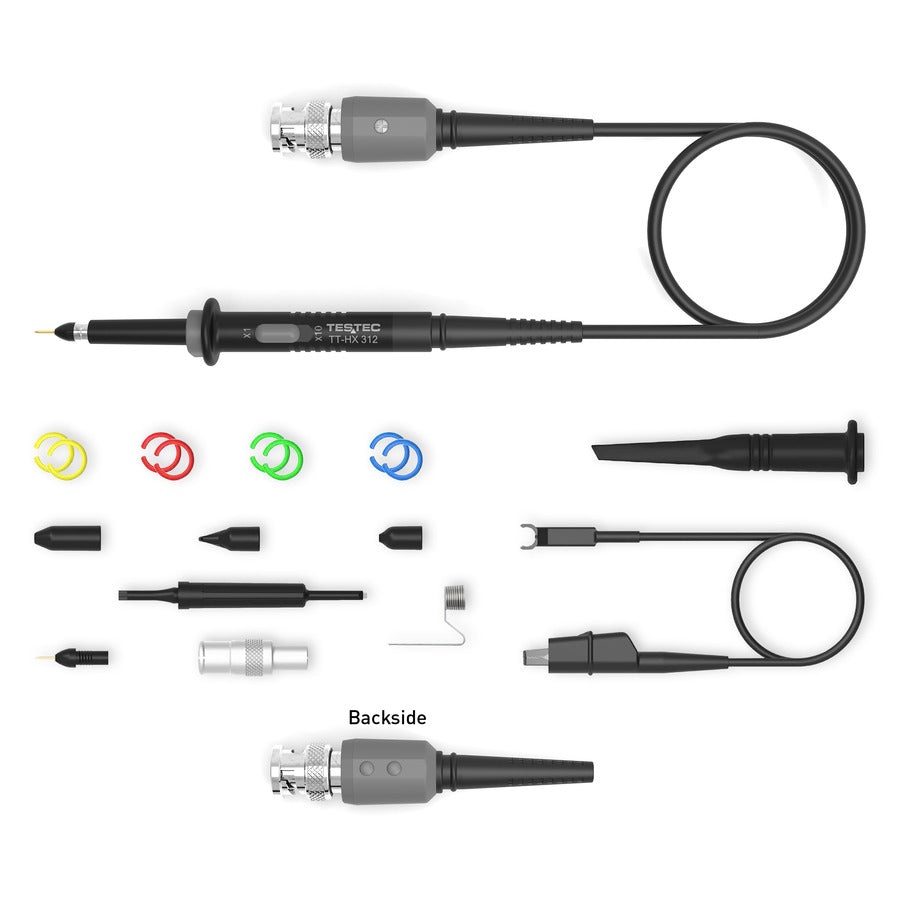

Testec TT-HX 312 Passive Oscilloscope Probe
Features and Specifications
- Input Impedance: 1 MΩ / 47 pF, 10 MΩ / 13 pF
- Bandwidth: 10 MHz, 350 MHz
- Attenuation: x1, x10
- Rise time: 35 ns, 1 ns
- Compensation range: 8-25 pF
- Maximum input voltage: x1 - 55 Vrms, x10 - 400 Vrms (CAT II)
- Cable length: 1.2 meters
The Testec TT-HX 312 is a high-performance passive oscilloscope probe with switchable attenuation (1:1 and 10:1), offering bandwidths up to 350 MHz for precise signal analysis. This probe is a solid choice for engineers and technicians who need reliable signal fidelity across a broad frequency range.
What's in the Box
- TT-HX 312 Passive Oscilloscope Probe
- Standard accessories
