Teledyne LeCroy WS4KHD-SPECTRUM-1 Spectrum Analyzer Option, 1 Trace, For WaveSurfer 4000HD Oscilliscope
Couldn't load pickup availability
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.
WS4KHD-SPECTRUM-1 Spectrum Analyzer for WaveSurfer 4000HD
Features and Specifications
- Number of spectrum traces: 1
- Logarithmic horizontal and vertical scales
- Drag-and-drop spectrum traces
- Persistence, Average, and Max Hold spectral waveforms
- Peaks and markers tables

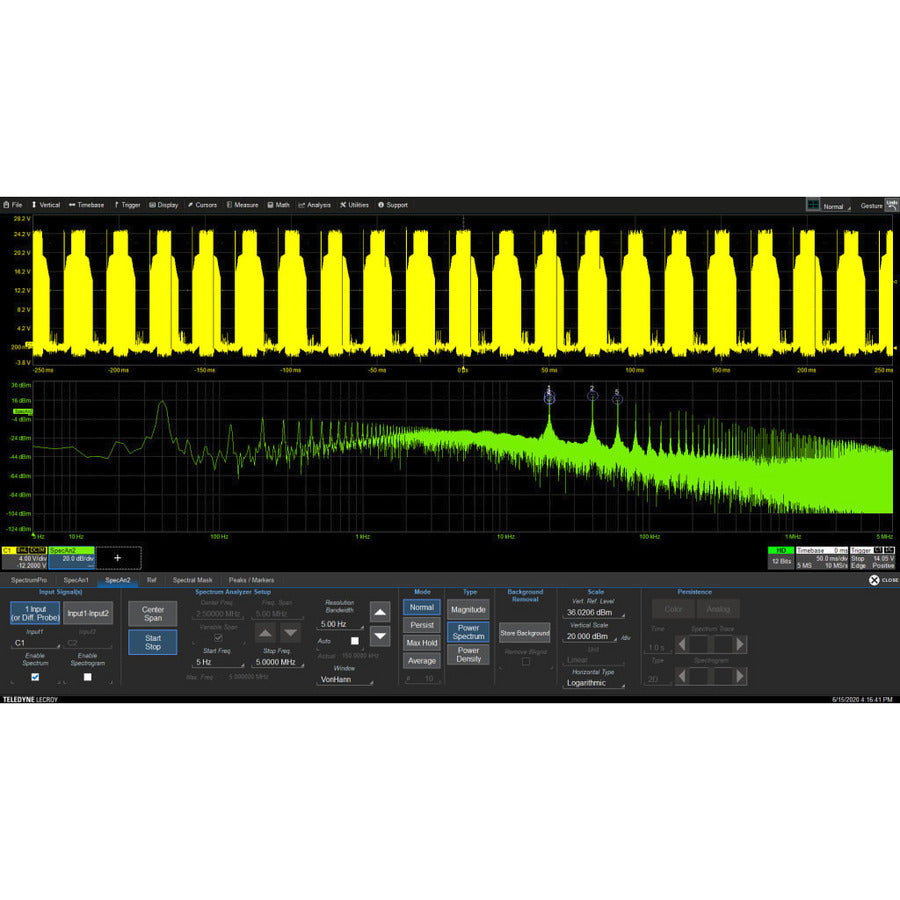

Spectrum-1 offers spectrum-analyzer-controls, drag-and-drop spectral waveforms, persistence, and spectrograms for the most flexibility during debug. It supports the creation and display of a single spectrum trace (SpecAn1) plus spectrogram (Spectro1). Optional peak labels and other markers add detail to the spectrum trace.
Widest Spectral Range and Most Spectral Details
Perform spectral analysis down to 1 Hz with resolution bandwidth of 100 mHz – ideal for low frequency magnetic testing. Utilize the long memory in Teledyne LeCroy oscilloscopes to acquire waveforms up to 250 Mpt for analysis of very wide frequency spans at high resolution bandwidths.
