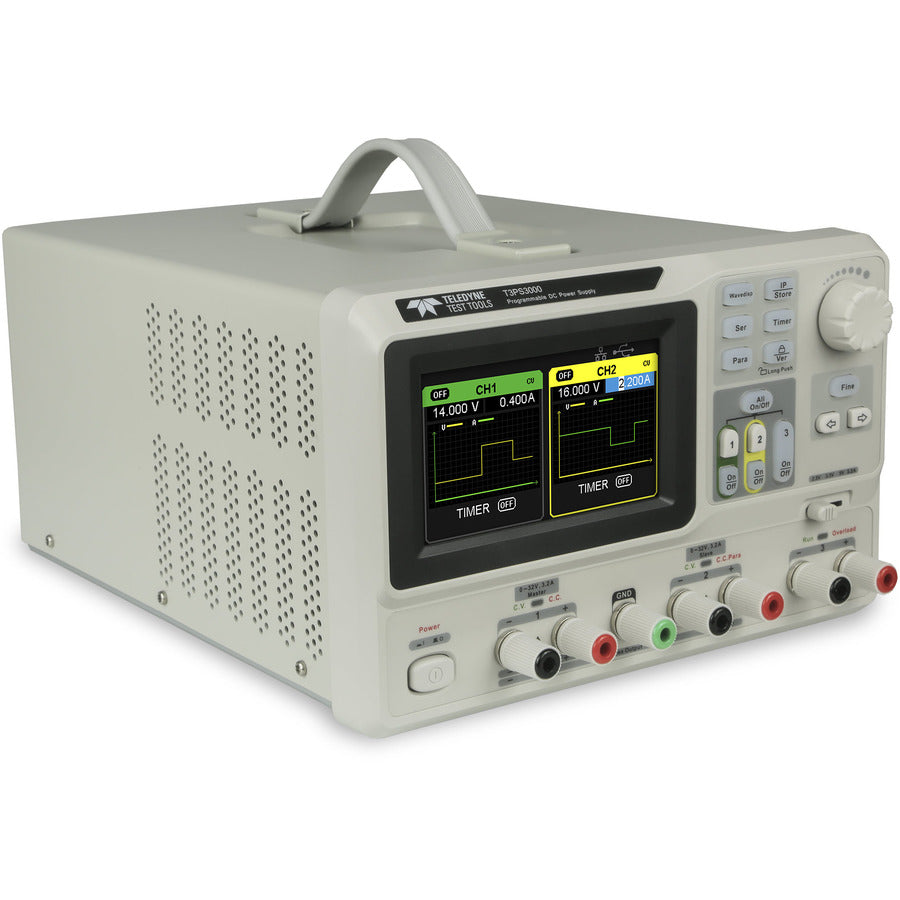

Teledyne LeCroy T3PS3000 DC Power Supply, Triple Output, 2x 32V, 1x 2.5/3.3/5V, 3.2A, 220W, T3PS Series
Couldn't load pickup availability
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.
Teledyne Test Tools new T3PS3000 is a Linear Programmable DC Power Supply with a 4.3 inch TFT LCD display. It has three isolated outputs: two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V with output short and overload protection for each channel. Support for series and parallel operation of the two main channels extends its flexibility beyond the standard specification. The T3PS3000 features include programmability via USB or LAN, a graphical display of power waveforms, and the high resolution numeric display of voltage and current. Typical users are Education, Production, and Design and Development.
Features- 3 Independent isolated outputs – 32 V/ 3.2 A x 2, 2.5 V/ 3.3 V/ 5 V 3.2 A x 1, total 220 W.
- High Resolution, High Precision Output – 5 digits Voltage, 4 digits Current Display, Minimum Resolution: 1 mV/ 1 mA.
- 3 output modes: Series, Parallel and Independent.
- Graphical display interface with waveform display function.
- Intelligent temperature controlled cooling fan.
