Teledyne LeCroy PP018-1 Passive Probe, 500MHz, 10X, 10 pF, 350V, CAT2, PP Series
Couldn't load pickup availability
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.

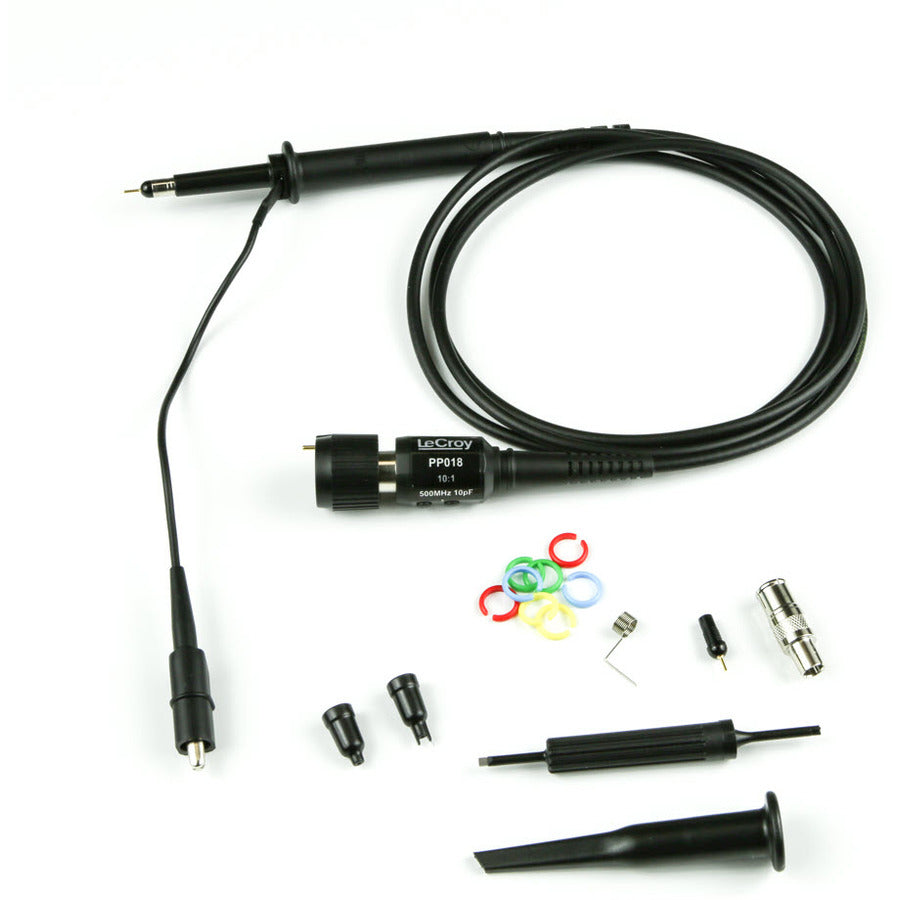

Teledyne LeCroy PP018-1 10:1 500 MHz Passive Oscilloscope Probe
Features and Specifications- Attenuation Ratio 10:1
- 500 MHz bandwidth
- Maximum Voltage 350 V
- Input Capacitance 10 pF
- Input Resistance 10 MΩ
- Cable Length 1.3 m
- Compensation Range: 6 - 22pF
Teledyne LeCroy PP018-1 is a passive high impedance voltage oscilloscope probe designed and calibrated for use with general purpose oscilloscopes having an input impedance of 10 MΩ shunted by 10 pF. However, it may be compensated for use with instruments having an input capacitance between 6 and 22 pF. It is compatible with oscilloscopes that automatically detect probe attenuation and adjust their readout accordingly.
What's in the Box- Sprung Hook, 5 mm, Black
- GND Lead w/Alligator Clip
- BNC Adapter, 5 mm
- Replacement Tip, Black
- Deluxe Trimmer Tool
- IC Tip Insulator, 5 mm, Black
- Tip Insulator, 5 mm, Black
- Identifier Rings
- Probe Tip GND
