Teledyne LeCroy PP008-1 Passive Probe, 500MHz, 10X, 9.5 pF, 400V, CAT1, CAT2, PP Series
Couldn't load pickup availability
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.
Teledyne LeCroy PP008-1 10:1 500 MHz Passive Oscilloscope Probe
Features and Specifications- Attenuation Ratio 10:1
- 500 MHz bandwidth
- Maximum Voltage 400 V
- Input Capacitance 9.5 pF
- Input Resistance 10 MΩ
- Cable Length 1.3 m
- BNC Interface
The PP008-1 is a 500 MHz, 10 MΩ, Passive Probe (Total of 1 Per Channel). Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 MΩ. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes is designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input.

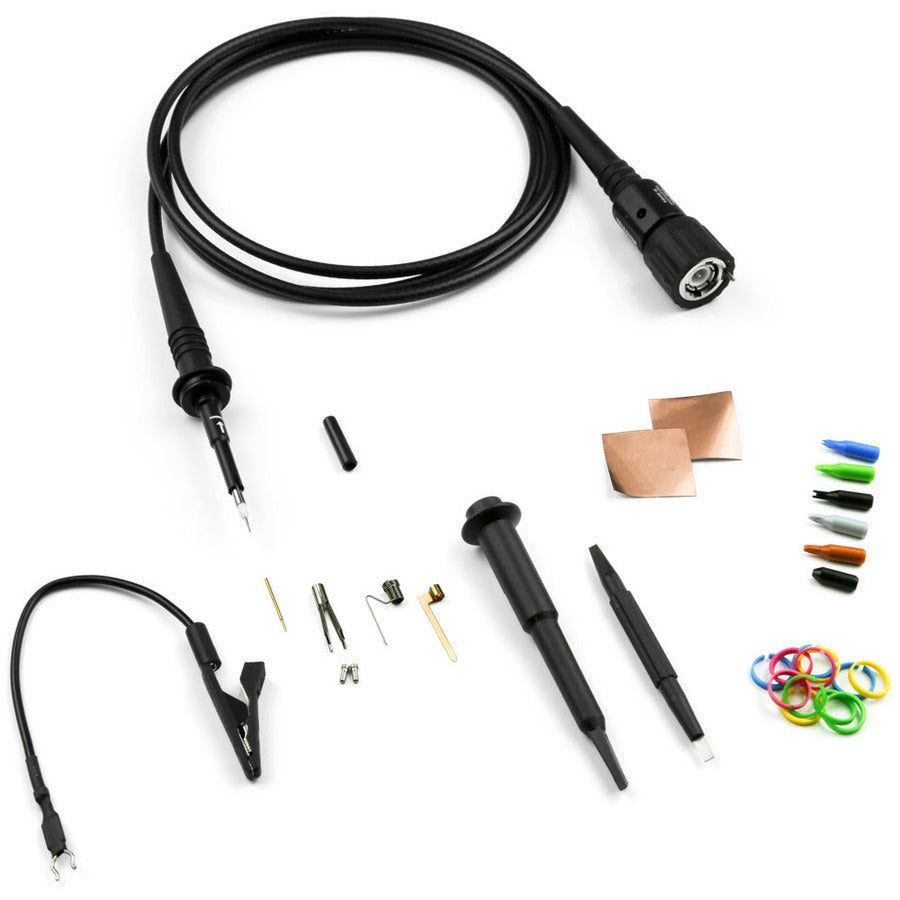

What's in the Box- Sprung Hook
- Standard Ground Lead
- Adjustment Tool
- Rigid Tip, 0.5mm
- Spring Tip, 0.5 mm
- Insulating Cap
- IC Cap 0.5 mm pitch (green)
- IC Cap 0.65 mm pitch (blue)
- IC Cap 0.8 mm pitch (gray)
- IC Cap 1.0 mm pitch (brown)
- IC Cap 1.27 mm pitch (black)
- Color Coding Rings (set)
- Ground Blade
- Ground Spring
- Copper Pad
- PCB Adapter
