Teledyne LeCroy CP031A AC/DC Current Probe, High Sensitivity, 30A, 100MHz, 50A pk, 1.5m, CP Series
Couldn't load pickup availability
Ask an expert!
Teledyne LeCroy
Teledyne LeCroy is a world leader in oscilloscopes, protocol analyzers, and test solutions that enable engineers to capture, analyze, and validate high-speed electronic designs.

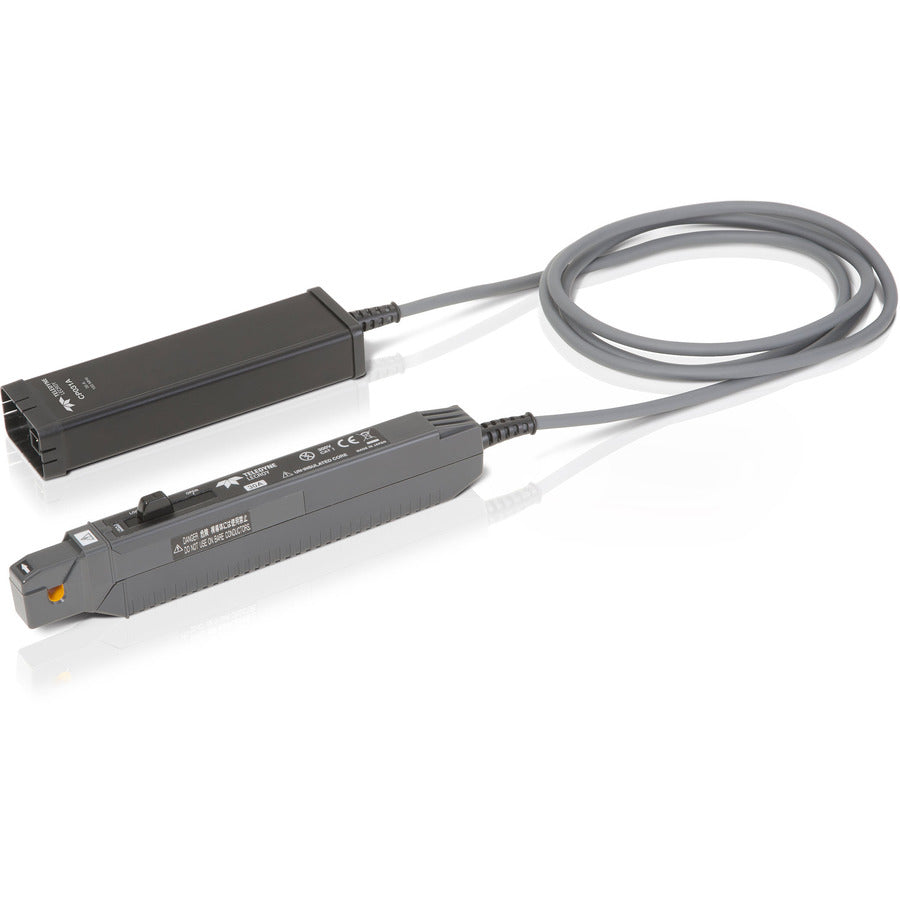

Teledyne LeCroy CP031A AC/DC High Sensitivity Current Oscilloscope Probe
Features and Specifications- ProBus active probe interface with automatic scaling in A/div
- Autozero and degauss capabilities built into instrument’s user interface
- 30 Arms continuous current
- 50 Apeak current
- 100 MHz bandwidth
- 1 mA/div sensitivity
- High Sensitivity
The Teledyne LeCroy CP031A is a 30A, 100MHz High Sensitivity Current Probe with a 1.5 meter cable. The CP031A probe is often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies. The CP031A provide a high sensitivity of 1mA/div. This allows for more precise low current measurements on Teledyne LeCroy oscilloscopes. When used with HDO high definition oscilloscopes with HD4096 technology, users will obtain highly accurate, low current waveforms with unmatched 12-bit resolution for improved debug and analysis.
