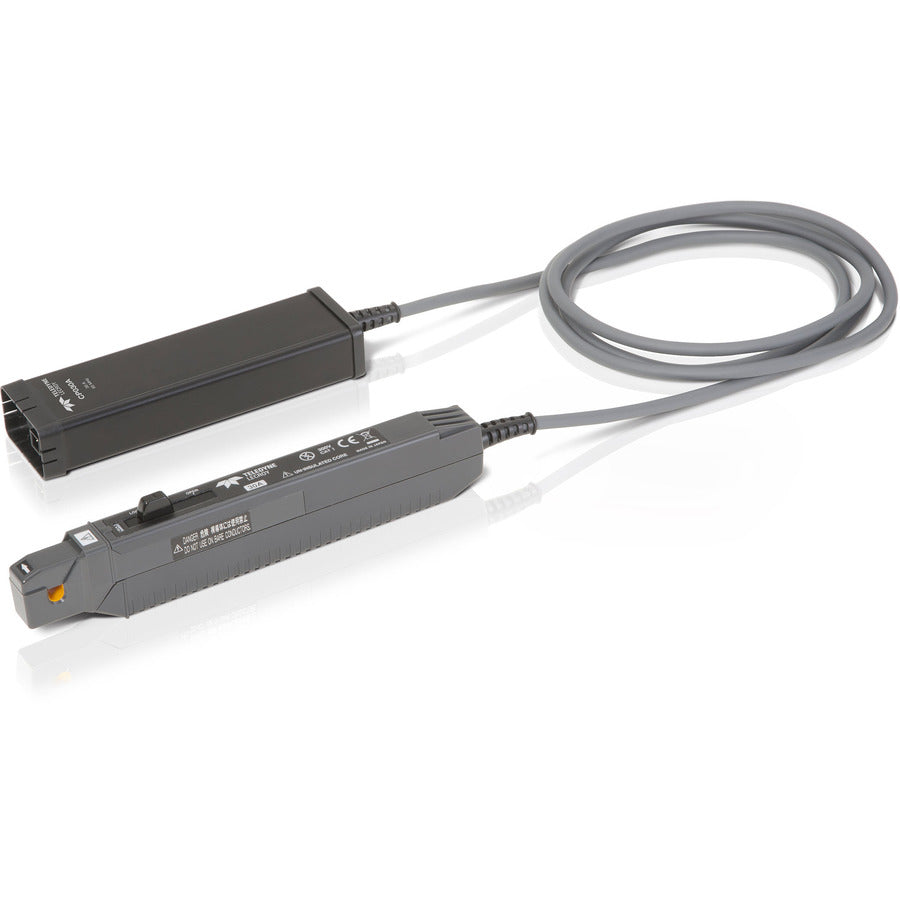

Teledyne LeCroy CP030A AC/DC High Sensitivity Current Oscilloscope Probe
Features and Specifications- ProBus active probe interface with automatic scaling in A/div
- Autozero and degauss capabilities built into instrument’s user interface
- 30 Arms continuous current
- 50 Apeak current
- 50 MHz bandwidth
- High Sensitivity
The Teledyne LeCroy CP030A is a 30A, 50MHz High Sensitivity Current Probe with a 1.5 meter cable. The CP030A probe is often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies. The CP030A provides a high sensitivity of 1mA/div. This allows for more precise low current measurements on Teledyne LeCroy oscilloscopes. When used with HDO high definition oscilloscopes with HD4096 technology, users will obtain highly accurate, low current waveforms with unmatched 12-bit resolution for improved debug and analysis.
