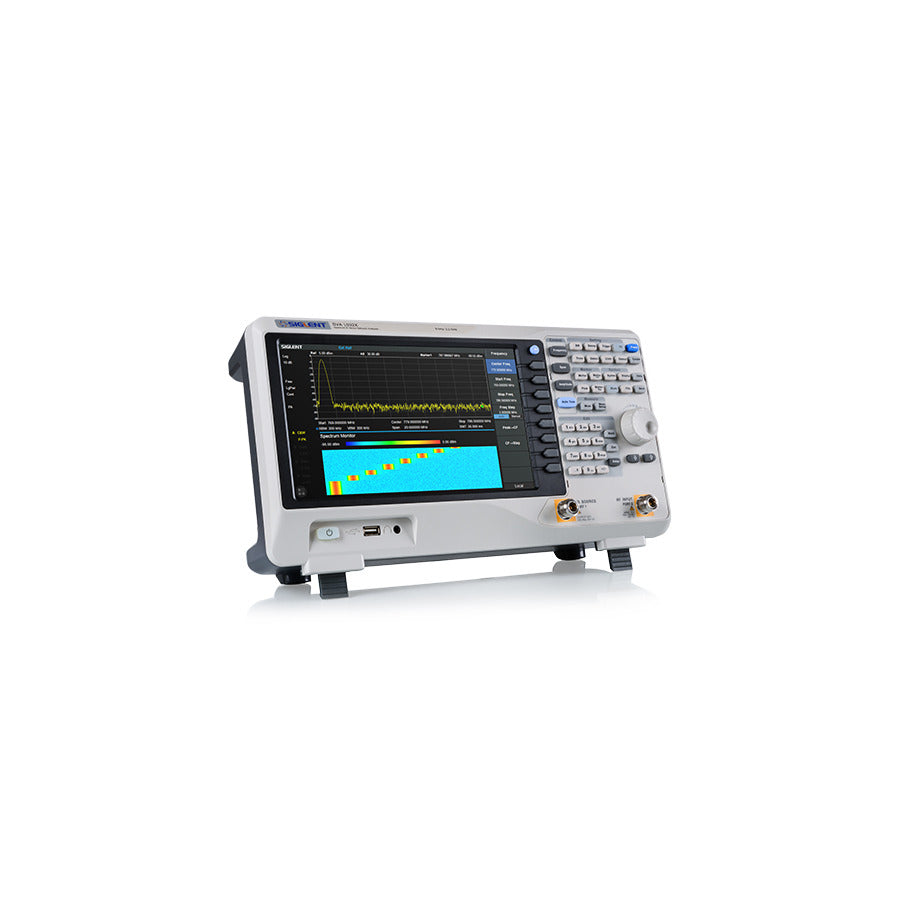

Siglent SVA1032X Spectrum/Vector Network Analyzer, 9kHz to 3.2GHz, 10.1" TS, SVA1000X Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SVA1032X Spectrum & Vector Network Analyzer
Features:
- 9 kHz to 3.2 GHz Frequency range
- 1 Hz to 1 MHz, in 1-3-10 sequence resolution bandwidth
- < -98 dBc/Hz@1 GHz, 10 kHz offset phase noise
- < 0.7 dB Total amplitude accuracy
- -161 dBm/Hz, Normalize to 1 Hz (typ.) DANL
- Preamplifier Standard
- Tracking Generator Standard
- 10.1 inch Multi-Touch Screen display
- Mouse and Keyboard supported

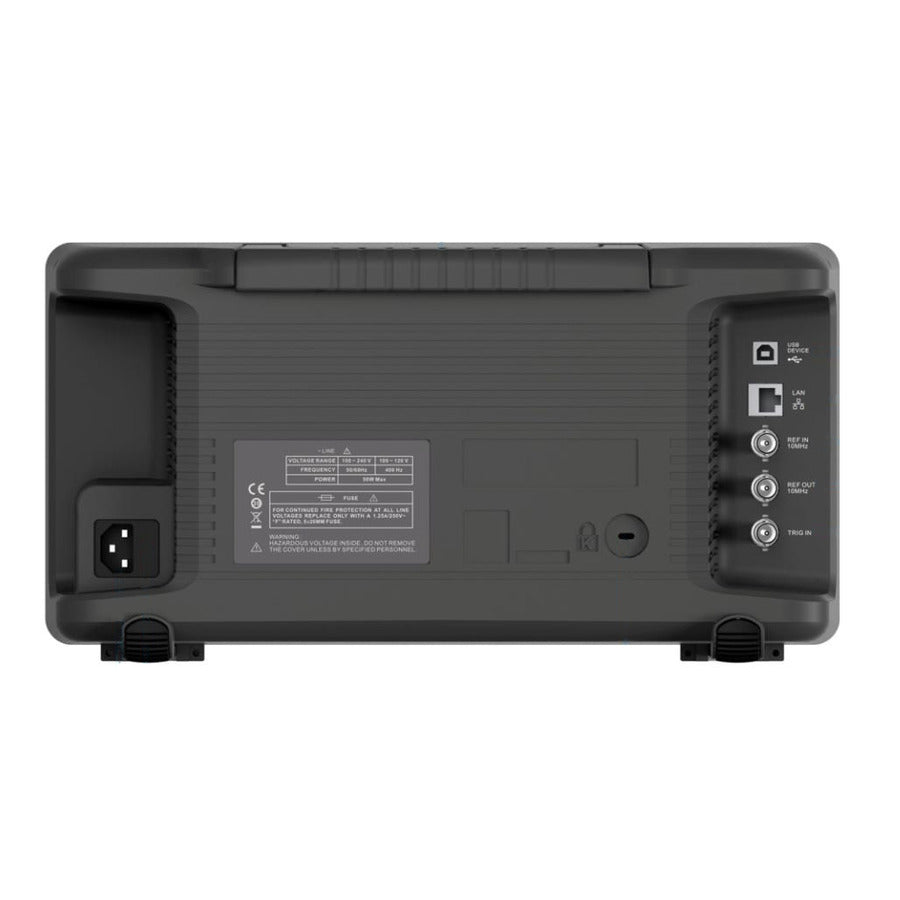

- LAN, USB Device, USB Host
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
- Remote Control Capability: SCPI/Labview/IVI based on USB TMC/VXI 11/Socket/Telnet
- Optional: EMI Measurement Mode
Standard Accessories:
- Quick Start -1
- USB Cable -1
- Power Cord -1
The SVA1000X Series spectrum & vector network analyzers are powerful and flexible tools for RF signal and network analysis. The analyzer delivers reliable automatic measurements and multiple modes of operation: the base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance to fault locator, a vector signal modulation analyzer. Applications include broadcast monitoring/evaluation, site surveying, S parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI-pre compliance test, research and development, education, production, and maintenance.
