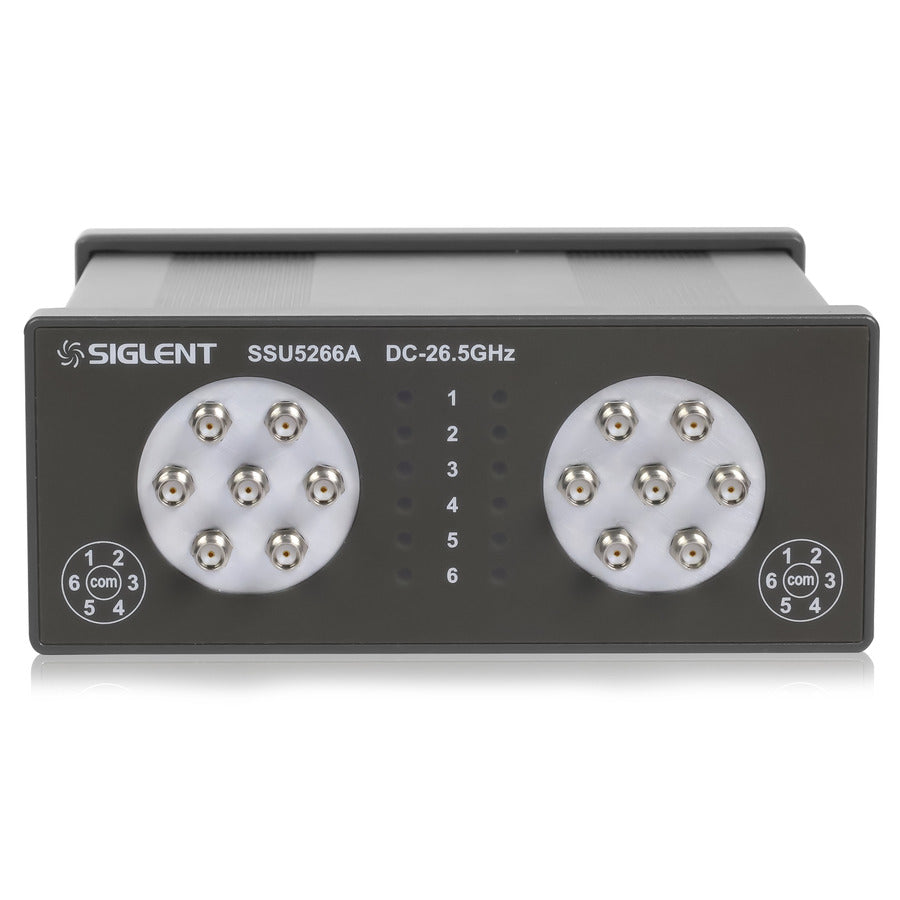

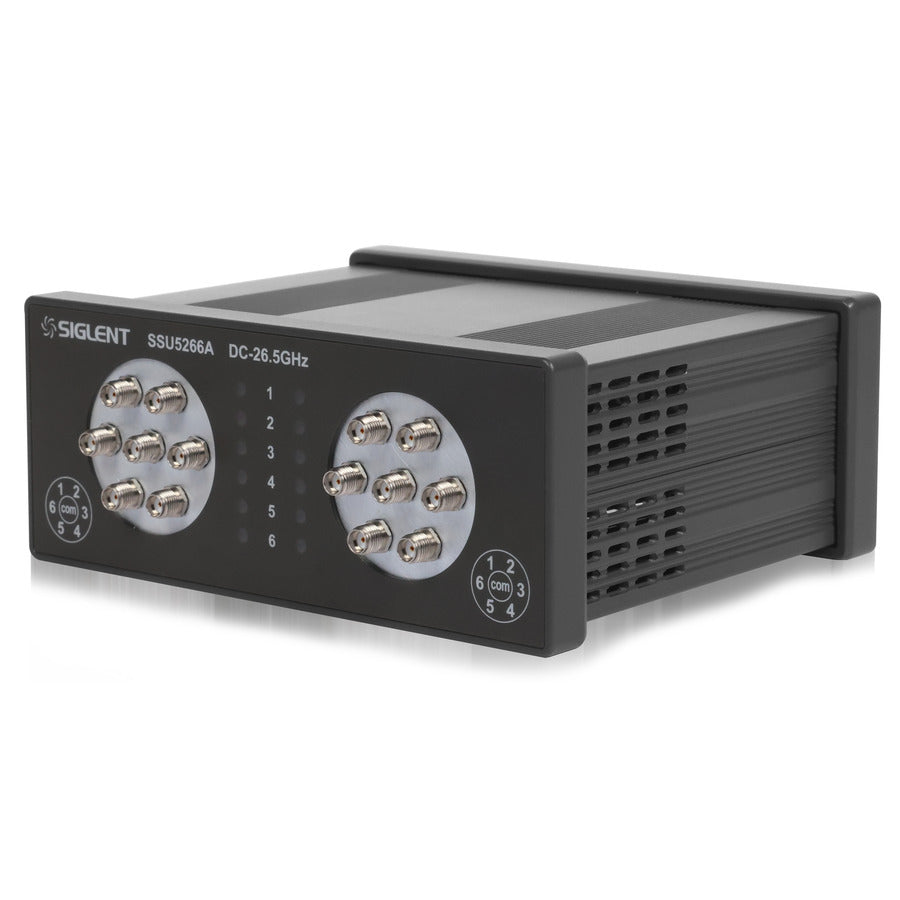

SSU5266A RF Mechanical Switch
- Frequency: DC to 26.5GHz
- 2 SP6T switches - single pole, six throw switches where 1 common terminal is switched to 1 of the 6 numbered terminals
- RF connector: SMA female
- SCPI Controllable via VISA and EasySSU software

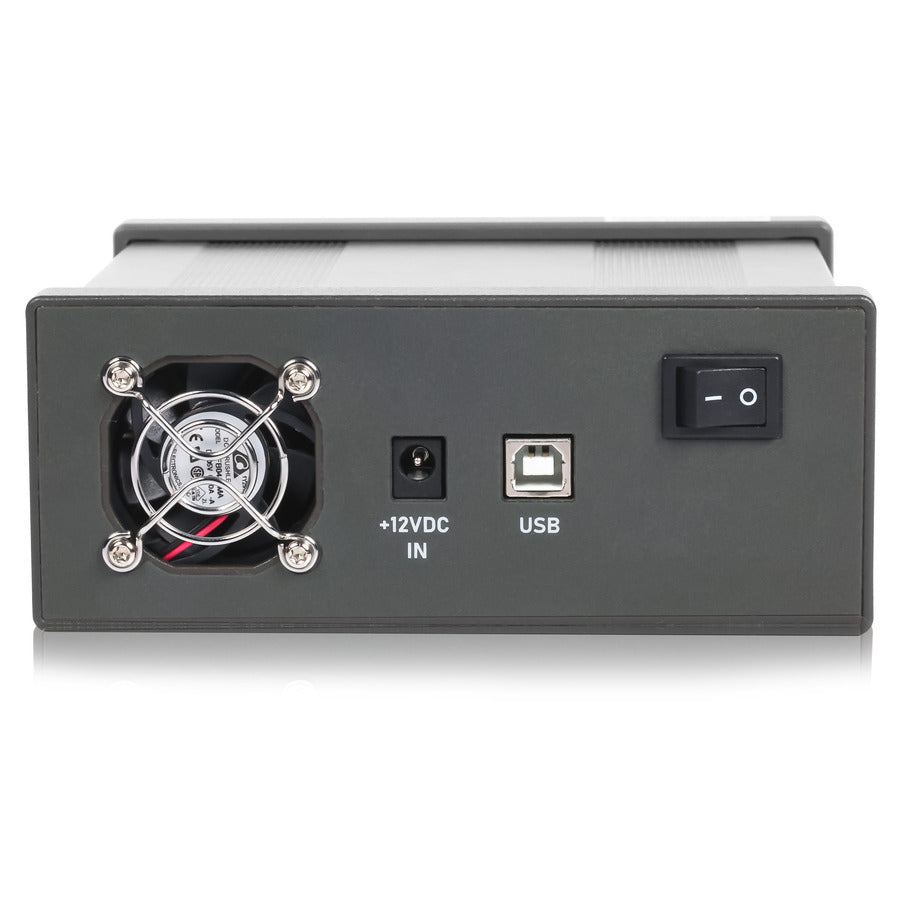

- USB Connectivity
- Size: W x H x D = 6 x 2.5 x 5.5 inches (153 x 62.4 x 137.5mm)

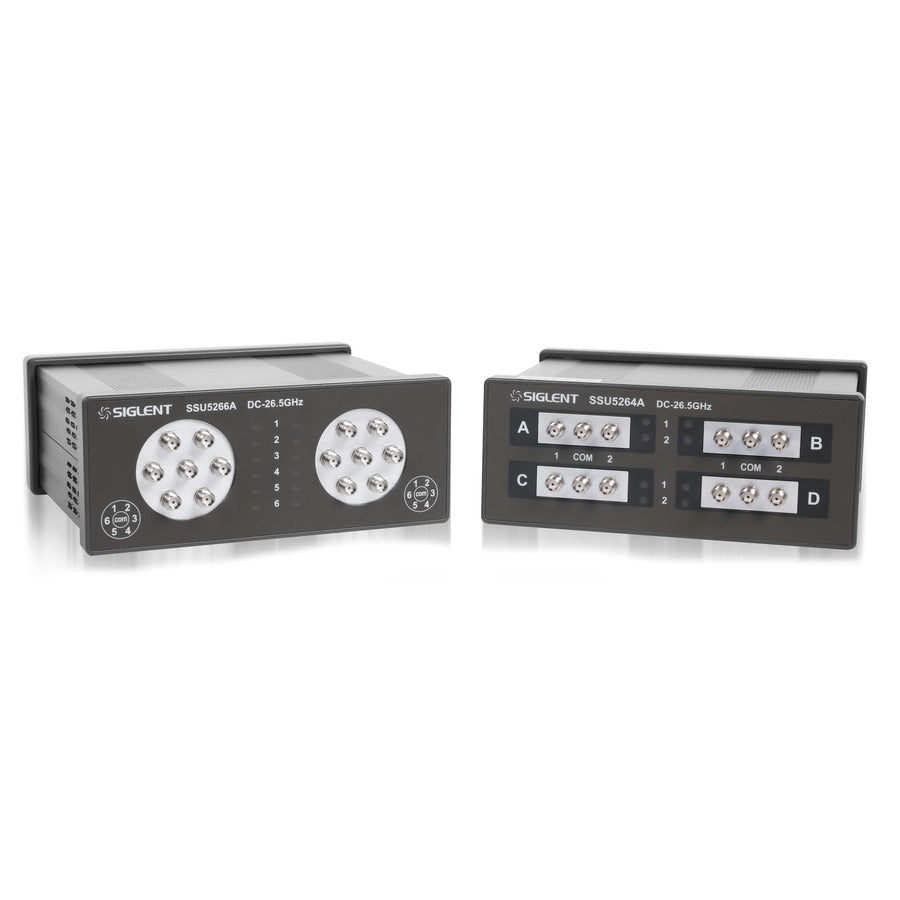

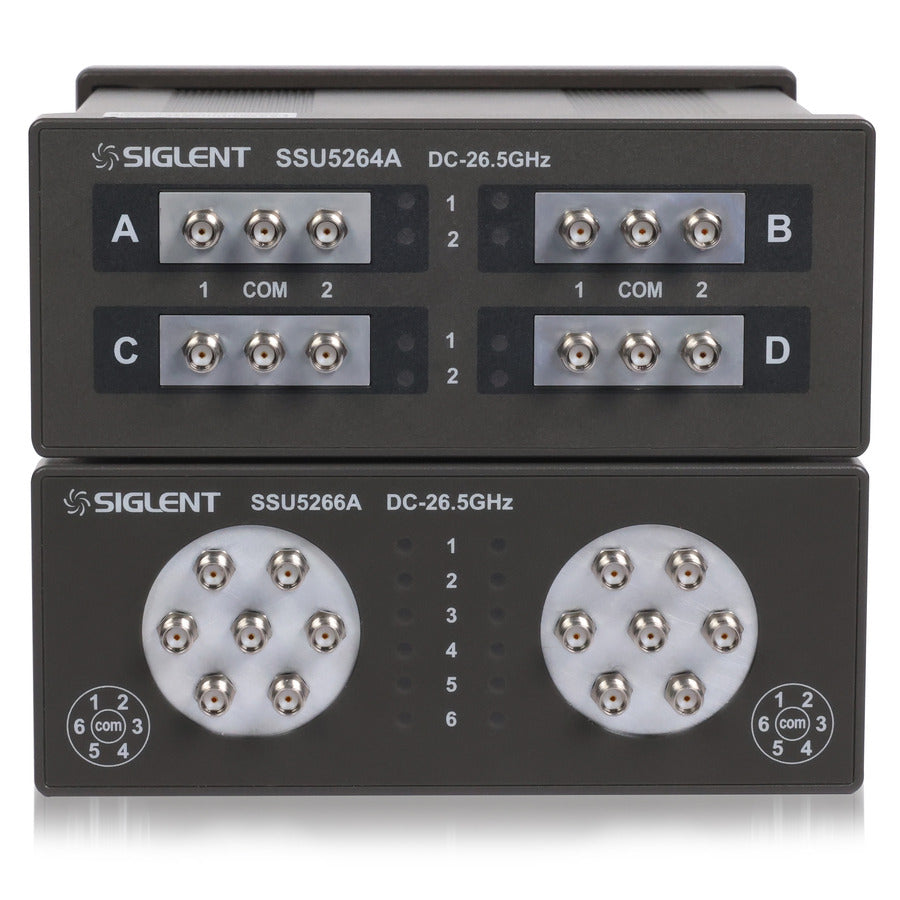

Images are for illustrative purposes only. Input and output ports and frequency will differ depending on the model
RF Mechanical Switch (DC - 26.5GHz, Including Two SP6T Mechanical Switches, SMA Female) - In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced the SSU5000A series of mechanical switches with frequency ranges up to 50GHz, depending on the model ordered. The SSU5000A has a compact design, excellent RF characteristics, low insertion loss, great impedance matching, and extraordinary short switching time.

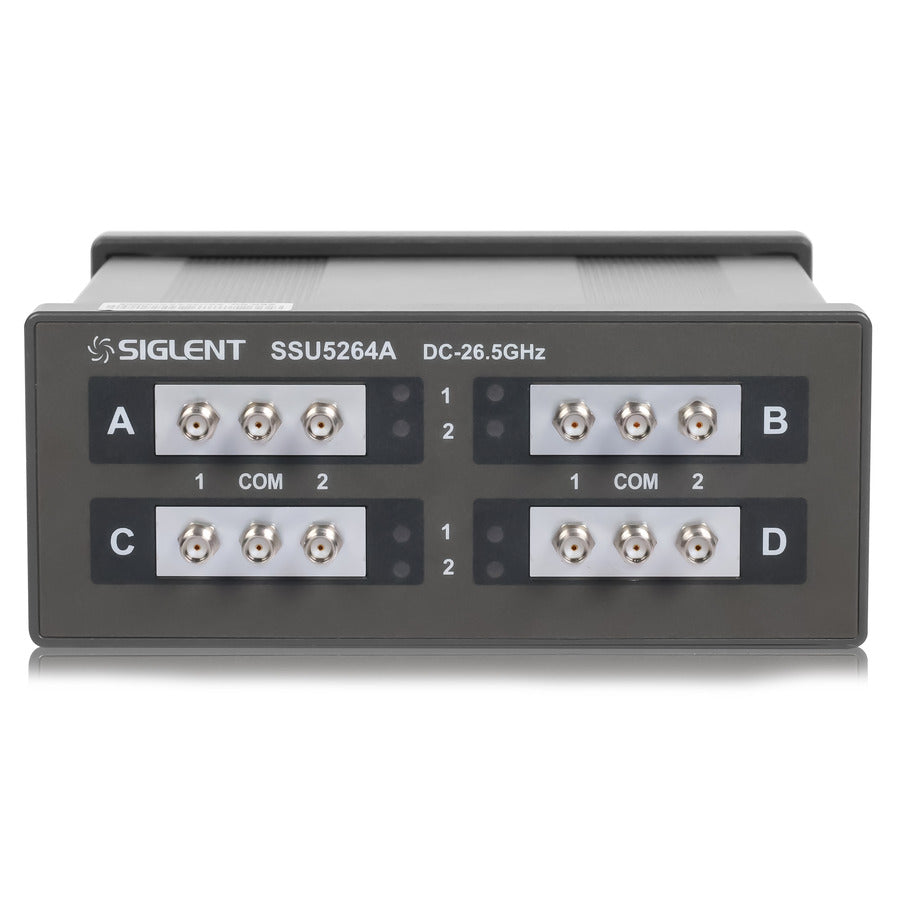

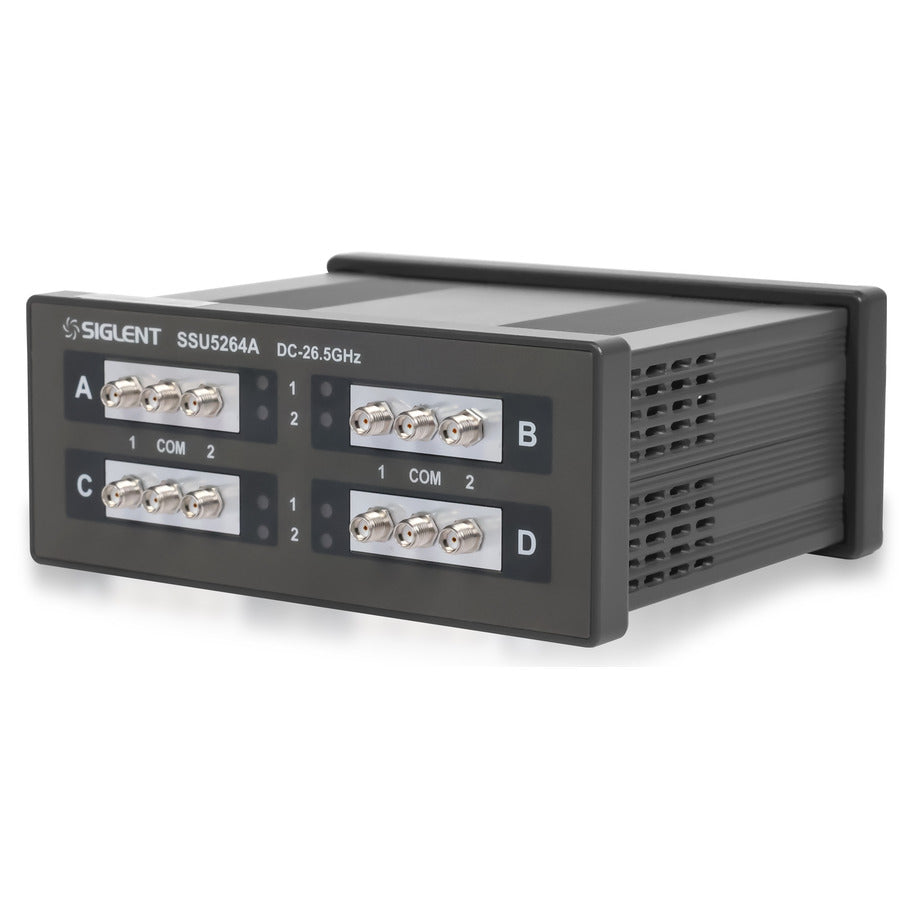

Models with up to four independent mechanical switches are available. Switch-type options include single-pole double-throw and single-pole six-throw. SMA or 2.4mm connectors are employed depending on the model’s maximum frequency range. TTL control is supported.
