Siglent SSU5183A RF Mechanical Switch, DC - 18 GHz, Three SPDT Mechanical Switches, SMA(f)

SSU5183A RF Mechanical Switch

Images are for illustrative purposes only. Input and output ports and frequency will differ depending on the model

• Frequency: DC to 18GHz
• 3 SPDT switches - single pole, dual throw switches where 1
common terminal is switched to 1 of the 2 numbered terminals
• RF connector: SMA female

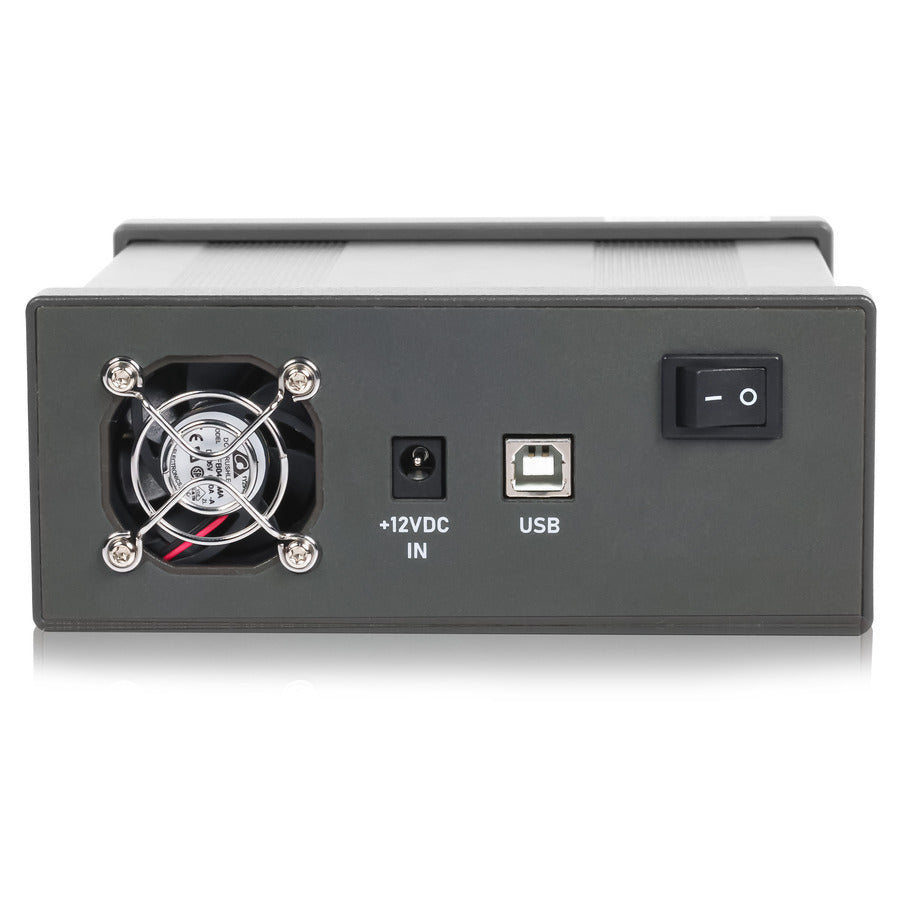

• SCPI Controllable via VISA and EasySSU software
• USB Connectivity
• Size: W x H x D = 6 x 2.5 x 5.5 inches (153 x 62.4 x 137.5mm)

RF Mechanical Switch (DC - 18GHz, Including Three SPDT Mechanical Switches, SMA Female) - In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced the SSU5000A series of mechanical switches with frequency ranges up to 50GHz, depending on the model ordered. The SSU5000A has a compact design, excellent RF characteristics, low insertion loss, great impedance matching, and extraordinary short switching time.

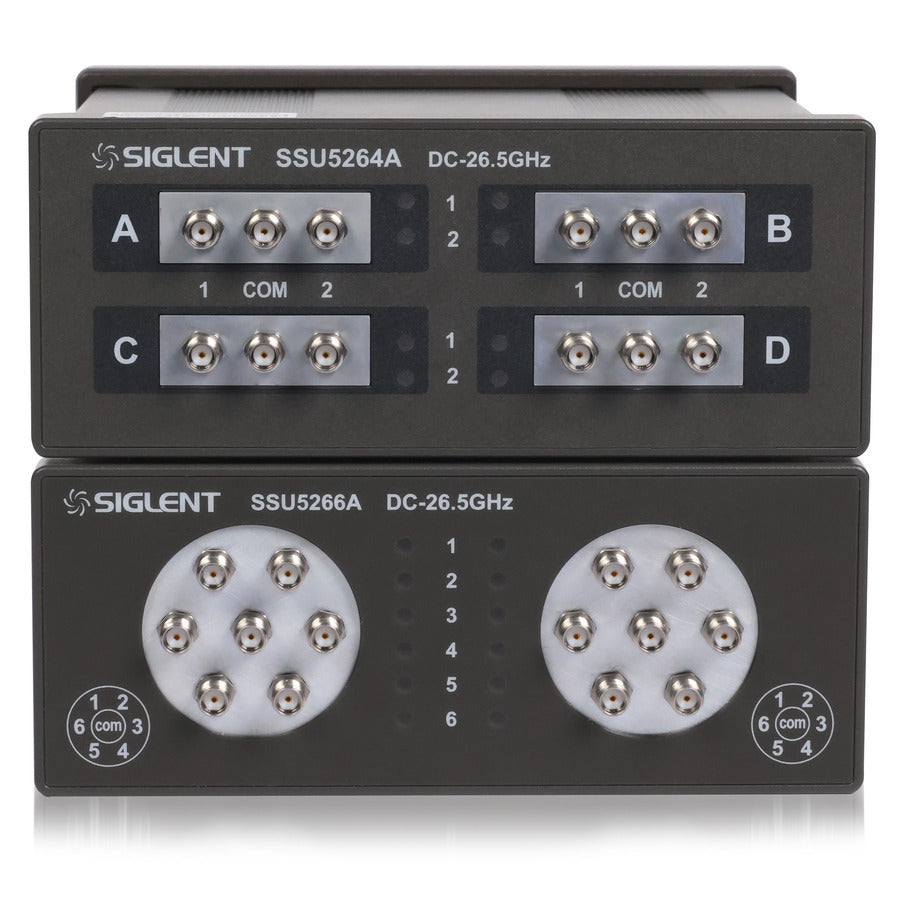

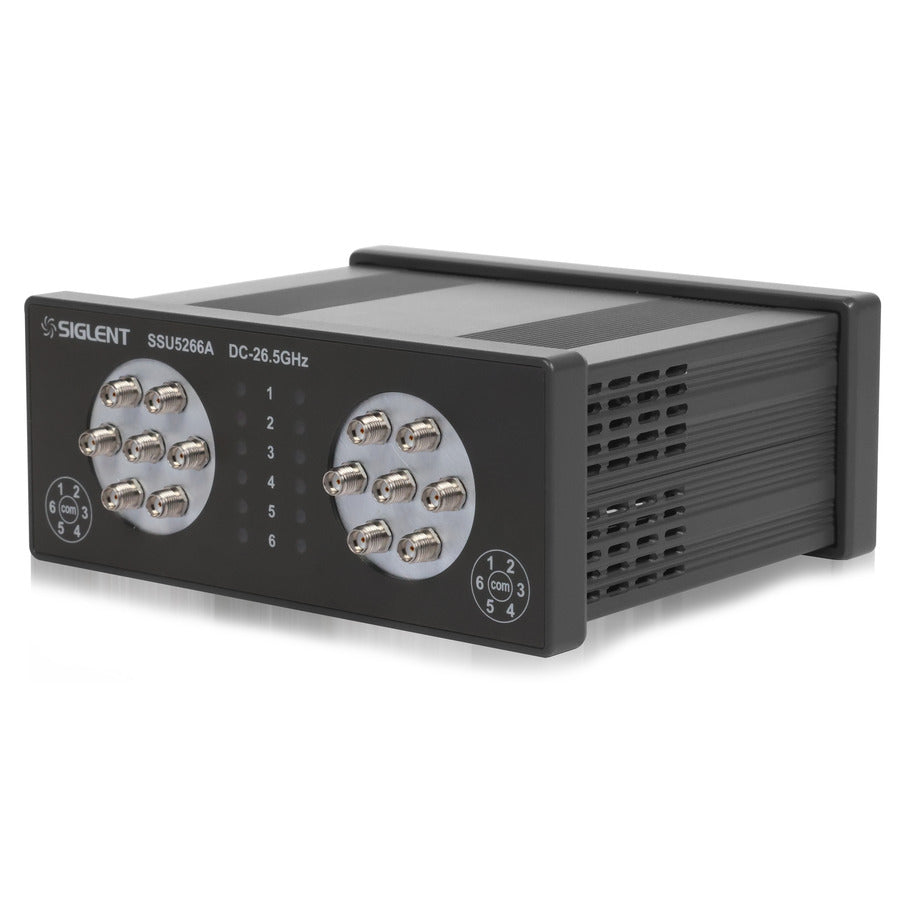

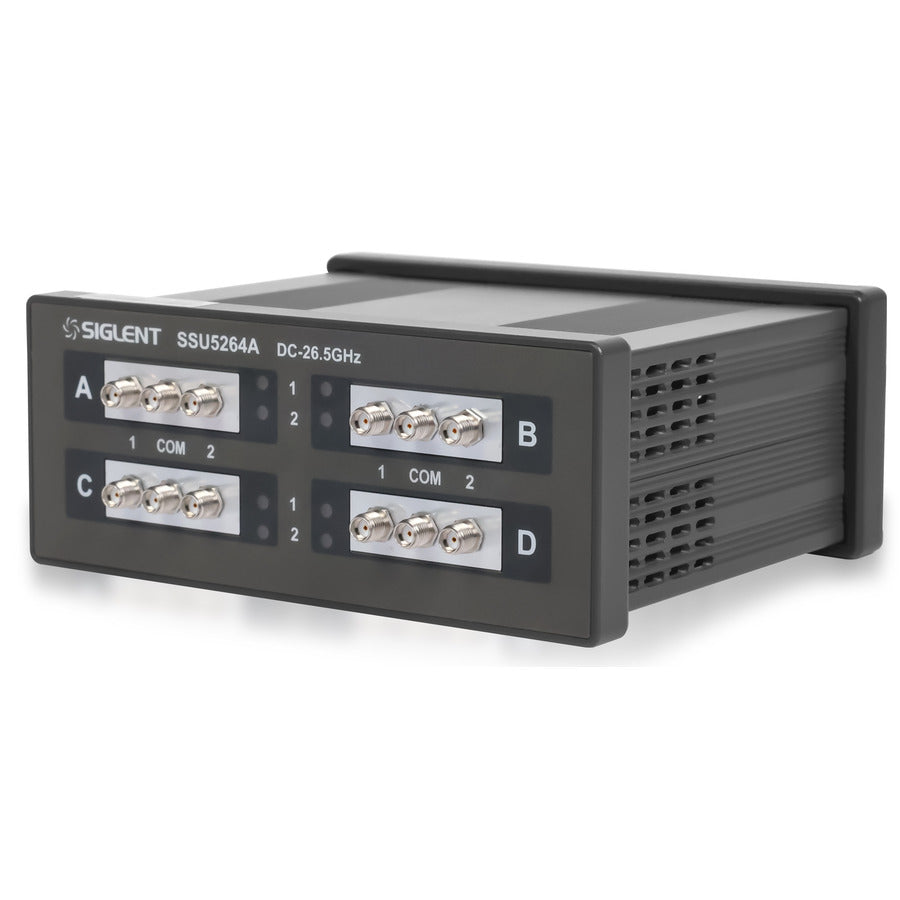

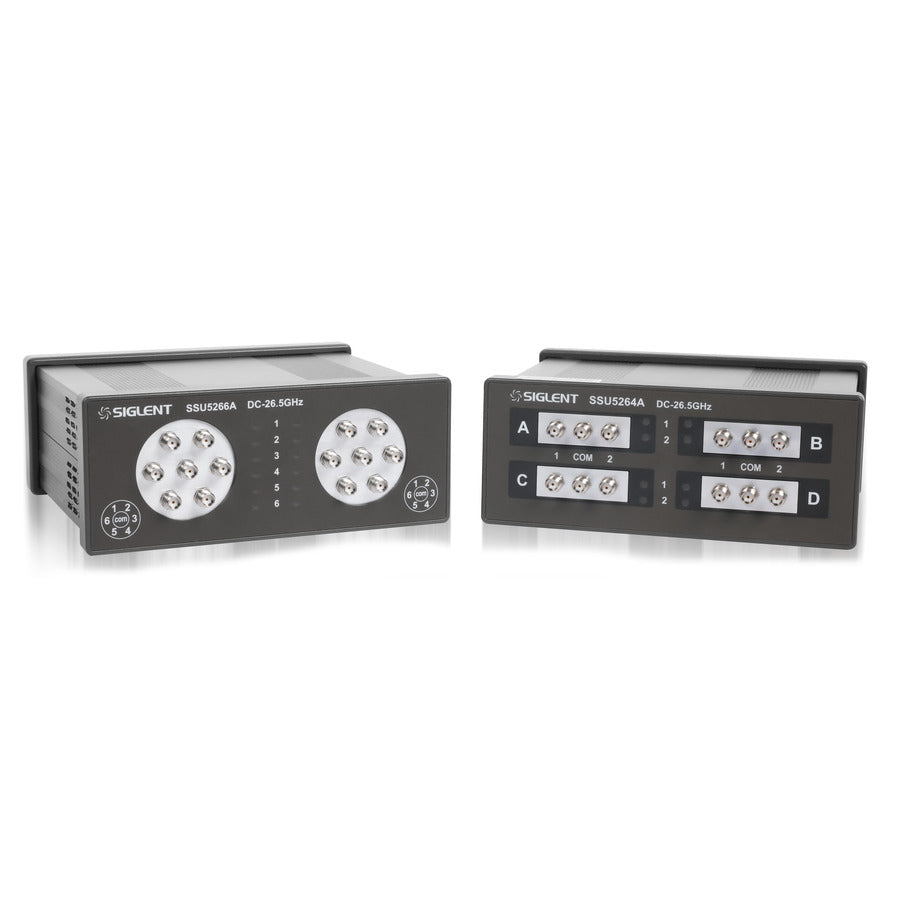

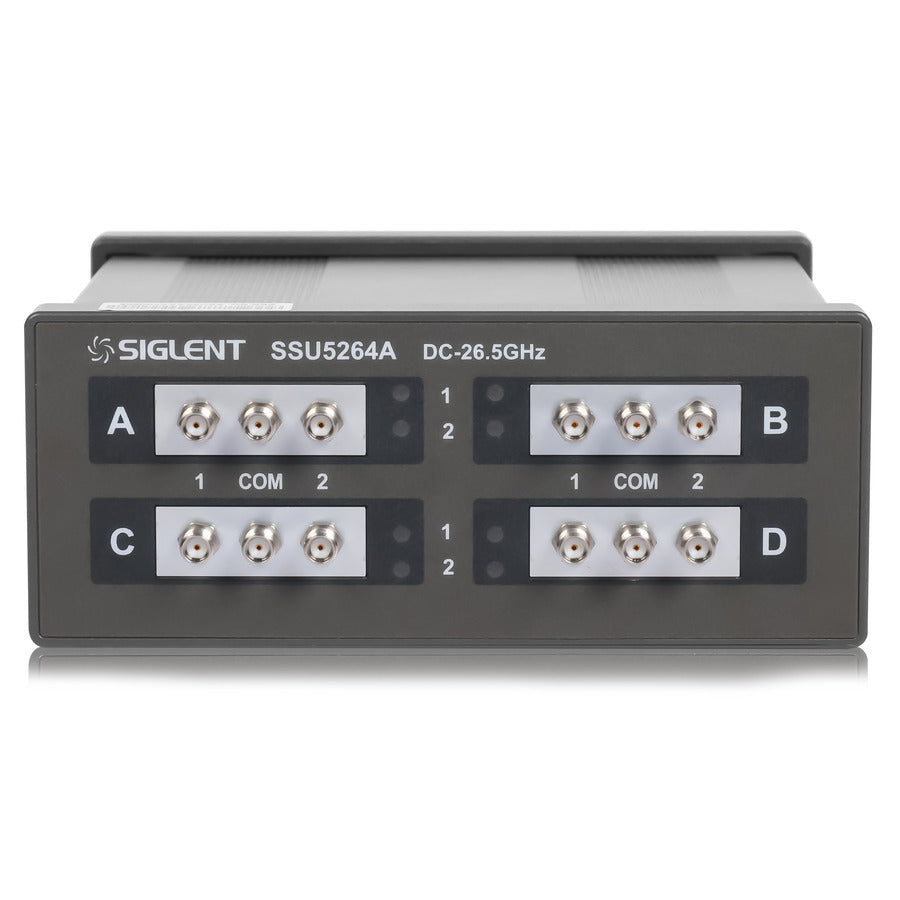

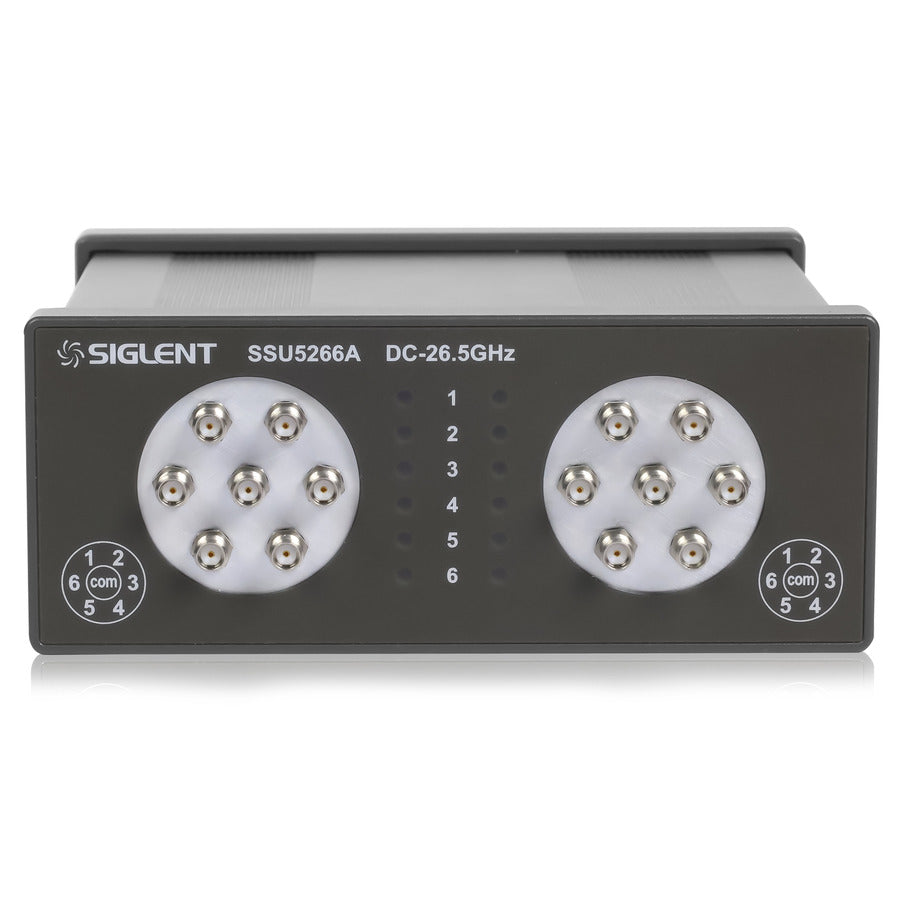

Models with up to four independent mechanical switches are available. Switch-type options include single-pole double-throw and single-pole six-throw. SMA or 2.4mm connectors are employed depending on the model’s maximum frequency range. TTL control is supported.
