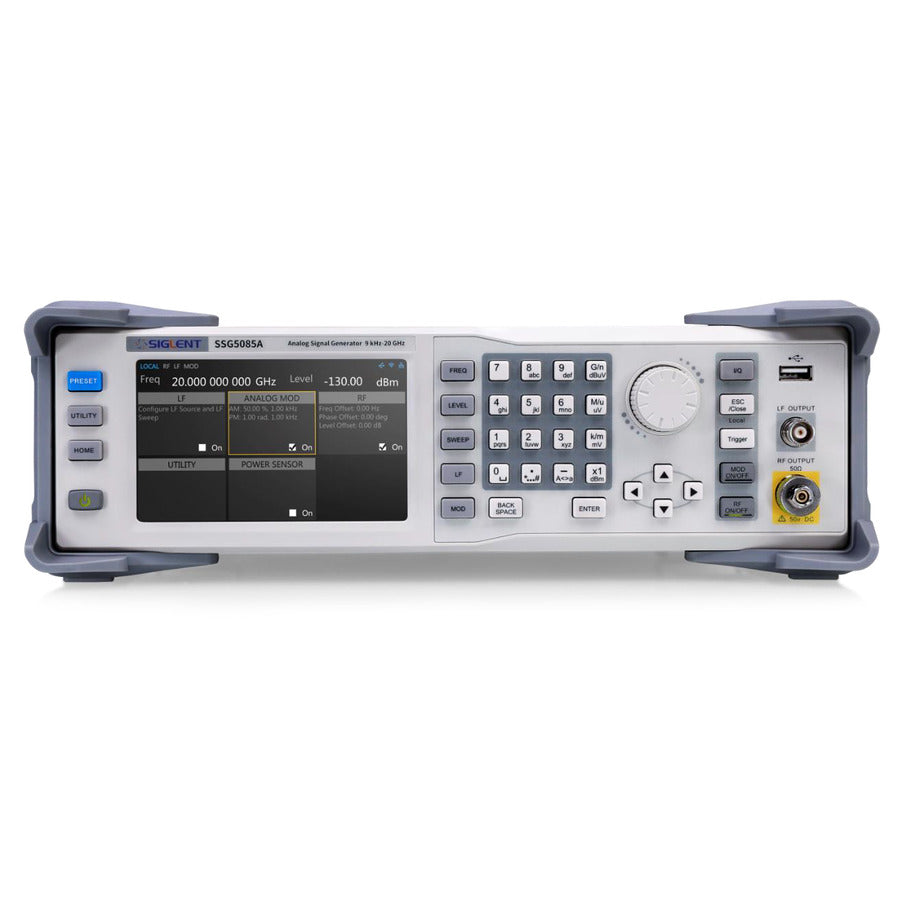

SSG5085A RF Signal Generator
Highlights:
- Single Channel
- Frequency range: 9 kHz - 20 GHz
- 0.001 Hz frequency setting resolution
- Level setting range: -130 dBm ~ 25 dBm (with option SSG5080A-LP)
- Phase Noise: -120 dBc / Hz at 1 GHz, 20 kHz offset (typ.)

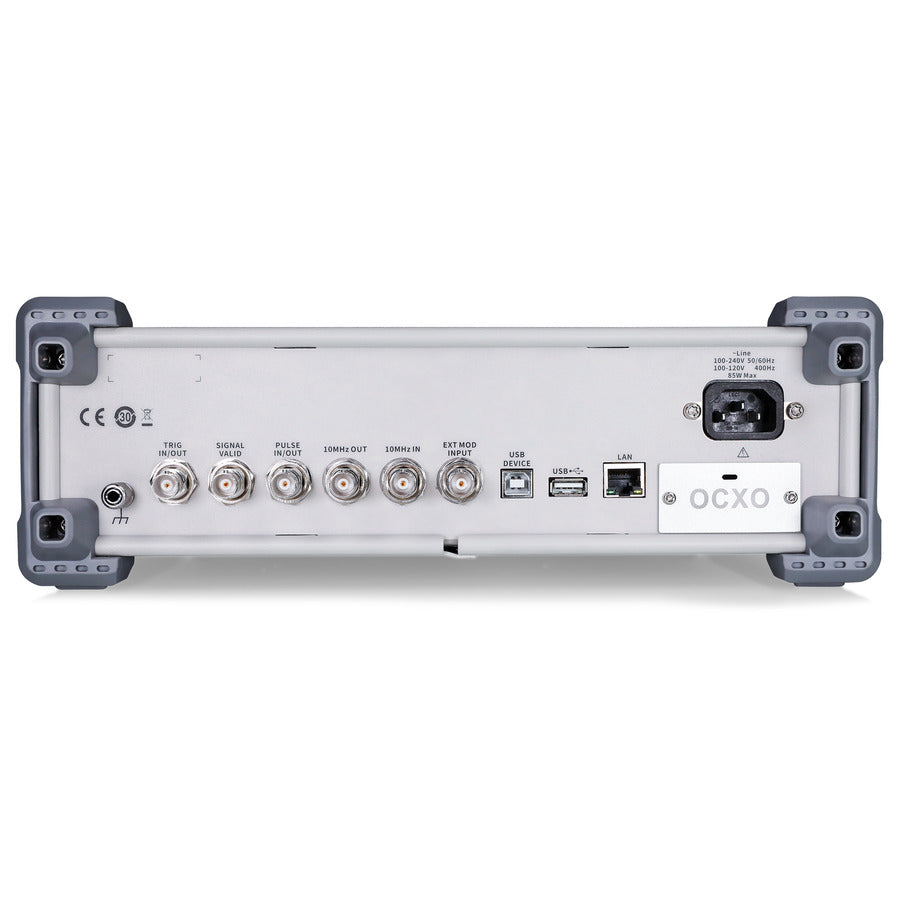

- Includes OCXO reference hardware module for high-precision and high stability signal output
- AM, FM, PM analog modulation with internal, external or Int+Ext source
- Pulse modulation with option SSG5080A-PU
- Single pulse, double pulse and pulse train generator (option SSG5080A-PT)
- Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet)
- 110dB attenuator module option (SSG5080A-LP) must be installed at factory
- Display 5-inch capacitance touch screen, RGB (800*480)
Standard configurations: Quick start, USB cable, calibration certificate, and power cord.
The Siglent SSG5000A microwave signal generator supports AM/FM/PM modulation, and pulse modulation (option) and features a pulse train generator (option), power meter control, and much more. It also includes an OCXO reference hardware module to ensure high precision, and high stability signal output. Applications include communications, aerospace, national defense, R&D, and many other fields.
