Siglent SSG5083A RF Signal Generator, Single Channel, 13.6GHz, OCXO, SSG5000A Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.

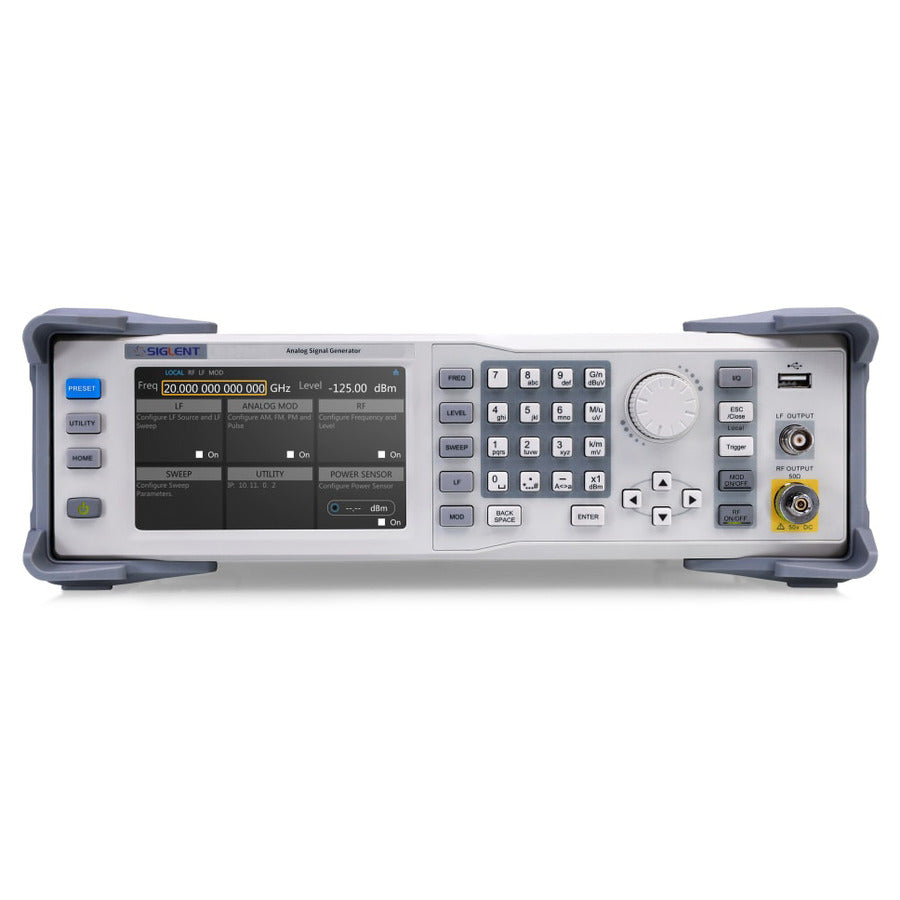

SSG5083A RF Signal Generator
Highlights:
- Single Channel
- Frequency range: 9 kHz - 13.6 GHz (upgradable to 20 GHz with option SSG5080A-F85)
- 0.001 Hz frequency setting resolution
- Level setting range: -130 dBm ~ 25 dBm (with option SSG5080A-LP)
- Phase Noise: -120 dBc / Hz at 1 GHz, 20 kHz offset (typ.)
- Includes OCXO reference hardware module for high-precision and high stability signal output
- Display 5-inch capacitance touch screen, RGB (800*480)
Standard configurations: Quick start, USB cable, calibration certificate, and power cord.
The Siglent SSG5000A microwave signal generator supports AM/FM/PM modulation, and pulse modulation (option) and features a pulse train generator (option), power meter control, and much more. It also includes an OCXO reference hardware module to ensure high precision, and high stability signal output. Applications include communications, aerospace, national defense, R&D, and many other fields.
