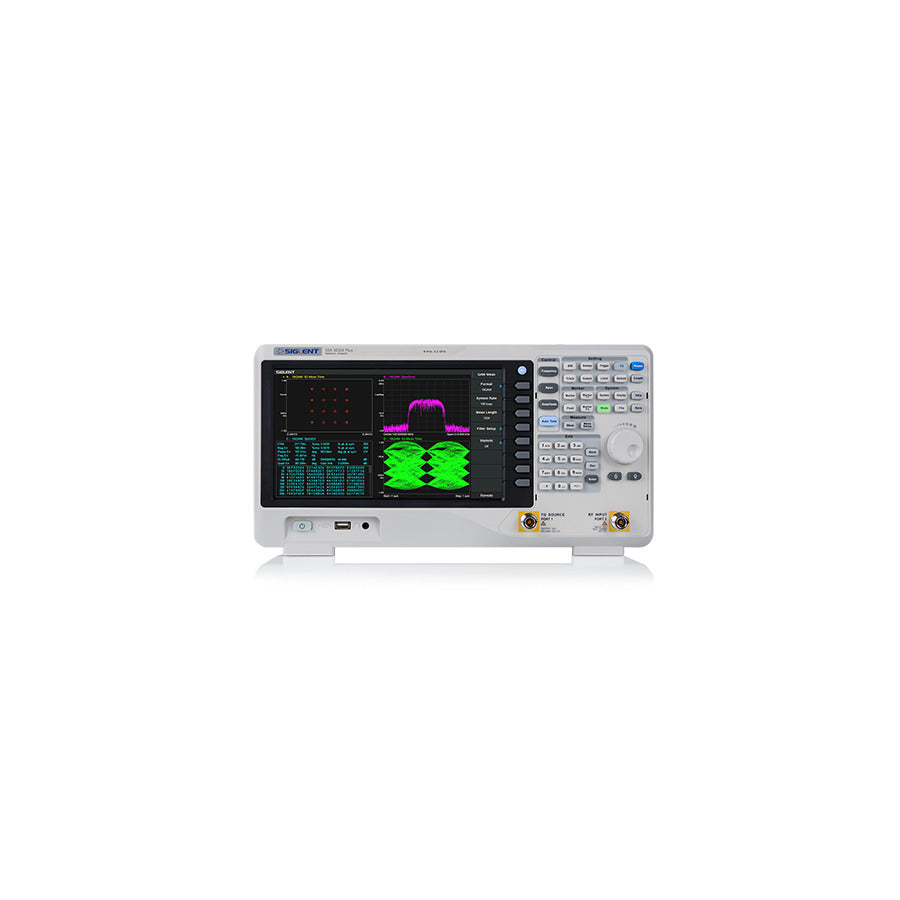

Siglent SSA3075X Plus Spectrum Analyzer, 9KHz to 7.5GHz, RBW 1Hz to 3MHz, 10.1" TS, SSA3000X+ Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SSA3075X Plus Series Spectrum Analyzers
Features:
- 9kHz to 7.5GHz Frequency range
- 1Hz to 3MHz Resolution bandwidth
- < -98 dBc/Hz Phase noise
- < 0.7 dB Total amplitude accuracy
- -165 dBm/Hz DANL
- +14 dBm Third order intercept
- LAN, USB Device, USB Host interfaces
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
- 10.1 in Multi-Touch Screen, Mouse and Keyboard supported
Standard Accessories:
- Quick Start -1
- USB Cable -1
- Power Cord -1
The Siglent SSA3000X Plus Series spectrum analyzers are powerful and flexible tools for RF spectrum and signal analysis with a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
Applications include broadcast monitoring/evaluation, site surveying, S parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
Optional Series Features:
- Analog and Digital Signal Modulation Analysis Mode
- Reflection Measurement Kit
- EMI Measurement Mode
- Advanced Measurement Kit
