Siglent SP5050A Passive Probe, 10X Atten, 12pf, 10Mohm, 500MHz, CAT2, 300Vrms, 130cm Cable
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SP5050A Passive Probe
Features and Specifications
- Attenuation Rate: 10X
- Bandwidth: 500 MHz
- Input Capacitance: 12 pf
- Input Impedance: 10 Megohm
- Maximum input: 300Vrms CATII
- Operating Temperature: 0-50 degrees C
- Cable Length: 130cm
- Auto-Sense feature
The Siglent SP5050A is a passive probe designed for use with oscilloscopes. It features a 500 MHz bandwidth, which makes it suitable for a wide range of high-frequency measurements. The probe has a 10:1 attenuation ratio, ensuring accurate signal representation while minimizing the load on the circuit under test. It also includes a compensation range of 12-22 pF, allowing for precise adjustments to match the oscilloscope's input capacitance. Additional features of the probe are a finger guard, compensation trimmer for adjustment to the 10X mode along with a BNC connector and BNC adapter. The SP5050A is a valuable tool for both professional and educational applications.

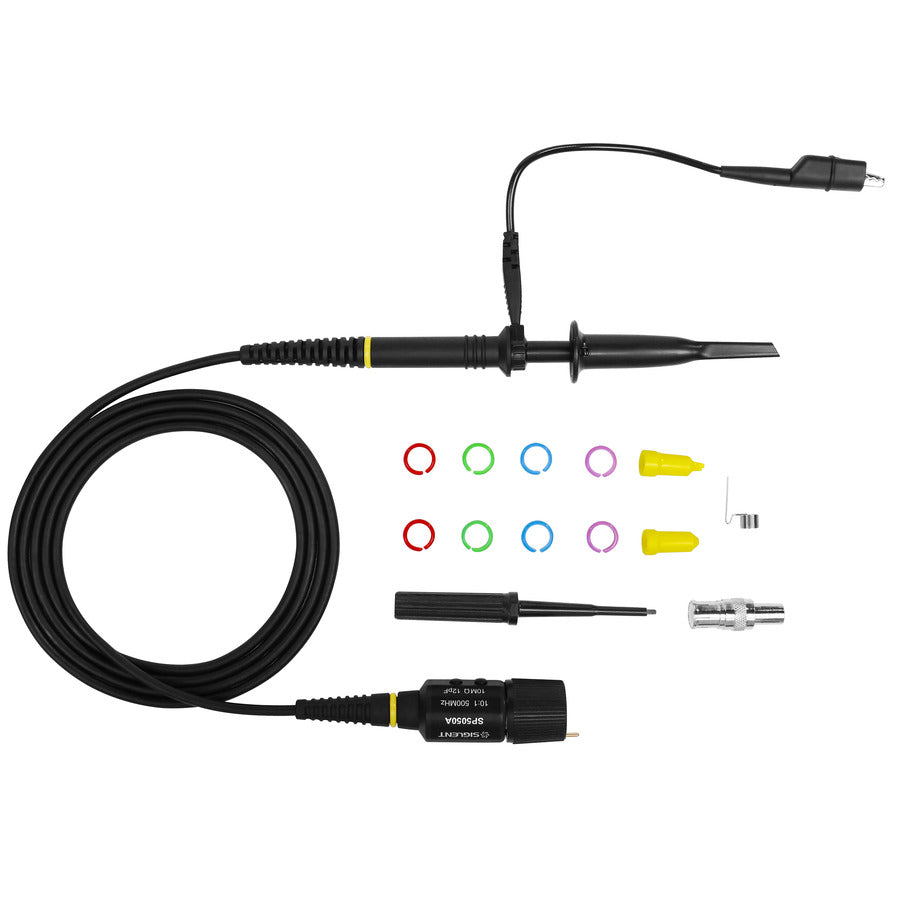

What's in the Box
- SP5050A Passive Probe
- Ground lead
- Hook tip
- Adjustment tool
- Ground spring
- Locating sleeve
- Marker rings
